1. Introduction
The CLEAN REMOTE CR3BCB is a durable, spillproof television remote control designed for ease of use. Its ergonomic design and simplified button layout make it ideal for controlling basic TV functions. This manual provides instructions for setting up, operating, maintaining, and troubleshooting your CR3BCB remote control.

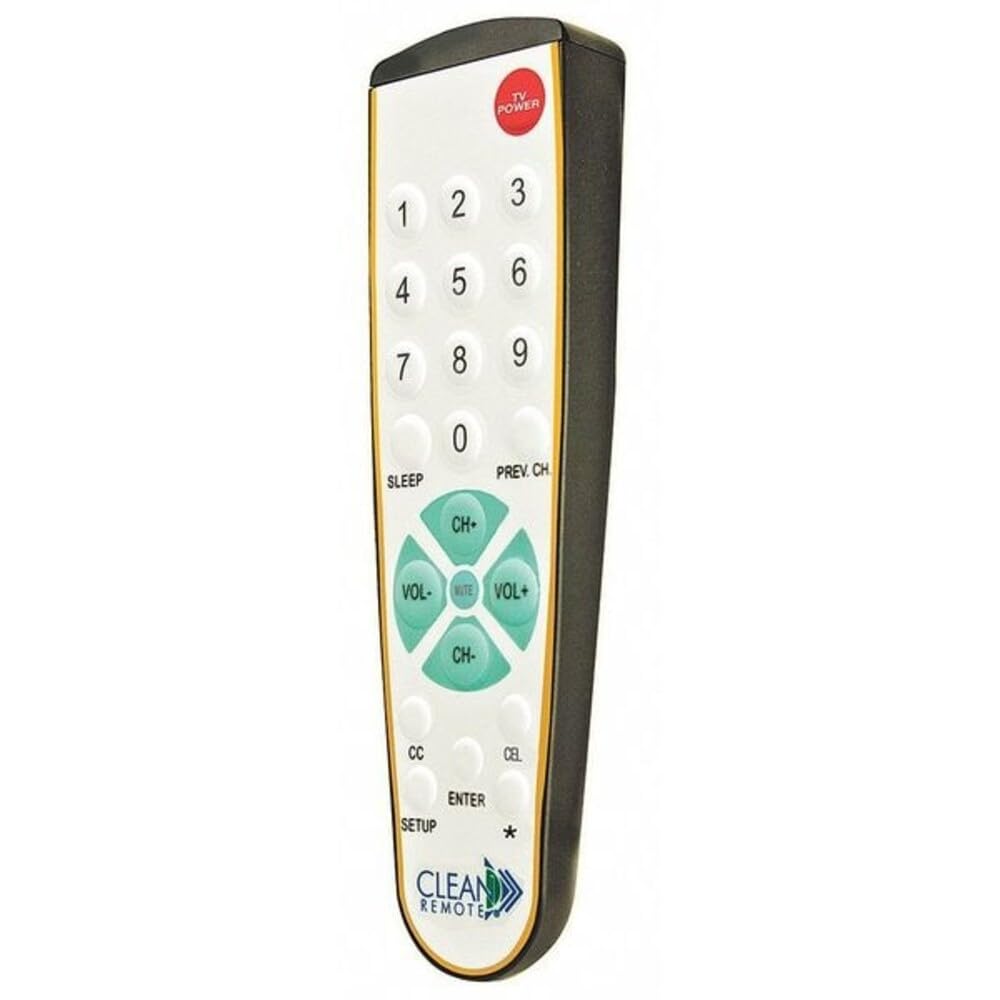

Front view of the CLEAN REMOTE CR3BCB, showing the numerical keypad, channel and volume controls, and power button.
2. Setup
2.1. Battery Installation
- Locate the battery compartment on the back of the remote control.
- Slide the battery cover downwards and remove it.
- Insert two (2) AAA alkaline batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
- Replace the battery cover by sliding it back into place until it clicks securely.
2.2. Programming the Remote Control
The CLEAN REMOTE CR3BCB is a universal remote that can be programmed to control most televisions. Follow these general steps for programming:
- Turn on the television you wish to control.
- Press and hold the SETUP button on the remote until the indicator light (usually near the POWER button) illuminates.
- While holding the SETUP button, enter the 3-digit code for your TV brand. (Refer to the included code list, if available, or try common codes for your TV brand).
- If the indicator light turns off, the code has been accepted. Release the SETUP button.
- Test the remote by pressing the POWER button. If the TV turns off, the remote is programmed.
- If the TV does not respond, repeat steps 2-5 with a different code for your TV brand.
Auto Code Search (if direct code fails):
- Turn on the television.
- Press and hold the SETUP button until the indicator light illuminates.
- Press the CH+ (Channel Up) button repeatedly, slowly, until the TV turns off.
- Once the TV turns off, immediately press the SETUP button again to lock in the code.
- Test the remote's functions.
3. Operating Instructions
The CLEAN REMOTE CR3BCB features a simplified layout for common television functions:
- POWER: Turns the television on or off.
- Number Pad (0-9): Directly enter channel numbers.
- CH+ / CH-: Changes the television channel up or down.
- VOL+ / VOL-: Increases or decreases the television volume.
- MUTE: Silences or restores the television audio.
- SLEEP: Activates the TV's sleep timer function (if supported by the TV). Pressing repeatedly may cycle through sleep timer options.
- PREV CH: Returns to the previously viewed channel.
- CC (Closed Caption): Toggles closed captions on or off (if supported by the TV broadcast/content).
- TV: Switches the remote's control mode to TV (if it was previously set to control a cable box, though this model is primarily for TV).
- ENTER: Confirms selections or completes channel entry.
4. Maintenance
4.1. Cleaning
The CLEAN REMOTE CR3BCB features a spillproof design, making it easy to clean. To clean the remote:
- Wipe the surface with a soft, damp cloth.
- For stubborn stains, a mild soap solution can be used.
- Ensure no excessive liquid enters the battery compartment.
- Do not use abrasive cleaners or solvents, as these may damage the remote's finish or buttons.
4.2. Battery Replacement
Replace batteries when the remote's performance degrades or the indicator light does not illuminate when a button is pressed. Follow the battery installation steps in Section 2.1.
5. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Remote not working / TV not responding | Dead or incorrectly installed batteries. Remote not programmed correctly. Obstruction between remote and TV. | Check battery orientation and replace if necessary. Re-program the remote (see Section 2.2). Ensure a clear line of sight to the TV's IR sensor. |
| Limited functionality after programming | Incorrect TV code used. | Try other codes for your TV brand or use the auto code search feature (see Section 2.2). Some advanced TV functions may not be supported by this simplified remote. |
| Buttons are sticky or unresponsive | Dirt or residue under buttons. | Clean the remote thoroughly (see Section 4.1). |
6. Specifications
- Brand: CLEAN REMOTE
- Model Name/Number: CR3BCB
- Type: Television Remote Control, Spillproof
- Material: Plastic
- Color: Black Case/White Keypad with Gold Trim
- Finish: Micro-Texture Case
- Dimensions (L x W x H): 7.93" x 2.5" x 1.31" (7-15/16" x 2-1/2" x 1-5/16")
- Special Feature: Ergonomic
- Max Number of Supported Devices: 1
- Compatible Devices: Television
- Connectivity Technology: Infrared
- Button Quantity: 25
- Controller Type: Button Control
- Maximum Range: 10 Meters
- Battery Type: Alkaline (2x AAA, not included)
- UPC: 709317695991
- Country of Origin: China
7. Warranty Information
Specific warranty details for the CLEAN REMOTE CR3BCB are not provided in this manual. For information regarding warranty coverage, terms, and conditions, please refer to the product packaging or contact CLEAN REMOTE customer support directly.
8. Customer Support
If you encounter issues not covered in this manual or require further assistance, please contact CLEAN REMOTE customer support. Contact information can typically be found on the product packaging or the official CLEAN REMOTE website.
