1. Product Overview
The Hardware Resources RO18-WB is a preassembled rollout shelf system designed to enhance organization within 18-inch cabinet openings. This system features soft-close undermount slides, which prevent slamming and conceal hardware for a clean appearance. The wood construction is sealed with a UV coating, offering protection against natural wear. Its pre-assembled design facilitates quick and straightforward installation.
This rollout shelf is ideal for kitchen or bathroom cabinet organization, providing easy access to stored items.

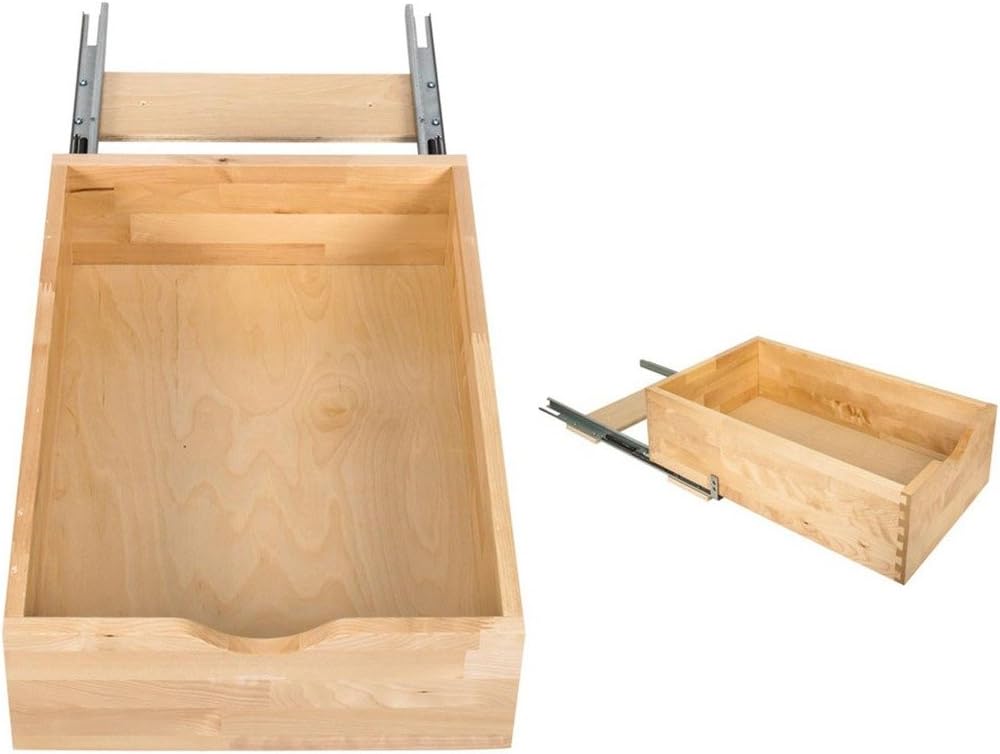

Image 1: Components of the Hardware Resources RO18-WB Preassembled Rollout Shelf System, showing the wooden drawer and the attached soft-close slides.
2. Setup and Installation
The RO18-WB rollout shelf system is pre-assembled, simplifying the installation process. It is designed to mount directly to the bottom of your cabinet.
Required Tools (Not Included):
- Measuring Tape
- Pencil
- Drill with appropriate drill bit
- Screwdriver (Phillips head recommended)
Installation Steps:
- Prepare Cabinet: Ensure the cabinet opening is at least 18 inches wide and the cabinet bottom is clean and clear of obstructions.
- Position Shelf: Place the preassembled rollout shelf system inside the cabinet at the desired depth. Ensure it is centered within the cabinet opening.
- Mark Mounting Holes: Using a pencil, mark the locations for the mounting screws through the pre-drilled holes in the slide mechanisms on the bottom of the shelf system.
- Pre-drill Holes (Optional but Recommended): Carefully pre-drill pilot holes at the marked locations to prevent wood splitting. Use a drill bit slightly smaller than the mounting screws.
- Secure Shelf: Align the shelf system with the pre-drilled holes and secure it to the cabinet bottom using appropriate screws (typically provided with the unit). Ensure all screws are tightened securely.
- Test Functionality: Gently pull the shelf out and push it back in to verify smooth operation and proper soft-close functionality.
3. Operating Instructions
The Hardware Resources RO18-WB rollout shelf is designed for simple and efficient operation.
- To Open: Gently pull the front of the shelf towards you. The smooth-gliding slides will extend the shelf fully from the cabinet.
- To Close: Push the shelf back into the cabinet. As it approaches the closed position, the soft-close mechanism will engage, slowly and quietly pulling the shelf fully into the cabinet without slamming.
- Loading Capacity: Distribute items evenly on the shelf. Avoid overloading to ensure optimal performance and longevity of the slides.
Image 2: The Hardware Resources RO18-WB Rollout Shelf system installed in a kitchen base cabinet, demonstrating its use for organizing dishes and bowls.
4. Maintenance and Care
Proper maintenance will ensure the longevity and smooth operation of your rollout shelf system.
- Cleaning: Wipe the wooden surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals, as these can damage the UV coating. For stubborn spots, a mild soap solution can be used, followed by drying thoroughly.
- Slide Care: The soft-close undermount slides are generally maintenance-free. If you notice any stiffness or unusual noise, ensure no debris is obstructing the slide mechanism. Do not apply oil or grease to the slides unless specifically recommended by the manufacturer, as this can attract dust and hinder performance.
- Inspection: Periodically check all mounting screws to ensure they remain tight. Re-tighten if necessary.
5. Troubleshooting
If you encounter any issues with your rollout shelf, refer to the following common problems and solutions:
- Shelf not sliding smoothly:
- Check for obstructions in the slide mechanism.
- Ensure the shelf is not overloaded or unevenly loaded.
- Verify that the mounting screws are securely tightened and the shelf is level.
- Soft-close mechanism not engaging:
- Ensure the shelf is pushed firmly towards the closed position.
- Check for any debris or damage to the soft-close components of the slides.
- Confirm the shelf is properly aligned within the cabinet.
- Shelf feels wobbly:
- Re-tighten all mounting screws securing the shelf to the cabinet bottom.
- Ensure the cabinet itself is stable and level.
If problems persist after attempting these solutions, please contact Hardware Resources customer support.
6. Specifications
| Feature | Detail |
|---|---|
| Model Number | RO18-WB |
| Brand | Hardware Resources |
| Material | Wood |
| Finish Type | UV Coated |
| Special Feature | Soft Close Slides |
| Product Dimensions (D x W x H) | 21.25"D x 16.25"W x 7"H |
| Minimum Opening Width | 18" |
| Product Weight | 12 lbs |
| Assembly Required | No (Pre-assembled) |
| UPC | 843512056093 |
7. Warranty and Support
The Hardware Resources RO18-WB Preassembled Rollout Shelf System comes with a limited lifetime warranty. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical assistance, or further inquiries, please contact Hardware Resources customer support directly. Refer to the official Hardware Resources website or product packaging for the most current contact information.
When contacting support, please have your product model number (RO18-WB) and proof of purchase available.
