Introduction
This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your Moen Belfield 7240ORB Traditional One Handle High Arc Kitchen Faucet. Please read this manual thoroughly before beginning installation or use to ensure proper function and longevity of your product. Keep this manual for future reference.
Product Overview
The Moen Belfield 7240ORB kitchen faucet features a traditional design with an Oil Rubbed Bronze finish, offering a classic aesthetic. It is designed for ease of use and durability.

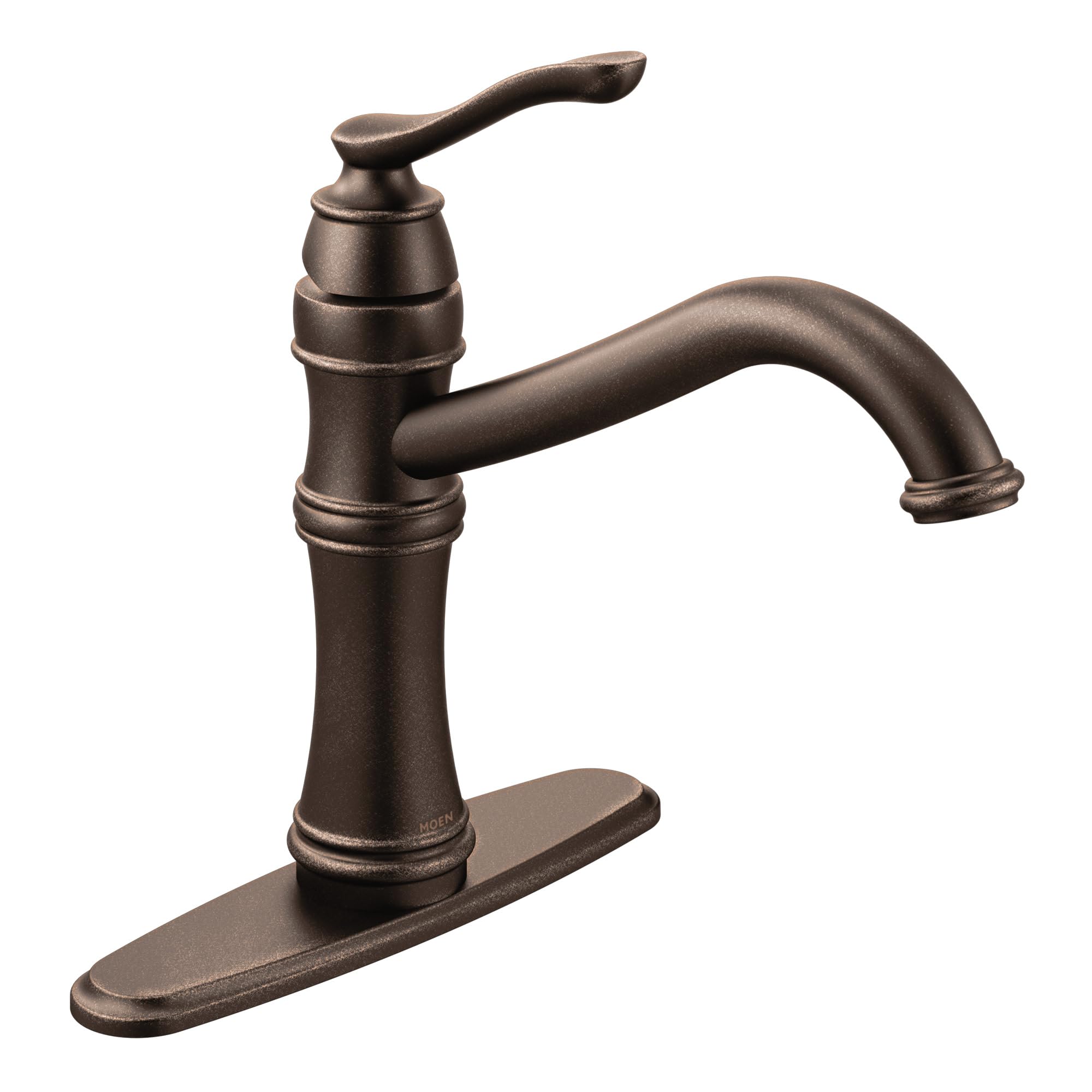

Image: Moen Belfield 7240ORB Kitchen Faucet, showcasing its traditional design and Oil Rubbed Bronze finish.
Key Features:
- Oil Rubbed Bronze Finish: A rich, dark brown finish with light and dark accents.
- Single Handle Operation: Allows for easy adjustment of water temperature and pressure.
- Flexible Installation: Designed for installation through 1 or 3 holes, with an optional deckplate included.
- ADA Compliant: Meets Americans with Disabilities Act specifications for accessibility.
- Certified Safe: Complies with Federal Safe Drinking Water Act and NSF 61 standards.
- Durable Construction: Backed by Moen’s Limited Lifetime Warranty.
Safety Information
Always turn off the main water supply before installing or servicing the faucet. Wear appropriate personal protective equipment, such as safety glasses, during installation. If you are unsure about any part of the installation process, consult a qualified plumber. Ensure all connections are secure to prevent leaks.
Installation
The Moen Belfield faucet is designed for versatile installation, accommodating either a 1-hole or 3-hole sink configuration. An optional deckplate is included for 3-hole installations.
Image: Diagram illustrating how the faucet fits both one-hole and three-hole sink configurations.
Pre-Installation Steps:
- Turn off the water supply at the main shut-off valves.
- Clear the area under the sink for easy access.
- Remove your old faucet, if applicable.
Faucet Installation:
- If using the deckplate for a 3-hole installation, place it over the sink holes with the gasket underneath.
- Insert the faucet body through the center hole of the sink or deckplate.
- From underneath the sink, secure the faucet with the provided mounting hardware, ensuring it is tightened firmly but without overtightening.
- Connect the hot and cold water supply lines to the corresponding inlets on the faucet. The connection size is 3/8 inch.
- Ensure all connections are hand-tightened, then use a wrench for an additional quarter turn. Avoid overtightening.
- Turn on the main water supply and check for leaks.
Image: Detailed view of the Moen Belfield faucet with key dimensions including spout reach (9.38 inches) and height (12.13 inches), maximum deck thickness (2.25 inches), connection size (3/8 inch), and indicating 1 or 3 hole installation with optional deck plate.
Operation
The Moen Belfield faucet features a single handle for controlling both water flow and temperature.
Water Flow and Temperature Control:
- To turn the water on, lift the handle.
- To increase water flow, lift the handle further.
- To decrease water flow, lower the handle.
- To adjust temperature, move the handle left for hot water and right for cold water.
- The faucet includes an adjustable hot limit stop, which can be set to prevent accidental scalding. Refer to the detailed diagram in the full product manual for adjustment instructions.
Maintenance
Regular cleaning and proper care will help maintain the finish and performance of your Moen faucet.
Cleaning Instructions:
- Clean the faucet with a soft, damp cloth.
- Avoid using abrasive cleaners, harsh chemicals, or polishes, as these can damage the finish.
- For stubborn spots, a mild soap and water solution can be used, followed by rinsing and drying.
Cartridge Replacement:
If you experience issues such as persistent dripping, difficulty adjusting temperature, or a loose handle, the internal cartridge may need replacement. Moen provides replacement cartridges under warranty. Contact Moen customer support for assistance and replacement parts.
Troubleshooting
Before contacting customer service, review the common issues and solutions below.
| Problem | Possible Cause | Solution |
|---|---|---|
| Faucet leaks from spout | Worn cartridge or O-rings | Replace the cartridge. Ensure O-rings are properly seated. |
| Low water flow | Aerator clogged with debris; partially closed shut-off valves | Clean or replace the aerator. Ensure hot and cold water supply valves are fully open. |
| Water temperature inconsistent | Cartridge issue; hot limit stop setting | Replace the cartridge. Adjust the hot limit stop if necessary. |
| Loose handle | Mounting screw loose; worn cartridge | Tighten the handle screw. If problem persists, replace the cartridge. |
Specifications
- Model Number: 7240ORB
- Brand: Moen
- Series: Belfield
- Color: Oil Rubbed Bronze
- Material: Metal
- Mounting Type: Deck Mount
- Hole Count: 1 or 3 (with optional deckplate)
- Number of Handles: 1
- Spout Design: High Arc
- Spout Height: 12.22 Inches
- Spout Reach: 9.4 Inches
- Maximum Flow Rate: 1.5 Gallons Per Minute
- Item Weight: 4.61 Pounds
- Product Dimensions: 12.38 x 21.13 x 12.13 inches
- Special Feature: Adjustable Hot Limit
- UPC: 026508259887
Warranty and Support
Your Moen Belfield 7240ORB Kitchen Faucet is backed by Moen's Limited Lifetime Warranty. This warranty covers defects in material and manufacturing workmanship for the original consumer purchaser. For detailed warranty information, to register your product, or for technical support and replacement parts, please visit the official Moen website or contact Moen customer service directly.
Moen Incorporated is committed to providing quality products and support. For further assistance, please refer to the contact information provided on the Moen official website.
