Duronic HV32 WE Electric Fan Heater User Manual

1. Important Safety Information

Please read all safety instructions carefully before using the Duronic HV32 WE Electric Fan Heater. Keep this manual for future reference.

• Anti-Tip Safety: The appliance includes a safety switch at its base that automatically activates if the heater falls or tilts, stopping its operation. This feature enhances safety, especially in households with children or pets.
• Overheat Protection: The heater is equipped with overheat protection to prevent damage from excessive temperatures.
• Do Not Cover: Never cover the appliance during operation. Covering the heater can lead to overheating and potential fire hazards.

2. Product Overview

The Duronic HV32 WE is a compact and portable electric fan heater designed for efficient heating and cooling of small spaces.

• Compact Design: Dimensions of 11.5 x 18.5 x 23.5 cm.

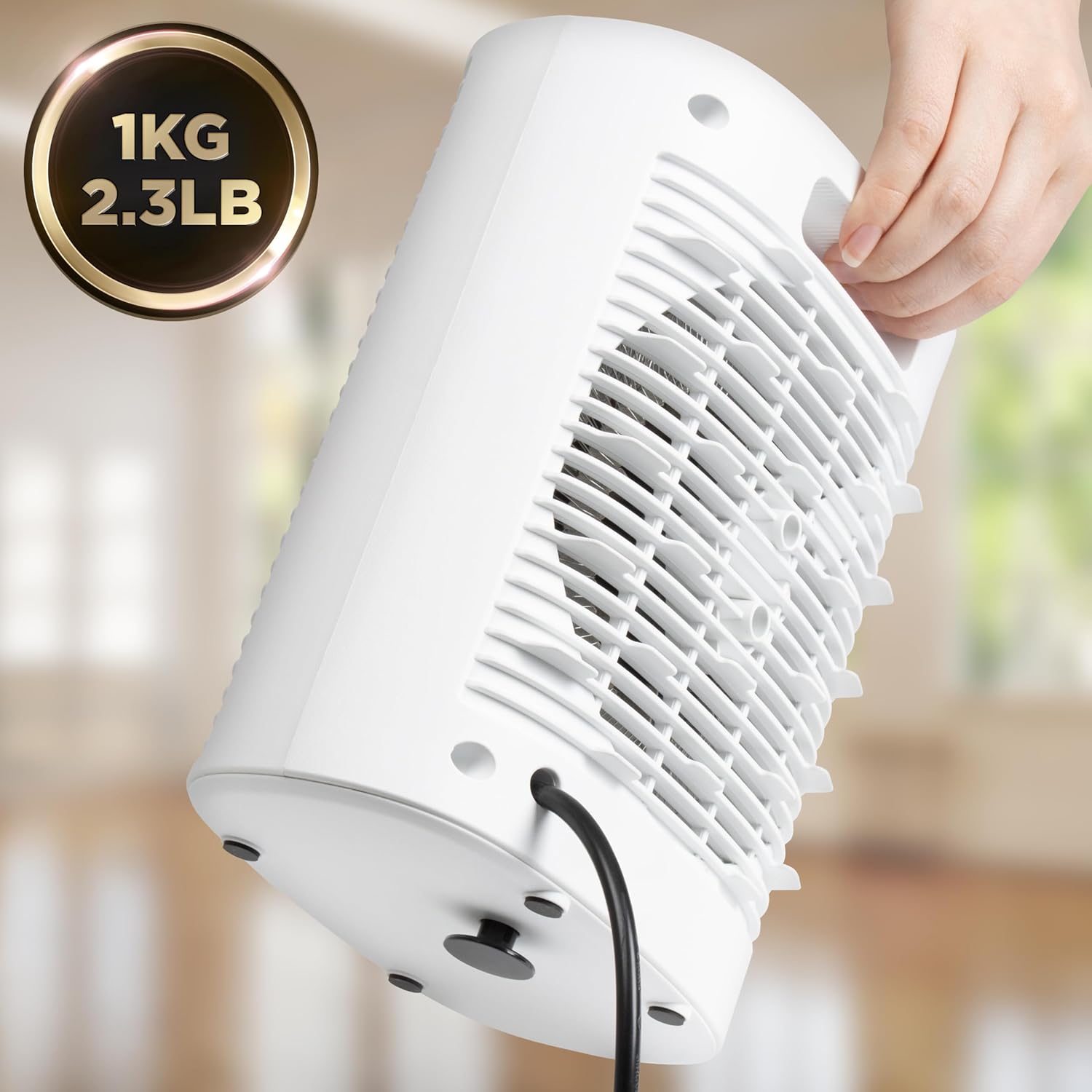

• Lightweight: Weighs approximately 1 kg, making it easy to move.
• Versatile Functionality: Provides both heating and fan-only modes.
• Integrated Handle: Features a handle for convenient portability.

3. Setup

Setting up your Duronic HV32 WE heater is straightforward:

1. Place the heater on a stable, flat surface, either on a desk or directly on the floor.
2. Ensure there is adequate clearance around the heater for proper airflow. Do not place it near curtains or other flammable materials.
3. Plug the 1.5 m power cable into a suitable electrical outlet (240 Volts).

4. Operating Instructions

The Duronic HV32 WE offers multiple operating modes and an adjustable thermostat for customized comfort.

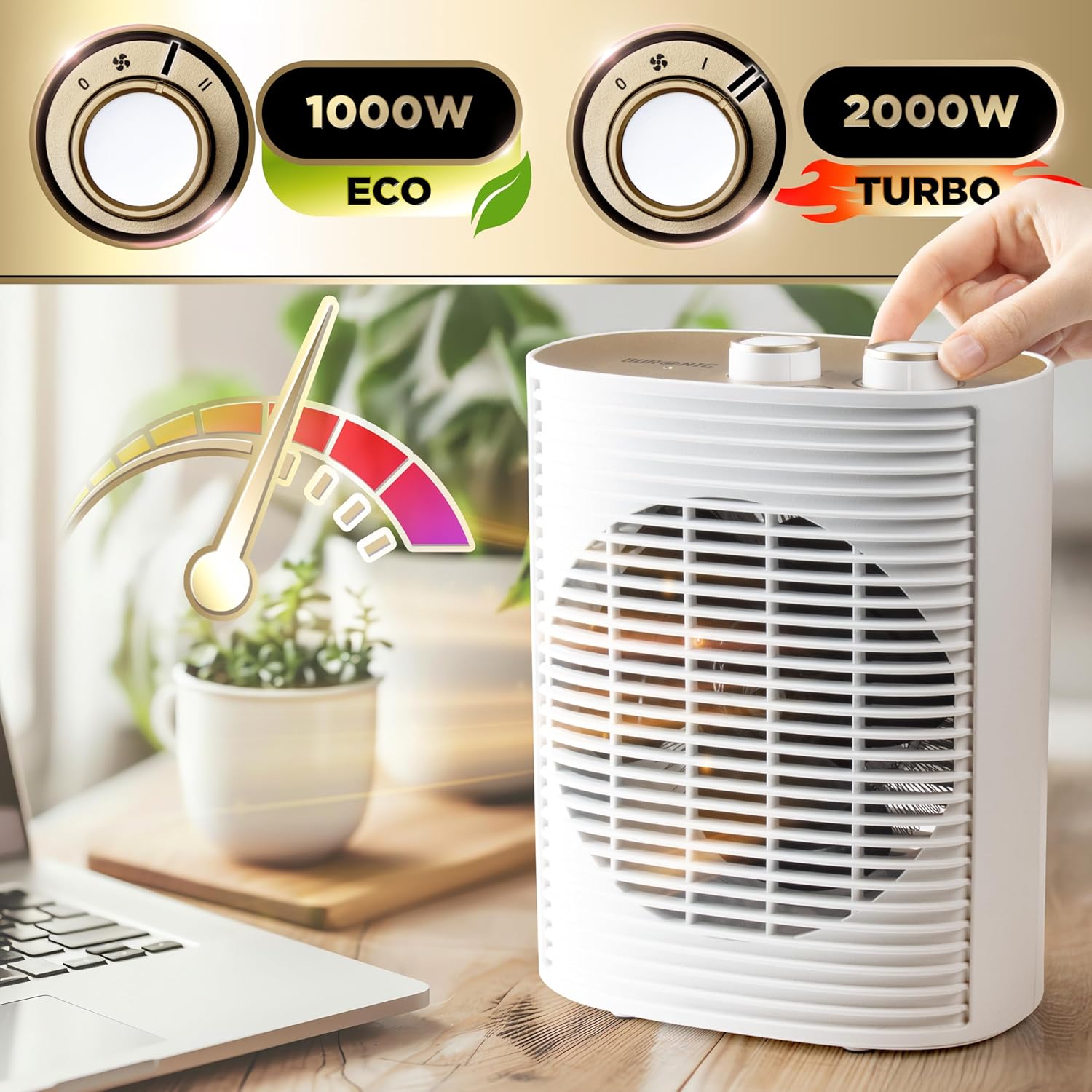

• Mode Selection: Use the mode dial to select between:
  • Fan Mode: For cool air circulation (indicated by a fan icon).
  • Eco Mode (1000W): For gentle and energy-efficient heating.
  • Turbo Mode (2000W): For powerful and rapid heating.
• Adjustable Thermostat: Use the thermostat dial to set your desired temperature. The heater will maintain this temperature by cycling on and off.

5. Maintenance

To ensure optimal performance and longevity of your Duronic HV32 WE heater, follow these maintenance guidelines:

• Cleaning: Regularly wipe the exterior of the heater with a soft, damp cloth. Do not use abrasive cleaners or allow water to enter the appliance.
• Storage: When not in use, store the heater in a cool, dry place, away from direct sunlight and moisture.
• Inspection: Periodically check the power cord and plug for any signs of damage. If damaged, discontinue use and contact customer support.

6. Troubleshooting

If you encounter any issues with your Duronic HV32 WE heater, refer to the following common troubleshooting steps:

• Heater Not Turning On: Ensure the power cord is securely plugged into a working outlet. Check if the anti-tip safety switch at the base has been activated (if the unit was tilted or knocked over).
• No Heat Output: Verify that the mode dial is set to either Eco (1000W) or Turbo (2000W) and that the thermostat is set to a higher temperature than the ambient room temperature.
• Unusual Odor: A slight odor may be present during the first few uses as manufacturing residues burn off. This is normal and should dissipate quickly. If a strong or persistent odor occurs, discontinue use and unplug the unit.
• Overheating: If the heater shuts off unexpectedly, it may have overheated. Unplug the unit, allow it to cool down for at least 30 minutes, and ensure there are no obstructions blocking the air inlets or outlets before restarting.

7. Specifications

8. Warranty and Support

For warranty information, product support, or to report any issues, please refer to the warranty card included with your purchase or visit the official Duronic website. Keep your proof of purchase for warranty claims.
