Timco BSK-9000 Rechargeable Electric Shaver and Nose/Ear Trimmer User Manual

1. Introduction

Thank you for choosing the Timco BSK-9000 Rechargeable Electric Shaver and Nose/Ear Trimmer. This manual provides essential information for the safe and effective use, maintenance, and care of your new grooming device. Please read these instructions thoroughly before first use and retain them for future reference.

Image 1: Timco BSK-9000 Electric Shaver and Nose/Ear Trimmer. The image displays the main electric shaver unit with three rotary heads and a separate, slender nose and ear trimmer.

2. Important Safety Information

WARNING: To reduce the risk of electric shock, injury, or damage to the appliance, always follow these basic safety precautions.

• Do not use this appliance near water, such as in a bathtub, shower, or sink, or while charging.
• Do not use the shaver on irritated, damaged, or broken skin to avoid further irritation or cuts.
• Always ensure the appliance is completely dry before connecting it to a power source for charging.
• Keep the appliance out of reach of children.
• Only use the charger provided with the appliance.
• Do not disassemble or attempt to repair the appliance yourself. Contact qualified service personnel.

3. Package Contents

Verify that all items are present in the package:

• 1 x Timco BSK-9000 Electric Shaver (with 3 independent floating heads)
• 1 x Pop-up Trimmer (integrated into the shaver)
• 1 x Nose and Ear Hair Trimmer (separate unit)
• 1 x Charging Cable
• 1 x Cleaning Brush
• 1 x Travel Case

Image 2: Timco BSK-9000 Package Contents. The image shows the product box alongside the electric shaver, nose/ear trimmer, and a small cleaning brush.

4. Product Features

• 3 Independent Floating Heads: Adapts to facial contours for a smooth shave.
• Pop-up Trimmer: For precise trimming of sideburns and moustaches.
• Nose and Ear Hair Trimmer: A separate, battery-operated unit for delicate areas.
• Rechargeable: The main shaver unit offers cordless convenience.
• Dry Shaving: Designed for dry use.
• Stainless Steel Blades: Durable and efficient cutting performance.

5. Setup

5.1 Charging the Electric Shaver

1. Ensure the shaver is turned off.
2. Connect the charging cable to the shaver's charging port.
3. Plug the other end of the charging cable into a suitable power outlet.
4. The 'CHARGE' indicator light on the shaver will illuminate, indicating that it is charging.
5. Allow approximately 8 hours for a full charge. A full charge provides up to 30 minutes of cordless use.
6. Do not charge the shaver for more than 24 hours.

5.2 Installing Battery in Nose and Ear Trimmer

1. Twist the bottom part of the nose and ear trimmer to open the battery compartment.
2. Insert one AA battery (not included), ensuring correct polarity (+/-).
3. Close the battery compartment by twisting the bottom part back into place.

Image 3: Timco Nose and Ear Trimmer. This image shows the separate nose and ear trimmer unit, with its cap removed, ready for battery insertion.

6. Operating Instructions

6.1 Using the Electric Shaver

1. Ensure your face is clean and dry.
2. Slide the ON/OFF switch to the 'ON' position to start the shaver.
3. Gently press the shaver heads against your skin and move the shaver in small, circular motions.
4. For best results, stretch your skin with your free hand to make the hairs stand upright.
5. After shaving, slide the ON/OFF switch to the 'OFF' position.

Important Note:

• The shaver is designed for regular shaving and is not ideal for long beards (several days' growth). For optimal performance, shave frequently.
• If your beard is longer than 1mm, it is recommended to trim it first with the pop-up trimmer or a separate beard trimmer before using the main shaver heads.

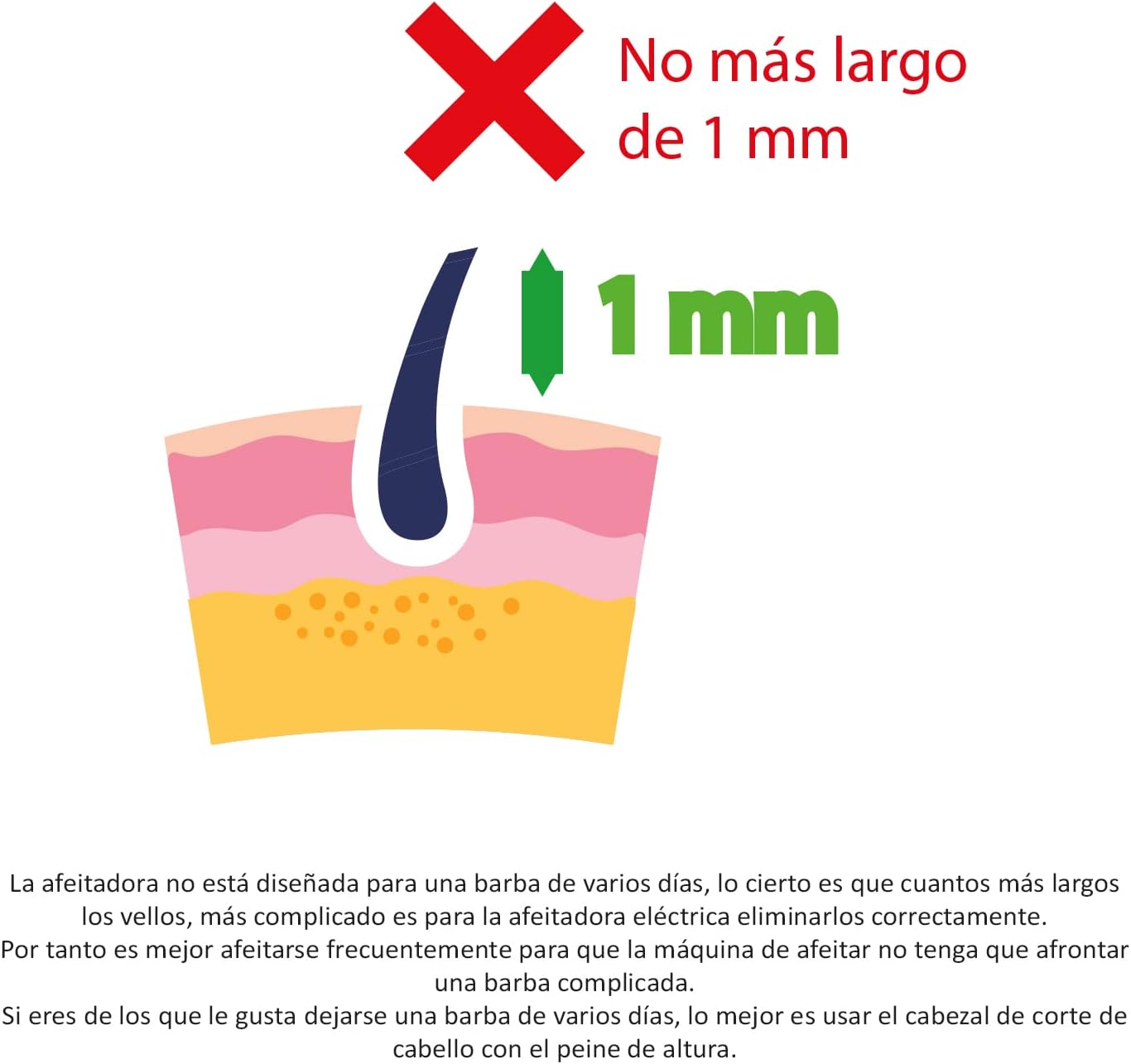

Image 4: Beard Length Warning. A graphic illustrating that the shaver is not suitable for hair longer than 1mm, emphasizing the need for frequent shaving.

6.2 Using the Pop-up Trimmer

1. Locate the pop-up trimmer switch on the back of the shaver.
2. Slide the switch upwards to activate the trimmer.
3. Use the trimmer to shape sideburns, moustaches, or to pre-trim longer hairs before shaving.
4. After use, slide the switch downwards to retract the trimmer.

Image 5: Timco Shaver Pop-up Trimmer. The image shows the electric shaver with its integrated pop-up trimmer extended, ready for use.

6.3 Using the Nose and Ear Hair Trimmer

1. Ensure the battery is correctly installed.
2. Remove the protective cap from the trimmer head.
3. Slide the ON/OFF switch to the 'ON' position.
4. Gently insert the trimmer tip into your nostril or ear canal. Do not insert too deeply.
5. Move the trimmer in a circular motion to cut unwanted hairs.
6. After use, slide the switch to the 'OFF' position and replace the protective cap.

Image 6: Timco Nose and Ear Trimmer Head Close-up. A detailed view of the rotary cutting head of the nose and ear trimmer.

7. Maintenance and Cleaning

Regular cleaning ensures optimal performance and hygiene of your Timco BSK-9000.

1. After Each Use: Turn off the shaver and disconnect it from the power source. Open the shaver head assembly and use the provided cleaning brush to remove any trapped hairs.
2. Deep Cleaning (Shaver): Periodically, you may rinse the shaver heads under running water. Ensure the shaver is completely dry before reassembling or charging.
3. Nose and Ear Trimmer: Remove the trimmer head and rinse it under running water. Use the cleaning brush for stubborn hairs. Ensure the head is dry before reattaching.
4. Storage: Store the shaver and trimmer in the provided travel case in a cool, dry place when not in use.

Caution:

• Do not use abrasive cleaning agents or harsh chemicals on the appliance.
• Always clean and dry the shaver after each use to prevent bacterial growth and maintain performance.

8. Troubleshooting

• Shaver not turning on: Ensure the shaver is fully charged. If it's the nose/ear trimmer, check if the AA battery is correctly installed or needs replacement.
• Poor shaving performance:
  • Ensure the shaver heads are clean and free of hair debris.
  • The shaver may not be fully charged.
  • The shaver is not designed for long beards. Trim longer hairs before shaving.
  • Blades may be dull. Consider replacing the shaver heads if performance does not improve after cleaning and charging.
• Irritation after shaving: Ensure your skin is clean and dry before shaving. Do not press too hard. If irritation persists, consult a dermatologist.

9. Specifications

10. Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact Timco customer service directly. Keep your purchase receipt as proof of purchase.

Manufacturer: Timco
