Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Voltas 122 CY Classic Split Air Conditioner. This 1 Ton, 2 Star (2017) rated AC is designed to provide effective cooling and dehumidification. Please read this manual thoroughly before using the appliance and retain it for future reference.
Key features include a high EER rotary compressor, an airflow volume of 500 CMH, and special features like an Anti Bacterial Filter and Dehumidifier function.
Setup and Installation
Proper installation is crucial for the optimal performance and longevity of your air conditioner. It is highly recommended that installation be performed by a qualified and authorized service technician.
Pre-Installation Checks
- Ensure all components listed in the packaging are present. The main unit is included.
- Verify the electrical supply meets the unit's requirements.
- Select an installation location that allows for proper airflow around both the indoor and outdoor units, away from direct sunlight or heat sources.
Indoor Unit Placement
The indoor unit should be mounted securely on a wall, ensuring it is level for proper drainage. Avoid placing it near obstacles that could block airflow.
Image: Voltas 122 CY Classic Split AC indoor unit with its louvers closed, indicating a standby or off state.
Outdoor Unit Placement
The outdoor unit should be placed in a well-ventilated area, away from direct sunlight and sources of heat. Ensure there is sufficient space for maintenance and proper heat dissipation.
Operating Instructions
Your Voltas 122 CY Classic Split AC offers various modes and settings for optimal comfort. Use the remote control (not included in this manual, refer to remote control specific guide) to access these functions.
Basic Operation Modes
- Cooling Mode: Activates the cooling function. Set your desired temperature using the temperature adjustment buttons.
- Fan Mode: Circulates air without cooling. Useful for ventilation. Fan speed can be adjusted.
- Dry (Dehumidifier) Mode: Reduces humidity in the room without significant temperature drop.
Temperature and Fan Speed Adjustment
Use the 'Temp Up' and 'Temp Down' buttons on your remote to set the desired room temperature. The fan speed can be adjusted (Low, Medium, High, Auto) to control airflow and noise levels.
Airflow Direction
The horizontal and vertical louvers can be adjusted to direct the airflow as desired. Some models offer automatic swing functions for wider air distribution.

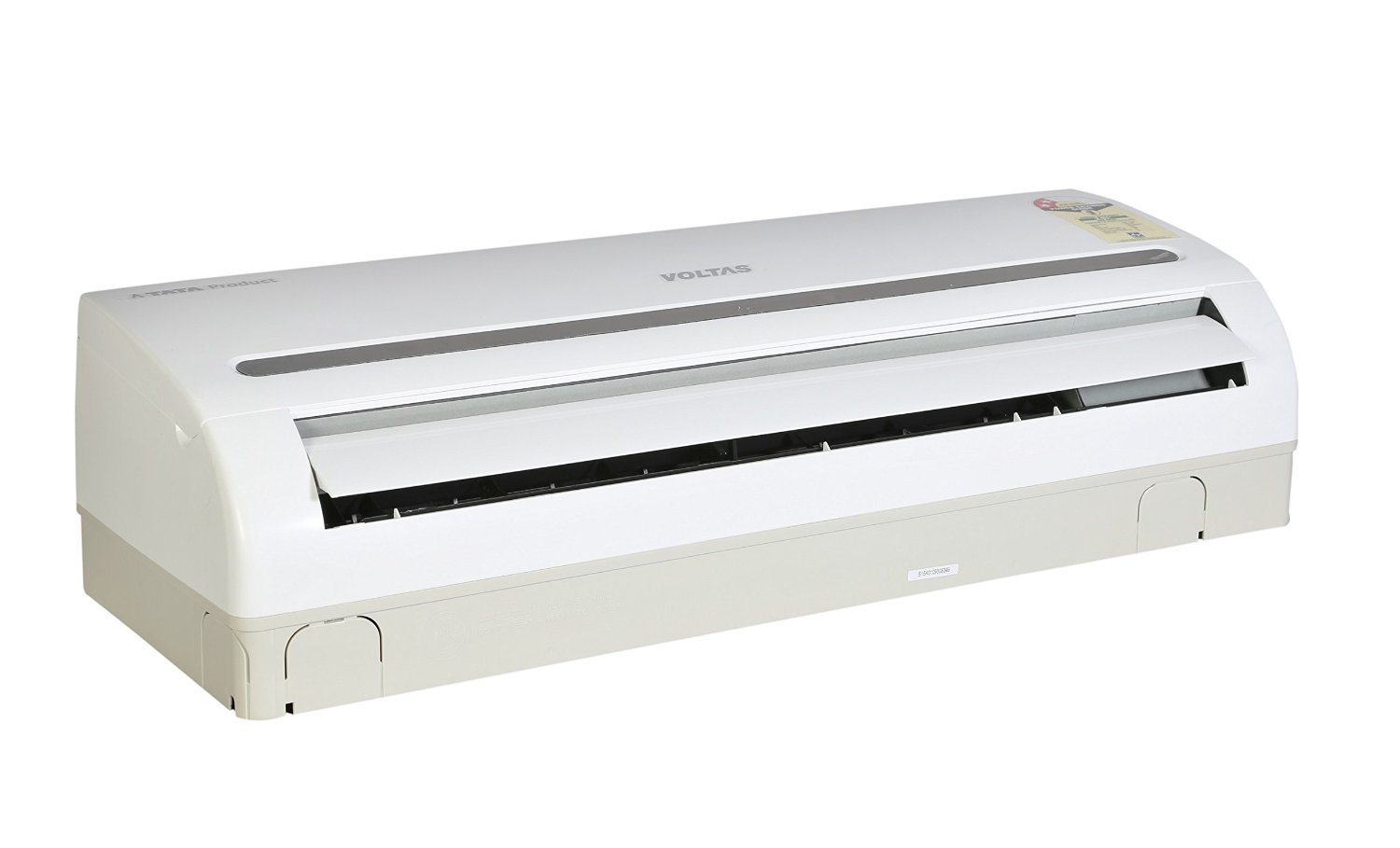

Image: Voltas 122 CY Classic Split AC indoor unit with its louvers open, indicating active operation and air distribution.
Maintenance
Regular maintenance ensures efficient operation and extends the lifespan of your AC unit.
Air Filter Cleaning
- Frequency: Clean the air filters every two weeks, or more frequently if the unit is used in a dusty environment.
- Procedure: Open the front panel of the indoor unit. Carefully remove the Anti Bacterial Filter. Clean it with a vacuum cleaner or wash it with lukewarm water and mild detergent. Allow it to dry completely before re-installing.
Indoor Unit Cleaning
Wipe the surface of the indoor unit with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the unit is switched off and unplugged before cleaning.
Outdoor Unit Maintenance
Periodically check the outdoor unit for any obstructions (leaves, debris) around the coils and fan. Clear any blockages to ensure proper heat exchange. For internal cleaning or refrigerant checks, contact a qualified technician.
Troubleshooting
Before contacting customer support, please refer to the following common issues and their potential solutions.
- AC not cooling effectively: Check if air filters are clean, ensure doors and windows are closed, verify temperature settings, and ensure no obstructions block the outdoor unit.
- Unusual noise: Check for loose parts or foreign objects. If the noise persists or is loud, contact service.
- Water leakage from indoor unit: This could be due to a clogged drain pipe or improper installation. Turn off the unit and contact a service technician.
- Unit does not turn on: Check power supply, circuit breaker, and ensure the remote control batteries are functional.
For any issues not resolved by these steps, or for complex repairs, please contact Voltas customer support.
Specifications
| Feature | Detail |
|---|---|
| Brand | Voltas |
| Model Number | 1.0T 122 CY |
| Capacity | 1 Tons |
| Cooling Power | 3200 Watts |
| Energy Rating | 2 Star (2017) |
| Special Features | Anti Bacterial Filter, Dehumidifier |
| Item Dimensions LxWxH | 77.2 x 315 x 114.2 Centimeters |
| Item Weight | 20 g |
| Included Components | Main Unit, User Manual |
Warranty Information
Voltas provides a one-year warranty on the product from the date of purchase. Additionally, there is an extended five-year warranty specifically on the compressor. Please retain your purchase receipt for warranty claims.
For detailed terms and conditions, including coverage and exclusions, please refer to the warranty card provided with your product or contact Voltas customer support.
Customer Support
For any queries, service requests, or technical assistance regarding your Voltas 122 CY Classic Split AC, please contact our dedicated customer support team:
Toll-Free Number: 1800-3000-9027
Our support lines are available from 8 AM to 11 PM, seven days a week.
