1. Introduction
The Windhager Plus Easy Door Screen, Model 03782, is designed to provide effective protection against insects and crawling pests for your home. This reliable and easily removable screen features four overlapping fiberglass panels, making it an ideal solution for various living situations, including rental apartments, as it requires no drilling for installation.
Enjoy undisturbed ventilation, cooking, and peaceful sleep without the nuisance of insects. The screen's design ensures quick and silent closing, maintaining comfort and tranquility in your living space.
Windhager Plus Easy Door Screen installed, protecting a home from insects. The image highlights benefits such as preventing mosquito bites, allowing undisturbed eating, cooking, and ventilation, and ensuring peaceful sleep.
2. Safety Information
- Read all instructions carefully before installation and use.
- Keep packaging materials away from children to prevent suffocation hazards.
- Use the product only for its intended purpose as an insect screen.
- Ensure the screen is securely installed to prevent accidental detachment.
- Do not hang heavy objects on the screen.
3. Package Contents
Please check that all components are present before beginning installation:
- 1x Windhager Plus Easy Door Screen (with four fiberglass panels and pre-mounted weighting strips)
- Mounting profile for adhesive installation
- Instruction Manual (this document)
4. Setup and Installation
The Windhager Plus Easy Door Screen is designed for external adhesive mounting, requiring only 8 mm of installation depth. No drilling is necessary, making it suitable for rental properties.
4.1. Preparation
- Measure Your Door Frame: Accurately measure the width and height of your door frame. The screen is adjustable up to a maximum of 120 cm in width and 250 cm in height. Ensure there is sufficient flat surface around the frame for the adhesive mounting profile.
- Clean the Surface: Thoroughly clean the area where the mounting profile will be attached. The surface must be dry, dust-free, and grease-free for optimal adhesion.
- Adjust Screen Dimensions (if necessary): The screen's fiberglass panels can be individually shortened in height and width to fit your specific door dimensions, up to the maximum of 120 x 250 cm.

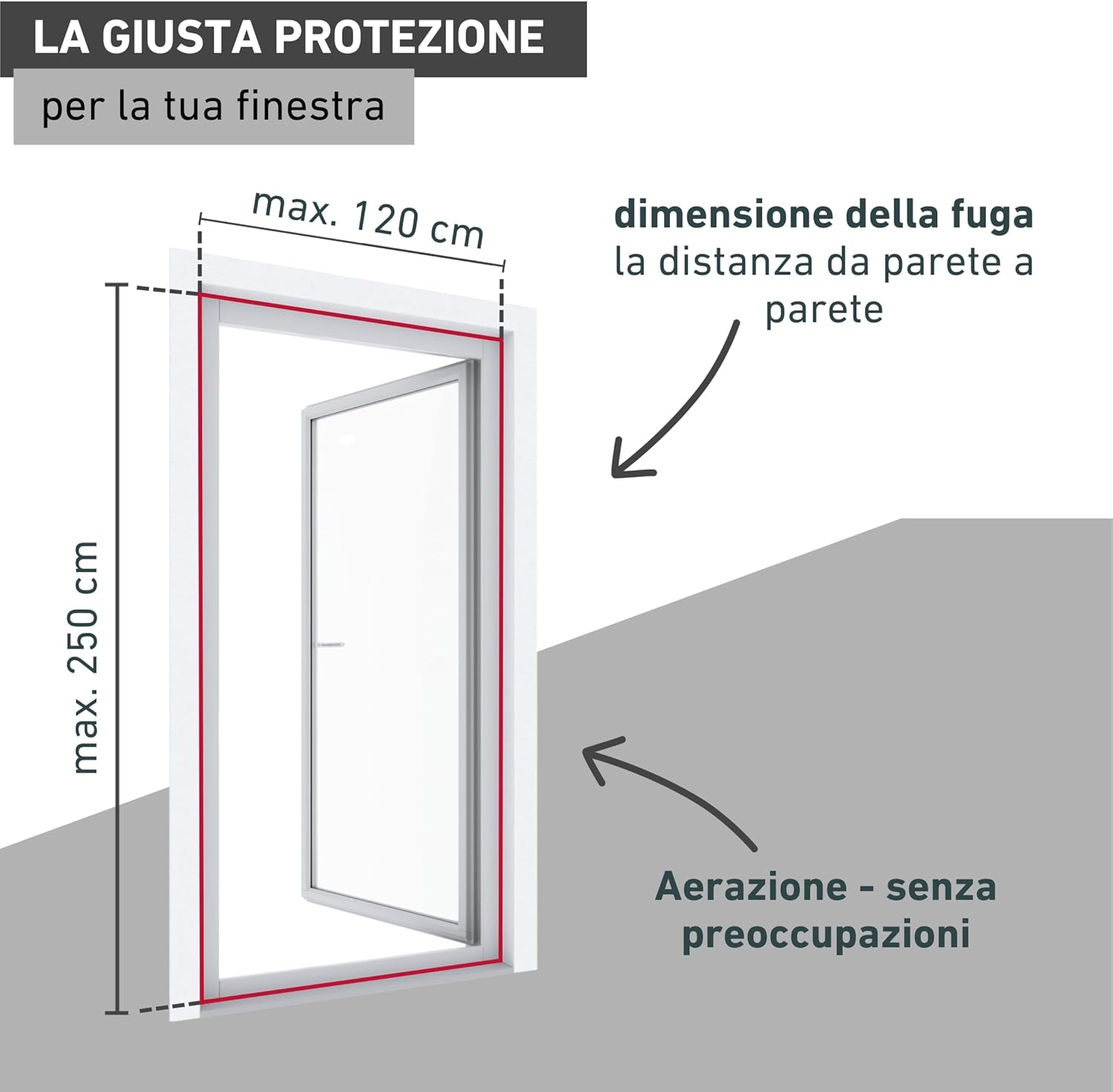

Illustration demonstrating how to measure the door frame for the Windhager Plus Easy Door Screen. It shows the maximum width of 120 cm and height of 250 cm, indicating the distance from wall to wall for proper fit and ventilation.
Diagram illustrating the Windhager Plus Easy Door Screen's construction with four overlapping fiberglass panels. It shows the maximum dimensions of 120 cm width and 250 cm height, emphasizing its adjustability.
4.2. Mounting the Screen
- Attach the Adhesive Profile: Carefully peel the protective film from the adhesive backing of the mounting profile. Align the profile precisely with your door frame and press firmly along its entire length to ensure strong adhesion.
- Hang the Screen: Once the adhesive profile is securely in place, attach the Windhager Plus Easy Door Screen to the profile. Ensure the screen hangs straight and the panels overlap correctly.
- Final Check: Verify that the screen operates smoothly and the weighting strips allow the panels to close quickly and silently.

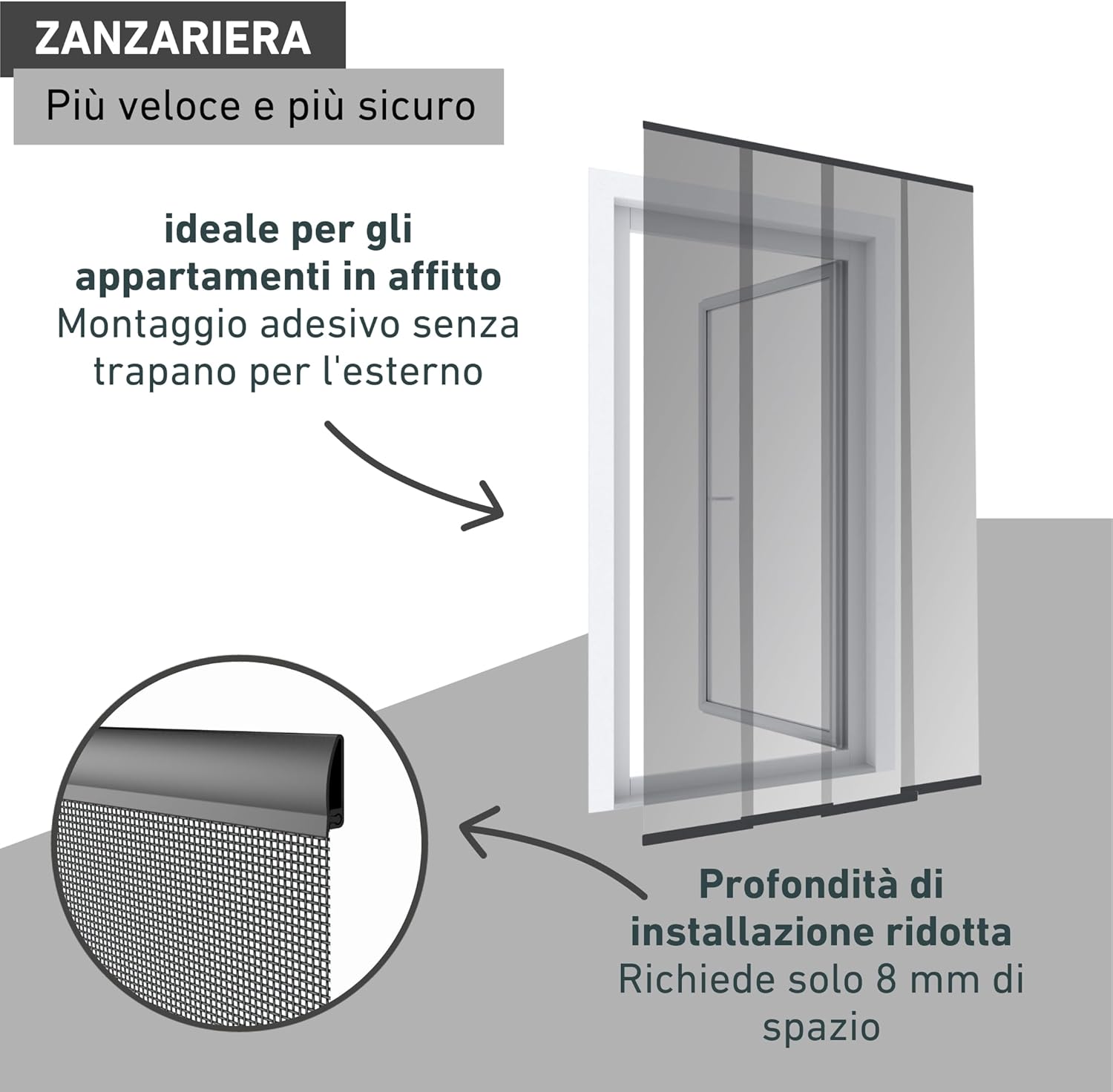

Diagram showing the adhesive mounting method for the Windhager Plus Easy Door Screen, ideal for rental apartments as it requires no drilling. It highlights the reduced installation depth of only 8 mm.
5. Operation
The Windhager Plus Easy Door Screen operates by allowing passage through its overlapping fiberglass panels. The pre-mounted weighting strips at the bottom of each panel ensure that the screen automatically returns to its closed position after you pass through, effectively keeping insects out.
Close-up view of the pre-mounted weighting strips at the bottom of the Windhager Plus Easy Door Screen panels. These strips ensure the screen closes quickly and silently.
6. Maintenance
Regular maintenance will ensure the longevity and effectiveness of your Windhager Plus Easy Door Screen.
- Cleaning: The fiberglass mesh can be cleaned with a soft cloth dampened with mild soapy water. Avoid harsh chemicals or abrasive cleaners, as these can damage the material.
- Inspection: Periodically inspect the screen for any signs of wear, tear, or damage to the mesh or mounting profile.
- Adhesive Check: Ensure the adhesive mounting profile remains firmly attached to the door frame. If it shows signs of loosening, re-secure it or apply a suitable adhesive if necessary.
Image emphasizing the long-term insect protection provided by the Windhager Plus Easy Door Screen. It highlights drill-free installation, no clutter, suitability for rental apartments, and being free from poisons or chemicals.
7. Troubleshooting
Here are some common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Screen panels do not close properly or overlap. | Misalignment of panels or weighting strips. Obstruction. | Gently adjust the panels to ensure they hang straight. Check for any debris or objects obstructing the weighting strips. |
| Screen detaches from the door frame. | Adhesive losing strength or improper initial application. | Ensure the surface was clean and dry during installation. Re-apply the adhesive profile if necessary, ensuring firm pressure during application. |
| Insects are still entering. | Gaps in installation or damaged mesh. | Inspect the entire screen for any gaps between the frame and the screen, or holes in the mesh. Repair or re-install as needed. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Windhager |
| Model | 03782 |
| Dimensions (Max) | 120 cm (Width) x 250 cm (Height) |
| Color | Anthracite |
| Material | Fiberglass |
| Installation Depth Required | 8 mm |
| Assembly Required | Yes |
| Number of Panels | 4 (for Model 03782) |
| Item Weight | 1.08 Kilograms |
9. Warranty and Support
For detailed technical information, assembly videos, and step-by-step installation instructions, please visit the official Windhager online consultant or brand store.
For further assistance or warranty inquiries, please contact Windhager customer support through their official channels. You can find more information and support resources on the Windhager Home & Garden Store.
