1. Introduction
This user manual provides essential information for the safe and efficient operation, installation, and maintenance of your NEFF T18PT16X0 Electric Hob. Please read these instructions carefully before using the appliance and keep them for future reference.

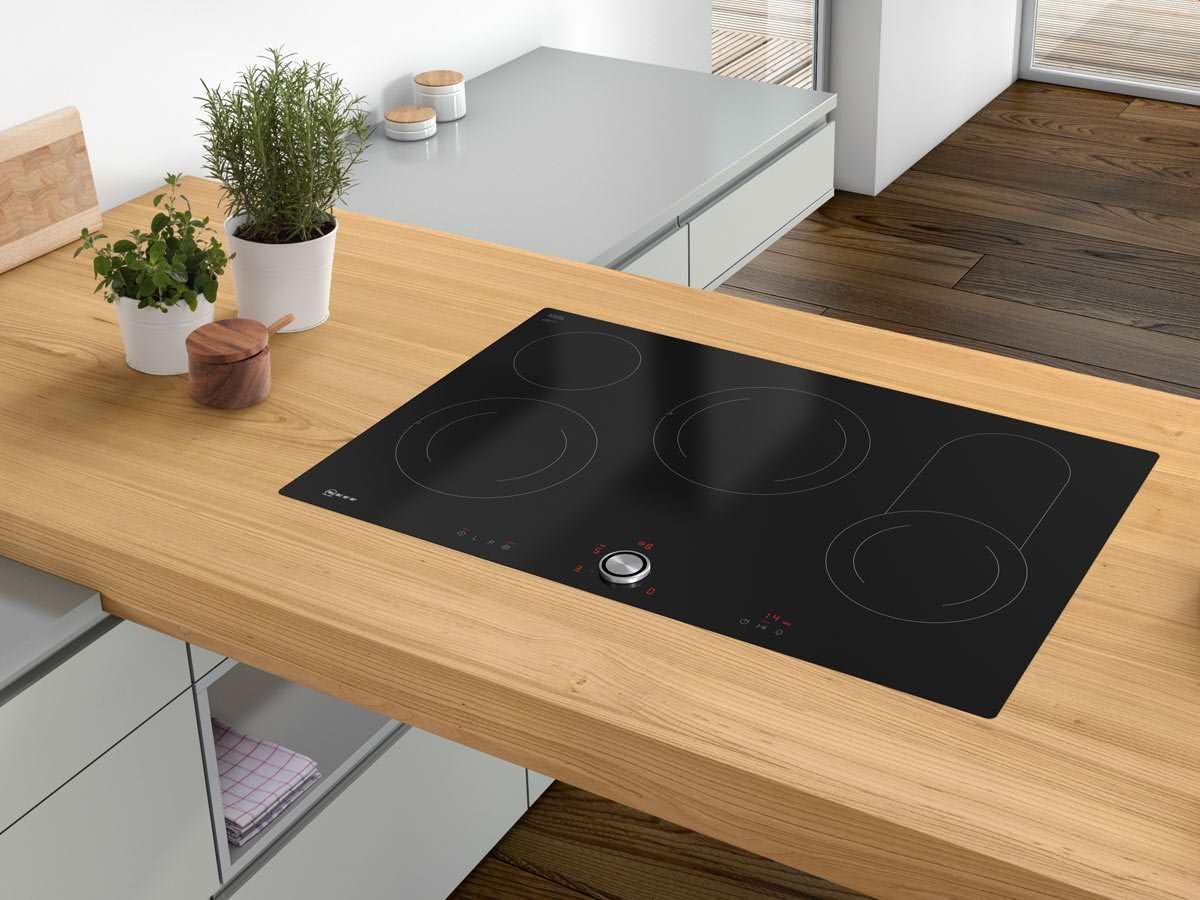

Figure 1.1: The NEFF T18PT16X0 Electric Hob seamlessly integrated into a kitchen countertop.
2. Safety Information
Always adhere to the following safety guidelines to prevent personal injury or damage to the appliance:
- Ensure the appliance is installed by a qualified professional.
- Do not operate the hob with wet hands.
- Keep children away from the hot cooking zones.
- Do not store flammable materials on or near the hob.
- After use, the glass ceramic surface may remain hot. Avoid touching it until it has cooled down.
- Never leave cooking unattended, especially when using high heat settings.
- In case of a fault, disconnect the appliance from the power supply immediately.
3. Installation
The NEFF T18PT16X0 Electric Hob is designed for flush-mounted installation. Proper installation is crucial for safety and performance. It is highly recommended that installation be carried out by a certified technician.
Key Installation Dimensions:
- Product Dimensions (W x D): 82.6 cm x 54.6 cm
- Niche Dimensions (H x W x D): 5.1 cm x 78.0 cm x 50.0 cm
Figure 3.1: Installation dimensions for the NEFF T18PT16X0 Electric Hob. All measurements are in millimeters.
Figure 3.2: Detail showing the flush-mounted design of the hob, integrating seamlessly with the countertop.
4. Operating Instructions
Your NEFF T18PT16X0 Electric Hob features intuitive controls and versatile cooking zones to enhance your culinary experience.
4.1. The TwistPad Control
The unique TwistPad is a magnetic, removable control knob that allows for precise and comfortable regulation of all cooking zones. Simply place the TwistPad on the control panel and rotate it to select and adjust power levels.
Figure 4.1: The TwistPad control in detail, showing its central position and clear display.
Video 4.1: Demonstration of the Neff TwistPad control in use, highlighting its ease of operation for adjusting heat settings.
4.2. Cooking Zones and Power Levels
The hob features four electric heating elements with 17 power levels for precise temperature control. These include:
- Standard Cooking Zones: For everyday cooking.
- Switchable Roasting Zone (Bräterzone): With a simple touch, two cooking zones can be combined into one large zone, ideal for larger roasting pans or griddles.
- Power Level for Pots (Powerstufe für Töpfe): Provides 50% more energy than level 9, allowing for extremely fast heating of pots without boiling over. The Powerstufe automatically switches off before overheating.
- Power Level for Pans (Powerstufe für Pfannen): Heats pans quickly for 30 seconds with high power, then automatically reduces heat to prevent burning.
Figure 4.2: A pot boiling rapidly on the Powerstufe for pots, demonstrating its high-speed heating capability.
Figure 4.3: A pan with ingredients being cooked on the Powerstufe for pans, illustrating its quick heating feature for frying.
4.3. Child Lock
The hob is equipped with a child lock feature to prevent accidental activation. Refer to the detailed instructions in the full manual for activating and deactivating the child lock.
5. Care and Maintenance
To maintain the appearance and functionality of your glass ceramic hob, follow these cleaning guidelines:
- Clean the hob after each use once it has cooled down.
- Use a soft cloth and a specialized ceramic hob cleaner.
- For stubborn stains, use a hob scraper, holding it at a shallow angle.
- Avoid abrasive cleaners, scouring pads, or harsh chemicals.
6. Troubleshooting
If you encounter issues with your hob, try the following before contacting customer service:
| Problem | Possible Cause | Solution |
|---|---|---|
| Hob does not switch on. | No power supply; child lock activated. | Check circuit breaker; deactivate child lock. |
| Cooking zone not heating. | Incorrect pot placement; wrong power level selected. | Ensure pot is centered; adjust power level. |
| Error code displayed. | Specific fault detected. | Refer to the full manual's error code section or contact customer support. |
7. Technical Specifications
| Feature | Detail |
|---|---|
| Brand | Neff |
| Model Identifier | T18PT16X0 |
| Product Dimensions (D x W x H) | 5.1 x 78 x 5.1 cm |
| Installation Type | Built-in |
| Special Features | TwistPad, Switchable Roasting Zone, Flush-mounted |
| Burner Type | Built-in or Integrated |
| Number of Heating Elements | 4 |
| Color | Flush-mounted with Twistpad (Black) |
| Voltage | 230 Volt |
| Wattage | 12000 Watt |
| Operation Mode | Electric |
| Material | Glass Ceramic |
| Scope of Delivery | Hob only |
| First Available | January 1, 2016 |
Video 7.1: A comparison video highlighting the differences between electric and induction hobs, providing context for the NEFF T18PT16X0's electric heating technology.
8. Warranty and Support
For warranty information, technical support, or service requests, please refer to the warranty card included with your appliance or visit the official Neff website. Keep your purchase receipt as proof of purchase.
