Morel MXR-200 2-Way Crossover Instruction Manual

Introduction

This manual provides essential instructions for the proper installation, operation, and maintenance of your Morel MXR-200 2-Way Frequency Crossover. Please read this manual thoroughly before installation to ensure optimal performance and longevity of your audio system components.

Product Overview

The Morel MXR-200 is a high-quality 2-way passive frequency crossover designed to accurately separate audio signals for a two-component speaker system, typically consisting of a woofer and a tweeter. It features a crossover frequency of 2200Hz with a 12dB per octave slope for both high-pass (HP) and low-pass (LP) filters, and includes a high-tone adaptation feature for adjusting tweeter output by +/- 2dB.

Image 1: Two Morel MXR-200 2-Way Crossovers. This image displays a pair of MXR-200 crossovers, highlighting their compact design, transparent covers revealing the internal coils and capacitors, and the terminal blocks for speaker wire connections. Each unit features clearly labeled input and output terminals for woofer and tweeter.

Installation and Setup

Safety Precautions

• Disconnect the vehicle's battery before beginning any electrical installation.
• Ensure all connections are secure to prevent short circuits.
• Mount the crossover in a dry location, away from direct heat or moisture.
• Use appropriate gauge wiring for all connections.

Wiring Diagram and Connections

The MXR-200 crossover features clearly marked terminal blocks for input and output connections. Refer to the labels on the crossover unit for correct wiring.

1. Amplifier Input: Connect the speaker output wires from your amplifier to the "Amp In" terminals on the crossover. Ensure correct polarity (+ to + and - to -).
2. Woofer Output: Connect the woofer speaker wires to the "Out Woofer" terminals.
3. Tweeter Output: Connect the tweeter speaker wires to the "Out Tweeter" terminals.

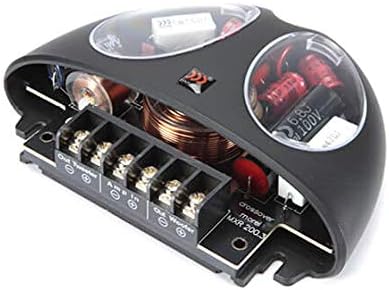

Image 2: Close-up of Morel MXR-200 Crossover Terminals. This image provides a detailed view of a single MXR-200 crossover, focusing on the terminal block. Labels such as "Amp In", "Out Woofer", and "Out Tweeter" are clearly visible, indicating the connection points for amplifier, woofer, and tweeter respectively. The internal components like coils and capacitors are also visible through the transparent cover.

High Tone Adaptation

The MXR-200 includes a high-tone adaptation feature, allowing for a +/- 2dB adjustment of the tweeter output. This adjustment is typically made via jumpers or switches located on the crossover board. Consult the markings on your specific unit for the exact method of adjustment.

Operation

Once properly installed, the Morel MXR-200 crossover operates passively, requiring no external power. It automatically divides the full-range audio signal from your amplifier into appropriate frequency bands for your woofer and tweeter, ensuring each speaker receives only the frequencies it is designed to reproduce. This results in clearer sound reproduction and protects your speakers from damage due to incorrect frequencies.

Maintenance

• Cleaning: Keep the crossover free from dust and debris. Use a soft, dry cloth for cleaning. Avoid liquid cleaners.
• Environment: Ensure the installation location remains dry and free from extreme temperatures.
• Connections: Periodically check all wiring connections to ensure they remain tight and free from corrosion.

Troubleshooting

No Sound from Speakers

• Verify all wiring connections from the amplifier to the crossover and from the crossover to the speakers are secure and correctly polarized.
• Check the amplifier's power and output.
• Ensure speakers are functioning correctly by testing them directly with an audio source if possible.

Distorted Sound

• Check for loose connections or frayed wires.
• Ensure the amplifier is not overdriving the speakers or crossover.
• Verify the high-tone adaptation setting is appropriate for your listening preference and tweeter characteristics.

Specifications

• Brand: Morel
• Model: MXR 200
• Part Number: MXR-200
• Crossover Type: 2-Way Passive
• Crossover Frequency: 2200Hz
• Slope: 12dB/octave (High-Pass/Low-Pass)
• High Tone Adaptation: +/- 2dB
• Maximum Output Power: 200 Watts
• Mounting Type: Table Standing (General, for product display)
• Batteries Required: No

Warranty and Support

For warranty information and technical support, please refer to the documentation provided with your purchase or contact Morel customer service directly. Keep your proof of purchase for warranty claims.
