1. Introduction
This manual provides instructions for the assembly, operation, and maintenance of your Nexel Chrome Wire Shelf (Model 188556). This shelf is designed to create a strong and durable storage system. Its solid construction and chrome-plated finish offer both reliability and a clean aesthetic.
Safety Information
- Always ensure the shelving unit is assembled on a flat, stable surface.
- Do not exceed the maximum weight capacity of 800 lbs per shelf.
- Distribute weight evenly across the shelf surface.
- Keep small children away during assembly.
- Regularly inspect the unit for any loose components and tighten as necessary.
2. Package Contents
Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact customer support.
- 1 x Nexel Chrome Wire Shelf (36"W x 24"D)
- (Note: Posts and plastic snap-on sleeves are sold separately and are required for a complete shelving unit.)
3. Setup and Assembly
This section details the steps to install the Nexel Chrome Wire Shelf onto compatible Nexel posts. Ensure you have Nexel posts and plastic snap-on sleeves ready before proceeding.
Tools Required:
- Rubber Mallet (optional, for secure fit)
Assembly Steps:
- Prepare Posts: Stand the Nexel posts upright. Each post has grooves at regular intervals.
- Attach Sleeves: Take two plastic snap-on sleeves and snap them together around each post at the desired height for your shelf. Ensure the arrow on each sleeve points upwards. Repeat this for all four posts at the same height.
- Position Shelf: Carefully lower the wire shelf over the four posts, aligning the shelf collars with the plastic snap-on sleeves.
- Secure Shelf: Press down firmly on each corner of the shelf until the shelf collars are securely seated over the sleeves. You may use a rubber mallet to gently tap the corners for a tighter fit, ensuring the shelf is level.
- Verify Stability: Once all shelves are installed, gently shake the unit to ensure it is stable and all connections are secure.

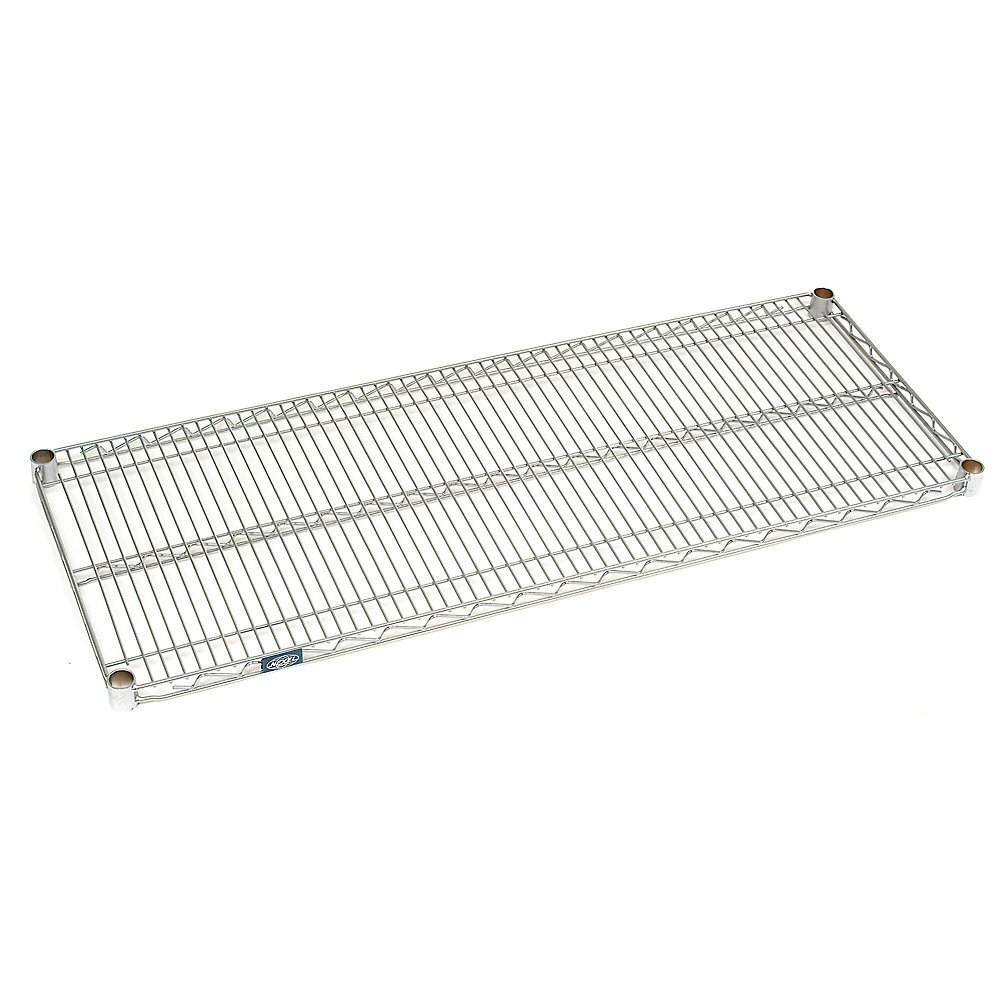

Image 1: Nexel Chrome Wire Shelf securely installed on shelving posts. The shelf collars fit over the plastic snap-on sleeves, which are attached to the grooved posts.
4. Operating Instructions
The Nexel Chrome Wire Shelf is designed for versatile storage. Follow these guidelines for optimal use:
- Weight Capacity: Each shelf has a maximum capacity of 800 lbs. Distribute items evenly to prevent stress on any single point.
- Shelf Adjustment: To adjust the shelf height, remove all items from the shelf. Lift the shelf off the plastic sleeves. Remove the sleeves, reposition them on the posts at the desired new height, and then re-attach the shelf as described in the assembly steps.
- Loading: Place heavier items on lower shelves for increased stability of the entire unit.
5. Maintenance
Proper maintenance will extend the life and appearance of your chrome wire shelf.
- Cleaning: Wipe the chrome surface with a soft, damp cloth. For stubborn dirt, use a mild soap solution and then dry thoroughly to prevent water spots or corrosion. Avoid abrasive cleaners or scouring pads.
- Inspection: Periodically check all connections to ensure they remain tight and secure.
- Environment: While chrome is durable, avoid prolonged exposure to high humidity or corrosive environments to prevent rust.
6. Troubleshooting
If you encounter issues with your Nexel Chrome Wire Shelf, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Shelf is wobbly or unstable. | Sleeves not fully seated; uneven floor; overloaded shelf. | Ensure all shelf collars are fully seated over the plastic sleeves. Check if the floor is level or use shims if necessary. Redistribute or reduce load. |
| Difficulty attaching shelf to posts. | Sleeves not properly aligned or snapped together. | Ensure plastic sleeves are snapped together correctly around the post and aligned with the grooves. Verify arrows on sleeves point upwards. |
| Shelf appears bent or sagging. | Exceeded weight capacity; uneven weight distribution. | Immediately remove items. Do not exceed 800 lbs per shelf. Distribute weight evenly across the shelf surface. |
7. Specifications
- Model Number: 188556
- Brand: Nexel
- Dimensions (WxD): 36 inches x 24 inches
- Material: Wire (Chrome Plated Finish)
- Shelf Capacity: 800 lbs (evenly distributed)
- Item Weight: Approximately 12.5 pounds
- Manufacturer: C&H
8. Warranty and Support
Specific warranty details for the Nexel Chrome Wire Shelf (Model 188556) are not provided within this instruction manual. For warranty information, technical support, or to inquire about replacement parts, please refer to the official Nexel website or contact the manufacturer directly.
You can typically find contact information on the product packaging or by searching for "Nexel customer support" online.
