Carepeutic Ozone Waterfall Foot and Leg Spa Bath Massager KH298 User Manual

1. Important Safety Instructions

Please read all instructions carefully before using the Carepeutic Ozone Waterfall Foot and Leg Spa Bath Massager. Failure to follow these instructions may result in electric shock, fire, or serious injury.

Always unplug the appliance from the electrical outlet immediately after using and before cleaning.
Do not use while bathing or showering.
Do not place or store appliance where it can fall or be pulled into a tub or sink.
Do not place in or drop into water or other liquid.
Do not reach for an appliance that has fallen into water. Unplug it immediately.
Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water.
Keep the cord away from heated surfaces.
Never use while sleeping or drowsy.
Never drop or insert any object into any opening.
Do not use outdoors.
Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
This appliance is intended for household use only.
Consult your doctor before using if you have any medical conditions, including but not limited to diabetes, heart disease, pregnancy, or if you have any open wounds or skin irritations on your feet or legs.
Do not stand in the unit. Use only while seated.
Ensure the unit is placed on a firm, level surface.

2. Product Components

Familiarize yourself with the various parts of your Carepeutic Foot and Leg Spa Massager.

Carepeutic Ozone Waterfall Foot and Leg Spa Bath Massager, top-down view — **Figure 2.1:** Overall view of the Carepeutic Foot and Leg Spa Massager. This image shows the complete unit from a top-down angle, highlighting its compact and enclosed design.

Side view of Carepeutic Foot Spa showing hidden drainage valve and power cord storage — **Figure 2.2:** Side view of the spa, illustrating the hidden water drainage valve and the power cord storage compartment for neat organization.

Top view of Carepeutic Foot Spa with lid open, showing massage rollers — **Figure 2.3:** Top view with the lid open, revealing the internal motorized massage rollers and the foot basin.

Removable herbal bag container and mineral stones in Carepeutic Foot Spa — **Figure 2.4:** Close-up of the removable herbal bag container and mineral stones, designed for adding therapeutic elements to your foot spa experience.

Carepeutic Foot Spa control panel with buttons for power, massage, ozone, mode, drainage, and temperature — **Figure 2.5:** Detailed view of the control panel, showing buttons for On/Off, Massage, Air Bubble Ozone, Mode, Drainage, Temperature adjustment, and Heating.

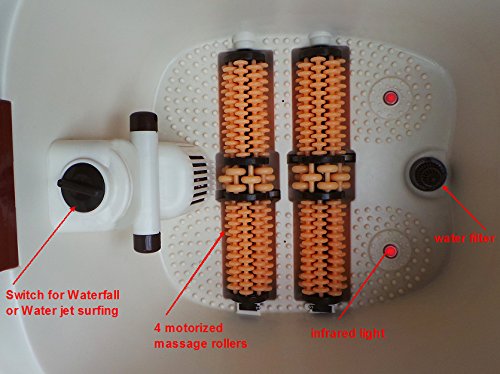

Internal view of Carepeutic Foot Spa showing rollers, waterfall/jet switch, water filter, and infrared light — **Figure 2.6:** Internal components including the motorized massage rollers, the switch for waterfall or water jet functions, the water filter, and the infrared light emitters.

Component List:

Main Unit with Foot Basin
Control Panel
Motorized Massage Rollers (4 units)
Water Drainage Valve (Hidden)
Power Cord Storage Compartment (Hidden)
Removable Herbal Bag Container
Mineral Stones (pre-installed in container)
Waterfall/Water Jet Switch
Water Filter
Infrared Light Emitters

3. Setup Guide

Follow these steps for initial setup before first use.

Placement: Place the foot spa on a flat, stable, and dry surface. Ensure there is enough space around the unit for comfortable use and drainage.
Power Connection: Open the hidden power cord storage compartment (refer to Figure 2.2 and 2.7). Unwind the power cord and plug it into a suitable electrical outlet. Ensure the voltage matches your local power supply (e.g., 110V 60Hz or 220V 50Hz, depending on your region and product version).
Fill with Water: Open the lid. Fill the foot basin with warm or cold water. Do not exceed the maximum fill line indicated inside the basin. For optimal heating performance, it is recommended to start with warm water.
Optional: Herbal Bag/Mineral Stones: If desired, place your preferred herbal bag or mineral stones into the removable container (refer to Figure 2.4). Ensure the container is securely placed in its designated slot.
Close Lid: Close the lid securely before operating.

Carepeutic Foot Spa showing open and closed states of hidden drainage valve and power cord storage — **Figure 2.7:** Illustration of the hidden water drainage valve and power cord storage compartment in both open and closed positions, demonstrating their discreet design.

4. Operating Instructions

This section details how to use the various functions of your foot spa.

4.1. Control Panel Overview

Refer to Figure 2.5 for the layout of the control panel.

On/Off Button: Press to power the unit on or off.
Massage Button: Activates/deactivates the motorized massage rollers.
Air Bubble Ozone Button: Activates/deactivates the air bubble and ozone functions.
Mode Button: Cycles through pre-set programs (P1, P2, P3, P4) which combine different functions and timings.
Drainage Button: Initiates the motorized water drainage process.
Temp + / Temp - Buttons: Adjusts the desired water temperature.
Heating Button: Activates/deactivates the water heating function.

4.2. Basic Operation

Power On: Press the On/Off button. The display will illuminate.
Set Temperature: Press the Heating button to activate the heater. Use the Temp + and Temp - buttons to set your desired water temperature. The unit will maintain this temperature.
Activate Massage: Press the Massage button to start the motorized rollers. You can turn them off at any time by pressing the button again.
Activate Air Bubbles & Ozone: Press the Air Bubble Ozone button to activate these functions. Press again to turn off.
Waterfall or Water Jet: Locate the switch inside the basin (refer to Figure 2.6). Turn this switch to select either the waterfall or water jet surfing function.
Pre-set Modes: If you prefer a pre-programmed experience, press the Mode button to cycle through P1, P2, P3, P4. Each mode offers a different combination of functions and timings. Refer to the display for the active mode.
Session Duration: The display shows the remaining time for the session. You can manually turn off the unit at any time by pressing the On/Off button.

Carepeutic Foot Spa showing Waterfall Surfing and Water Jet Surfing modes with infrared light — **Figure 2.8:** Comparison of Waterfall Surfing and Water Jet Surfing functions, both accompanied by the infrared light for enhanced relaxation.

4.3. Water Drainage

The unit features a motorized drainage system for convenience.

Prepare for Drainage: After use, ensure your feet are removed from the basin. Place a bucket or suitable container directly under the hidden water drainage valve (refer to Figure 2.7).
Open Valve: Open the hidden water drainage valve.
Initiate Drainage: Press the Drainage button on the control panel. The motorized pump will begin to empty the water into your container.
Monitor Drainage: Monitor the water level in your container and pause drainage if necessary by pressing the Drainage button again. Resume when ready.
Complete Drainage: Once the basin is empty, press the Drainage button to turn off the pump. Close the drainage valve.

Carepeutic Foot Spa motorized water drainage in action — **Figure 2.9:** The motorized water drainage system in operation, showing water flowing from the opened valve into a collection bucket.

5. Care and Maintenance

Proper care ensures the longevity and hygiene of your foot spa.

Cleaning: After each use, drain the water completely. Wipe the interior of the basin with a soft cloth and mild, non-abrasive cleaner. Rinse thoroughly with clean water. Do not immerse the entire unit in water.
Filter Cleaning: Periodically remove and clean the water filter (refer to Figure 2.6) to prevent blockages and maintain optimal performance. Rinse under running water.
Herbal Bag Container: Clean the removable herbal bag container after each use, especially if using herbs or salts, to prevent residue buildup.
Exterior: Wipe the exterior of the unit with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
Storage: Ensure the unit is completely dry before storing. Coil the power cord and store it in its designated compartment. Close the drainage valve. Store in a cool, dry place, away from direct sunlight and extreme temperatures.

6. Troubleshooting

If you encounter issues, refer to this section for potential solutions.

Problem	Possible Cause	Solution
Unit does not power on.	Not plugged in; Power outlet malfunction; Unit malfunction.	Ensure power cord is securely plugged in. Test outlet with another appliance. If still not working, contact customer support.
Water is not heating.	Heating function not activated; Temperature setting too low; Heater malfunction.	Press the Heating button. Increase temperature using Temp +. Allow time for water to heat. If issue persists, contact customer support.
Massage rollers not working.	Massage function not activated; Obstruction.	Press the Massage button. Check for any foreign objects obstructing the rollers.
Bubbles/Ozone not working.	Air Bubble Ozone function not activated; Air outlet blocked.	Press the Air Bubble Ozone button. Check for any blockages in the air outlets at the bottom of the basin.
Water drainage is slow or not working.	Drainage button not pressed; Drainage valve closed; Pump malfunction; Water filter clogged.	Ensure the Drainage button is pressed and the drainage valve is open. Clean the water filter. If the problem persists, contact customer support.
Unit is leaking.	Overfilled; Damaged seal or component.	Ensure water level does not exceed the maximum fill line. If leaking continues, discontinue use and contact customer support.

7. Specifications

Technical details for the Carepeutic Ozone Waterfall Foot and Leg Spa Bath Massager KH298.

Model Number: KH298
Brand: Carepeutic
Product Dimensions (LxWxH): 58.42 cm x 48.26 cm x 45.72 cm (21 in x 16.3 in x 17 in)
Item Weight: 7.71 kg (17 Pounds)
Power Source: Corded Electric (Note: 'Is It Cordless?' in some specifications refers to portability, not battery operation. This unit requires a power cord for operation.)
Special Features: Ozone Waterfall Massage, Motorized Massage Rollers, Heating Function, Air Bubbles, Motorized Water Drainage, Infrared Light.
Intended Use: Foot and Leg Massage, Foot Fatigue Relief, Circulation Improvement, Home Use.

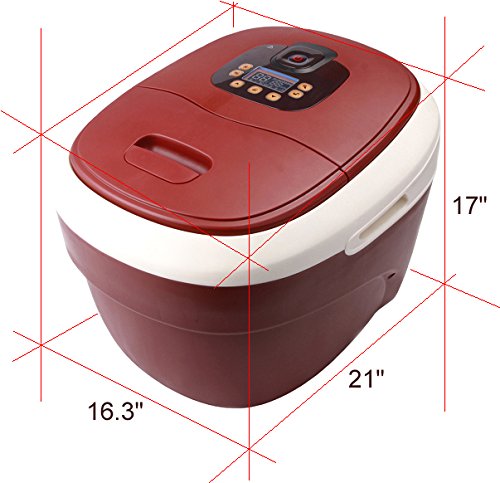

Carepeutic Foot Spa with dimensions labeled: 21 inches length, 16.3 inches width, 17 inches height — **Figure 2.10:** Dimensional diagram of the foot spa, indicating its length, width, and height for placement and storage considerations.

8. Warranty and Customer Support

For warranty information or customer support, please refer to the documentation included with your purchase or contact the retailer where the product was acquired. Keep your proof of purchase for warranty claims.
