1. Introduction
This manual provides comprehensive instructions for the Whale Quick-Connect 15mm Straight Plumbing Connector, Model WX1504. This connector is engineered to facilitate reliable and secure connections within a boat's plumbing system, suitable for both hot and cold water applications. Please read these instructions carefully before installation and use to ensure proper function and longevity of the product.
2. Product Features
- Reliably engineered to enable secure connections in marine plumbing systems.
- Accepts tubing with a 15mm outside diameter.
- Features an innovative Double-Gripper design for secure, lifelong tube retention.
- An internal support ring ensures the O-ring seal remains in position, preventing leaks.
- Suitable for use with both cold and hot water.
- Rated for pressure up to 180 PSI at 68°F (20°C) and 90 PSI at 180°F (82°C).
3. Setup and Installation
Proper preparation and installation are crucial for a leak-free connection.
3.1 Preparation
- Ensure the tubing is clean, free of debris, and cut squarely. Use a specialized tube cutter for a clean, burr-free cut.
- Verify that the tubing has an outside diameter of 15mm.
3.2 Making a Connection
- Push the prepared tubing firmly into the connector.
- Continue pushing until the tubing bottoms out against the internal stop. You should feel a positive 'click' or resistance as the Double-Gripper mechanism engages.
- Gently pull on the tubing to ensure it is securely seated and cannot be easily removed.

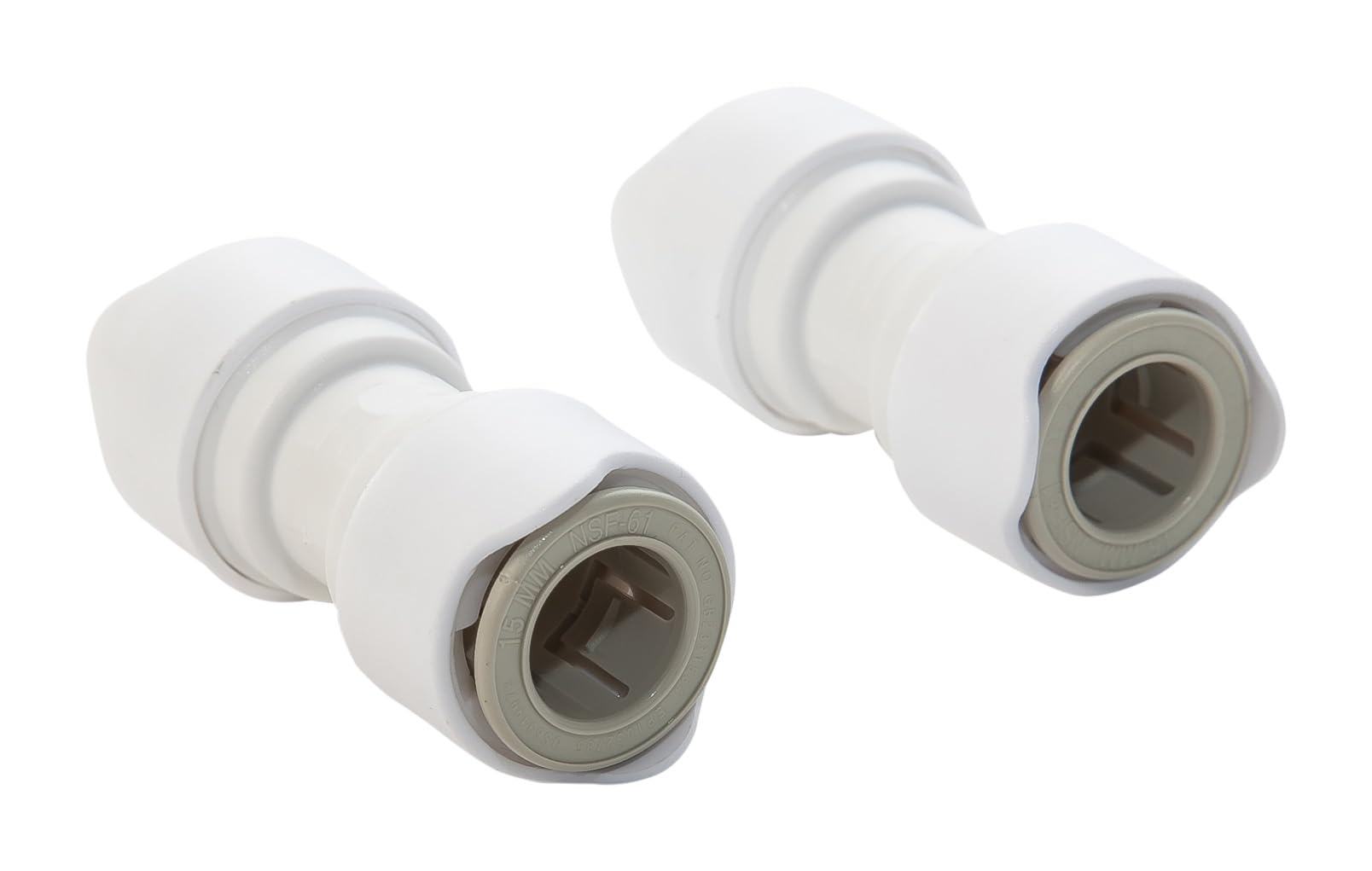

Figure 1: Whale Quick-Connect 15mm Straight Plumbing Connector. This image shows the connector from an angled view, highlighting its white polyethylene body and the grey internal collet mechanism.

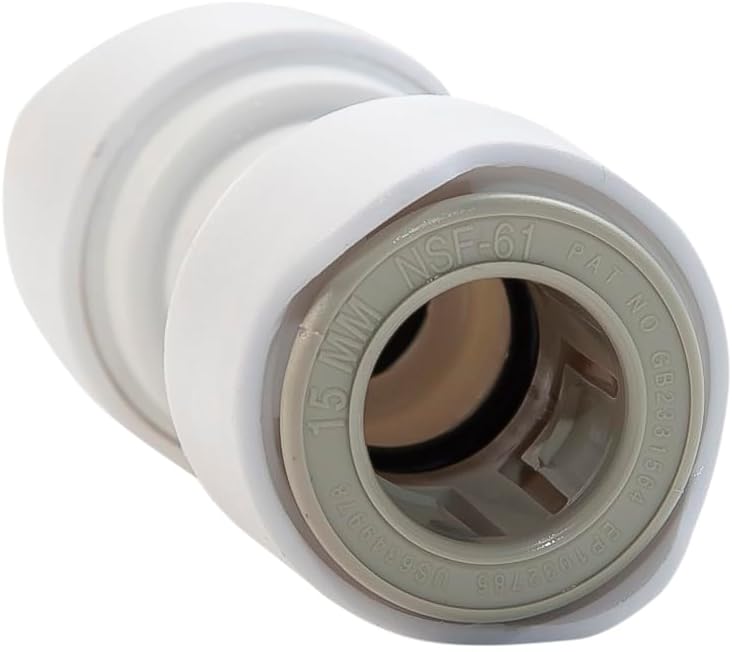

Figure 2: Close-up view of the Whale Quick-Connect 15mm Straight Plumbing Connector, showing the '15 MM' size marking and 'NSF-61' certification on the grey collet.
3.3 Disconnecting Tubing
- To release the tubing, push the collet (the grey ring) inwards towards the fitting body.
- While holding the collet in, pull the tubing out of the connector.
4. Operating Instructions
Once properly installed, the Whale Quick-Connect plumbing connector provides a sealed and reliable pathway for water flow within your system. After installation, it is recommended to pressurize the system and carefully inspect all connections for any signs of leakage before full operation.
5. Maintenance
The Whale Quick-Connect fitting is designed for long-term reliability with minimal maintenance.
- Regular Inspection: Periodically inspect all connections for any signs of wear, damage, or leakage. Address any issues promptly.
- Environmental Protection: Ensure the connector and tubing are not exposed to harsh chemicals or excessive UV radiation that could degrade the polyethylene material.
- Stress Avoidance: Avoid subjecting the tubing or connector to excessive bending, pulling, or twisting forces at the connection point, as this can compromise the seal.
- Cleaning: If necessary, clean the exterior of the connector with mild soap and water. Do not use abrasive cleaners or solvents.
6. Troubleshooting
If you encounter issues with your Whale Quick-Connect fitting, consider the following troubleshooting steps:
6.1 Leakage at Connection
- Tubing Not Fully Inserted: Ensure the tubing is pushed firmly into the connector until it bottoms out and the gripper mechanism is fully engaged.
- Improper Tubing Cut: Verify that the tubing end is cut squarely and is free of burrs or scratches that could damage the O-ring seal.
- Incorrect Tubing Size: Confirm that the tubing used has an exact 15mm outside diameter. Using undersized or oversized tubing will result in leaks.
- Damaged O-ring or Collet: If the O-ring or collet mechanism is visibly damaged, the fitting may need to be replaced.
- Excessive Pressure/Temperature: Ensure the operating pressure and temperature do not exceed the specified ratings (180 PSI @ 68°F, 90 PSI @ 180°F).
6.2 Difficulty Inserting/Removing Tubing
- Insertion Difficulty: Ensure the tubing end is clean and free of obstructions. A slight twist while pushing can sometimes help.
- Removal Difficulty: Make sure the collet is fully and evenly depressed towards the fitting body before attempting to pull the tubing out. Do not force removal without depressing the collet.
7. Specifications
| Model Number | WX1504 |
| Connector Type | Coupling, Straight |
| Tubing Compatibility | 15mm outside diameter |
| Material | Polyethylene |
| Pressure Rating | 180 PSI @ 68°F (20°C), 90 PSI @ 180°F (82°C) |
| Water Compatibility | Hot and Cold Water |
| Item Weight | 50 g (0.05 Kilograms) |
| Parcel Dimensions | 19.7 x 9.4 x 4.7 cm |
| Country/Region of Origin | United Kingdom |
