HQRP LED Light Bulb User Manual

Product Overview

The HQRP 7/16" (E12) Base 64 LEDs SMD 3014 LED Sewing Machine Light Bulb is designed as a high-quality, energy-efficient replacement for incandescent bulbs. Operating at 110V with 3W power, it emits a cool white light (6000-6500K). This LED bulb offers significant advantages in terms of efficiency, safety, and durability compared to traditional bulbs.

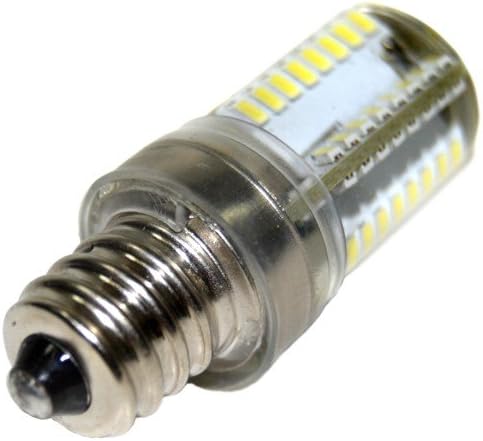

Image: A close-up view of the HQRP LED light bulb, showcasing its clear casing and multiple LED chips.

Image: The HQRP LED light bulb displayed next to its blue and white packaging, highlighting the brand's commitment to quality replacement parts.

Compatibility

This HQRP LED light bulb is compatible with various Brother sewing machine models, including:

Brother LS-2250PRW
Brother LS-2720
Brother LS-2725
Brother LS-2820
Brother LS-2825
Brother LS-2920
Brother LX-3125

It is also suitable for other applications requiring an E12 base bulb, such as ovens, range hoods, and refrigerators, as demonstrated in the images below.

HQRP LED Light Bulb in various applications

Image: A collage showing the HQRP LED light bulb used in different household appliances, including an oven, range hood, sewing machine, and refrigerator, illustrating its versatility.

Setup and Installation

Before installing the HQRP LED light bulb, ensure the power to the appliance is turned off and unplugged to prevent electrical shock. Allow any existing bulb to cool down completely before handling.

Power Off: Disconnect the appliance from its power source.
Remove Old Bulb: Carefully unscrew the old bulb from its socket. If the bulb is broken, use appropriate safety measures to remove it.
Insert New Bulb: Gently screw the HQRP LED bulb into the E12 base socket until it is snug. Do not overtighten.
Restore Power: Plug the appliance back into the power source.
Test: Turn on the appliance to verify the new LED bulb is functioning correctly.

The compact design of the bulb ensures it fits into standard E12 sockets.

Image: A detailed close-up of the HQRP LED light bulb, showing the E12 screw base and the arrangement of the LED components.

Operating Instructions

The HQRP LED light bulb operates like a standard light bulb. Once installed, it will illuminate when power is supplied to the socket. There are no special operating procedures required for this LED bulb beyond the normal operation of your appliance's light function.

Instant On: The LED bulb provides instant full brightness upon activation.
Cool Operation: Unlike incandescent bulbs, LED technology ensures the bulb remains cool to the touch during operation, reducing the risk of burns.
Energy Efficiency: Enjoy significant energy savings due to the low power consumption of LED technology.

Image: The HQRP LED light bulb positioned next to icons representing its key features: energy saving, long life span, 360-degree beam angle, and eco-friendly design.

Maintenance

The HQRP LED light bulb requires minimal maintenance due to its durable design and long lifespan. Follow these guidelines for optimal performance:

Cleaning: If necessary, gently wipe the bulb with a dry, soft cloth when the power is off and the bulb is cool. Do not use liquid cleaners.
Replacement: Replace the bulb only when it ceases to function. The expected service life of this LED bulb is significantly longer than traditional incandescent bulbs.
Handling: Avoid touching the glass part of the bulb with bare hands during installation or removal, as oils from your skin can reduce its lifespan.

Troubleshooting

If your HQRP LED light bulb is not functioning as expected, consider the following troubleshooting steps:

Problem	Possible Cause	Solution
Bulb does not light up.	No power to the socket. Bulb not screwed in properly. Bulb is faulty.	Check power supply to the appliance. Ensure the bulb is securely screwed into the socket. Test the bulb in another working socket, or try a different bulb in the current socket to isolate the issue.
Bulb flickers.	Loose connection. Incompatible dimmer switch (this bulb is not specified as dimmable).	Ensure the bulb is tightly screwed in. If connected to a dimmer, remove the dimmer or use a non-dimmable circuit.

Specifications

Detailed specifications for the HQRP LED Light Bulb:

Base Type: 7/16" (E12) Candelabra Base
LED Type: 64 LEDs SMD 3014
Working Voltage: 110V AC
Power Consumption: 3 Watts
Lumen Output: 300-350 Lumens
Color Temperature: Cool White 6000K-6500K
Light Source Type: LED
Material: Copper
Model Number: 8877747091815104
UPC: 887774951734
Country of Origin: China

Image: A graphic illustrating key specifications of the HQRP LED light bulb, including its E12 base, cool white light color (6000K-6500K), 3W wattage, and 110V voltage.

Image: A diagram showing the precise dimensions of the HQRP LED light bulb, indicating a length of 2 inches (50.9 mm) and a width of 45/64 inches (17.8 mm).

Warranty and Support

While specific warranty details are not provided in this manual, HQRP branded products are designed as high-quality replacements. The advanced LED technology used in this bulb ensures a service life duration that significantly exceeds that of traditional incandescent bulbs, offering long-term reliability and performance.

For further support or inquiries, please refer to the official HQRP website or contact their customer service directly. Always ensure you are purchasing genuine HQRP products for guaranteed quality and compatibility.

Disclaimer: This is not an Original Equipment Manufacturer (OEM) product. HQRP branded product is a replacement. All brand names and logos are registered trademarks of their respective owners. Any use of the brand names or model designations for this product are made solely for purposes of demonstrating compatibility.

HQRP 8877747091815104
