Monroe OESpectrum 72899 Suspension Strut User Manual

1. Introduction

This manual provides essential information for the Monroe OESpectrum 72899 Suspension Strut. Designed to restore a vehicle's original factory drivability and performance, this strut offers an exceptional level of handling precision and control while filtering out noise, vibration, and harshness. It is specifically engineered for Chrysler 300 vehicles.

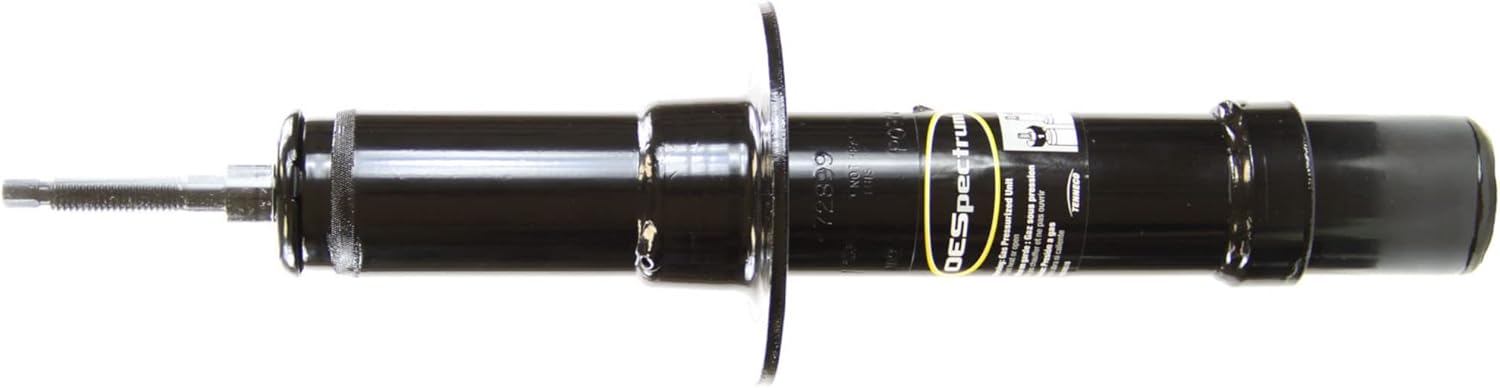

A detailed view of the Monroe OESpectrum 72899 Suspension Strut, showcasing its robust construction and design.

2. Product Features

The Monroe OESpectrum 72899 Suspension Strut incorporates advanced technologies to enhance vehicle performance and comfort:

• All Weather Fluid: Contains special modifiers to reduce friction and ensure smooth rod reaction across varying temperatures.
• Rod Displaced Valving: Tuned specifically for each application, this valving automatically adjusts to road extremes to provide consistency and ride comfort.
• Fluon Banded Piston: The fluon band provides consistent sealing between the piston and pressure tube, delivering better control and increased durability.
• Twin Technology™ Active Control System: Delivers exceptional control under most driving conditions while isolating impact-related noise, vibration, and harshness.
• High Pressure Nitrogen Gas Charge: Maintains tire-to-road contact for improved ride and handling, while tight damping response provides vehicle control.

Feature Visualizations:

This image highlights the benefit of reduced noise, vibration, and harshness, achieved through the strut's Twin Technology™ Active Control System, providing exceptional control and isolating impact-related disturbances.

Depicts the internal components responsible for exceptional handling. The rod displaced valving is specifically tuned for each application, adjusting to road extremes for consistent and smooth ride performance.

A cutaway view showing the fluon-banded piston, which ensures consistent sealing between the piston and pressure tube. This design contributes to better control and increased durability of the strut.

Illustrates the flow of OE all-weather fluid within the strut. This fluid contains special additives that help reduce friction and ensure smooth rod reaction across extreme temperatures, contributing to a consistent ride.

Shows the strut assembly, emphasizing how the high-pressure nitrogen gas charge maintains tire-to-road contact. This feature improves ride quality and handling, while tight damping response enhances overall vehicle control.

3. Setup and Installation

Installation of suspension components requires specialized tools and knowledge. It is highly recommended that the Monroe OESpectrum 72899 Suspension Strut be installed by a qualified automotive technician.

General Installation Guidelines:

1. Safety First: Always ensure the vehicle is securely supported on a lift or jack stands. Wear appropriate personal protective equipment.
2. Prepare Vehicle: Remove the wheel and any components obstructing access to the existing strut assembly.
3. Remove Old Strut: Carefully disconnect brake lines, ABS sensors, and sway bar links. Unbolt the top and bottom mounting points of the old strut.
4. Install New Strut: Position the new Monroe OESpectrum 72899 Strut, ensuring proper alignment. Secure all mounting hardware, including any included mounting hardware and parts packs, to the manufacturer's torque specifications.
5. Reassemble: Reconnect all disconnected components and reinstall the wheel.
6. Post-Installation: It is crucial to perform a wheel alignment after replacing suspension components to ensure proper vehicle handling and tire wear.

4. Operating Principles

A suspension strut is a critical component of your vehicle's suspension system, combining the functions of a shock absorber and a coil spring support. The Monroe OESpectrum 72899 Strut works by dampening the oscillations of the vehicle's springs, controlling wheel movement, and maintaining consistent tire contact with the road surface. This control is achieved through the precise movement of hydraulic fluid within the strut, regulated by the specialized valving and piston design. The OESpectrum technology ensures a balanced performance, offering both responsive handling and a comfortable ride by adapting to various road conditions.

5. Maintenance

Proper maintenance of your vehicle's suspension system, including the Monroe OESpectrum 72899 Struts, is essential for safety and longevity.

• Regular Inspection: Periodically inspect the struts for signs of wear, such as fluid leaks, bent rods, damaged boots, or excessive corrosion.
• Check Mounting Points: Ensure all mounting bolts are secure and torqued to specification.
• Tire Wear: Uneven or premature tire wear can indicate suspension issues. Address these promptly.
• Professional Check-ups: Have your suspension system professionally inspected during routine vehicle maintenance.

6. Troubleshooting

If you experience any of the following symptoms, your suspension struts may require inspection or replacement:

• Excessive Bouncing: The vehicle continues to bounce after hitting a bump.
• Poor Handling: Reduced steering response, body roll during turns, or nose-diving during braking.
• Unusual Noises: Clunking, rattling, or squeaking sounds coming from the suspension.
• Fluid Leaks: Visible oil or fluid leaking from the strut body.
• Uneven Ride Height: One corner of the vehicle sits lower than the others.

If you observe any of these issues, it is recommended to have your vehicle inspected by a certified technician to diagnose the problem accurately.

7. Specifications

8. What's in the Box

The Monroe OESpectrum 72899 Suspension Strut package typically includes:

• Monroe OESpectrum 72899 Suspension Strut
• Mounting Hardware
• Parts Pack(s)

9. Warranty and Support

Monroe products are backed by a manufacturer's warranty. For specific warranty details, terms, and conditions, please refer to the documentation included with your purchase or visit the official Monroe website. For technical support, installation assistance, or any product-related inquiries, please contact Monroe customer service directly.
