Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your SIAMP Primo toilet cistern. Please read these instructions carefully before installation and keep them for future reference.
The SIAMP Primo cistern is designed for floor-standing toilets, featuring a ceramic-like appearance and UV-treated tank and lid for durability. It includes a pre-set 6-liter flush mechanism and offers flexible side water supply connections.
Product Overview

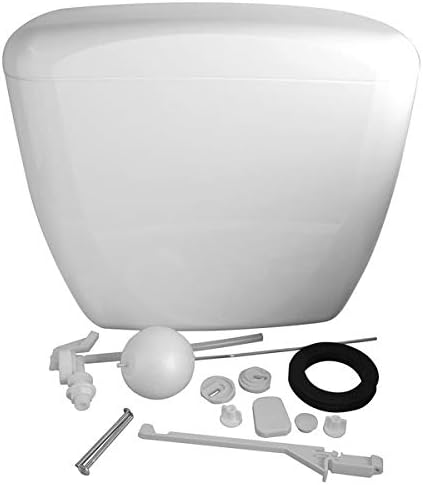

Figure 1: SIAMP Primo toilet cistern shown with its internal components, including the float valve, flush mechanism, and connection accessories. The cistern has a smooth, white, ceramic-like finish.
The SIAMP Primo cistern is a 9-liter capacity unit designed for external mounting directly onto a floor-standing toilet bowl. It features a side lever for activation and a pre-regulated 6-liter flush mechanism. The tank and lid are treated for UV resistance, ensuring long-lasting appearance. Water supply can be connected from either the right or left side.
- Designed for floor-standing toilets.
- Installation directly above the toilet bowl.
- Side lever activation.
- UV-treated tank and lid with ceramic-like finish.
- 9-liter tank capacity.
- Pre-set 6-liter flush mechanism.
- Lateral water supply connection (right or left).
- M3/8" connection.
- Includes toilet bowl gasket.
Setup and Installation
Before beginning installation, ensure you have all necessary tools and components. Turn off the main water supply to the toilet area.
- Prepare the Toilet Bowl: Ensure the toilet bowl is clean and ready for cistern attachment.
- Attach Cistern to Toilet Bowl: Position the cistern directly onto the toilet bowl. Use the provided gasket (giunto vaso) to create a watertight seal between the cistern and the toilet bowl inlet. Secure the cistern using appropriate fasteners (not explicitly mentioned but implied by "giunto vaso" and standard installation).
- Connect Water Supply: The cistern supports lateral water supply from either the right or left side. Connect the M3/8" water supply line to the appropriate inlet on the cistern. Ensure all connections are tight to prevent leaks.
- Install Flush Mechanism: The flush mechanism is pre-regulated to 6 liters. Ensure it is correctly seated and operational within the cistern.
- Install Side Lever: Attach the side activation lever according to the instructions provided with the mechanism.
- Fill and Test: Slowly turn on the main water supply. Allow the cistern to fill. Check for any leaks around the connections and the cistern base. Activate the flush lever to test the flush mechanism.
Note: If you are unsure about any step, it is recommended to consult a qualified plumber.
Operating Instructions
The SIAMP Primo cistern is designed for simple and efficient operation.
- Flushing: To flush the toilet, simply press down on the side activation lever. The pre-set 6-liter flush mechanism will activate, releasing water into the toilet bowl.
- Refilling: After flushing, the cistern will automatically refill to its optimal level. The float valve controls the water intake, stopping when the cistern is full.
The cistern is designed for a single flush volume of 6 liters, optimizing water usage.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your SIAMP Primo cistern.
- Cleaning: Clean the exterior of the cistern and lid regularly with a soft cloth and mild, non-abrasive cleaner. Avoid harsh chemicals that could damage the UV-treated surface.
- Internal Inspection: Periodically inspect the internal components (float valve, flush mechanism) for any signs of wear, mineral buildup, or damage.
- Leak Checks: Regularly check for any signs of water leaks around the cistern base, water supply connection, or inside the toilet bowl. Address any leaks promptly to prevent water waste and potential damage.
- UV Treatment: The tank and lid are UV-treated to resist discoloration. Avoid prolonged exposure to direct sunlight if possible, although the treatment provides significant protection.
Troubleshooting
Here are some common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Cistern not filling or filling slowly | Water supply turned off; blocked inlet valve; faulty float valve. | Check water supply; clean or replace inlet valve; adjust or replace float valve. |
| Cistern continuously running/leaking into bowl | Faulty flush valve seal; float valve set too high; debris in flush valve. | Inspect and clean/replace flush valve seal; adjust float arm; clean flush valve. |
| Weak flush | Insufficient water level; partial blockage in flush mechanism or toilet bowl. | Check float valve setting; clear any blockages in the flush mechanism or toilet. |
| Water leaking from cistern exterior | Loose connections; cracked cistern; faulty gasket. | Tighten connections; inspect cistern for damage (replace if cracked); replace gaskets. |
If problems persist after attempting these solutions, please contact SIAMP customer support or a qualified plumber.
Specifications
- Brand: SIAMP
- Model: Primo (31 5806 10)
- Manufacturer Part Number: 99486
- ASIN: B015GE1PYO
- Cistern Capacity: 9 liters
- Flush Volume: Pre-regulated 6 liters
- Installation Type: For floor-standing toilets
- Water Supply Connection: Lateral (right or left), M3/8"
- Dimensions (Approximate):
- Width: 430mm
- Height: 380mm
- Depth: 150mm
- Material: UV-treated plastic with ceramic-like finish
- Activation: Side lever
Warranty and Support
The SIAMP Primo toilet cistern comes with a 10-year warranty, covering manufacturing defects under normal use and service.
For technical assistance, spare parts, or warranty claims, please contact SIAMP customer support. When contacting support, please provide your product model number (31 5806 10) and proof of purchase.
Important: Using non-original spare parts or improper installation may void your warranty.
