Eoslift W20 Electric Pallet Jack User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Eoslift W20 Electric Pallet Jack. Please read this manual thoroughly before operating the equipment to ensure proper usage and to prevent injury or damage.

Figure 1.1: The Eoslift W20 Electric Pallet Jack. This image displays the complete electric pallet jack, highlighting its blue and grey body, the tiller handle, and the forks designed for lifting and transporting pallets.

2. Safety Information

Operating heavy machinery requires strict adherence to safety protocols. Failure to follow these instructions can result in serious injury or death.

• Operator Training: Only trained and authorized personnel should operate this equipment.
• Capacity Limits: Do not exceed the maximum load capacity of 4400 lb (2000 kg). Overloading can cause instability and damage.
• Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety shoes and gloves.
• Work Area: Ensure the operating area is clear of obstructions, well-lit, and has a stable, level surface.
• Pre-Operation Check: Before each use, inspect the pallet jack for any damage, loose parts, or malfunctions. Check battery charge level.
• Emergency Stop: Familiarize yourself with the location and function of the emergency stop button.
• Load Stability: Ensure loads are centered and stable on the forks before moving.
• Charging: Charge batteries in a well-ventilated area, away from flammable materials. Use only the specified charger.
• Maintenance: Disconnect power before performing any maintenance or repairs.

3. Product Overview

The Eoslift W20 is an electric walkie pallet truck designed for efficient material handling. It features an electric drive unit and two maintenance-free batteries for reliable performance.

Key Components:

• Tiller Handle: Controls steering, drive, lift, lower, and horn functions.
• Emergency Stop Button: Immediately cuts power to the unit.
• Forks: Designed to slide under pallets for lifting and transport.
• Drive Wheel: Provides propulsion.
• Load Wheels: Located at the end of the forks, supporting the load.
• Battery Compartment: Houses the maintenance-free batteries.
• Curtis Control System: Advanced control system for smooth operation.

Figure 3.1: Close-up view of the forks on the Eoslift W20 Electric Pallet Jack. This image shows the robust construction of the forks and the polyurethane load wheels at their tips, designed for smooth movement and durability.

4. Setup and Initial Operation

4.1 Unpacking and Inspection

• Carefully remove the pallet jack from its packaging.
• Inspect for any visible damage that may have occurred during shipping. Report any damage to the carrier and supplier immediately.
• Ensure all components listed in the packing list are present.

4.2 Battery Charging

The Eoslift W20 comes with two maintenance-free batteries. For optimal performance and battery life, fully charge the batteries before initial use.

1. Locate the charging port on the pallet jack.
2. Connect the charger to the pallet jack's charging port.
3. Plug the charger into a suitable power outlet (24V/210Ah).
4. Allow the batteries to charge completely. Refer to the charger's indicator lights for charge status.
5. Once fully charged, disconnect the charger from the pallet jack and the power outlet.

Important: Always ensure the emergency stop button is engaged (pushed in) before connecting or disconnecting the charger.

5. Operating Instructions

5.1 Tiller Handle Controls

Figure 5.1: The tiller handle of the Eoslift W20 Electric Pallet Jack. This image details the control panel on the tiller, including the horn button (yellow), lift/lower controls (orange buttons), and the ergonomic grips for steering and operation.

• Drive Control: The butterfly switches on the tiller head control forward and reverse movement. Push forward for forward motion, pull back for reverse. The speed is proportional to the switch deflection.
• Lift/Lower Controls: Buttons located on the tiller head (typically orange) control the hydraulic lift and lower functions of the forks.
• Horn: The yellow button on the tiller head activates the horn to alert others.
• Emergency Reverse Button: Located at the tip of the tiller head, this button provides an emergency reverse function to prevent the operator from being pinned.

5.2 Starting the Pallet Jack

1. Ensure the emergency stop button is released (pulled out).
2. Turn the key switch (if present) to the "ON" position.
3. The battery indicator will show the current charge level.

5.3 Moving and Lifting Loads

1. Position the pallet jack squarely in front of the pallet.
2. Lower the forks completely using the lower control button.
3. Slowly drive the pallet jack forward, inserting the forks fully into the pallet.
4. Use the lift control button to raise the forks until the pallet is clear of the ground.
5. Carefully transport the load, maintaining a safe speed and clear visibility.
6. To deposit the load, position the pallet over the desired location, then use the lower control button to gently set the pallet down.
7. Once the pallet is on the ground, lower the forks completely and slowly back out the pallet jack.

Note: Always operate the pallet jack with the tiller in the operating range (between vertical and horizontal positions) to ensure proper braking and control.

6. Maintenance

Regular maintenance is crucial for the longevity and safe operation of your Eoslift W20 Electric Pallet Jack.

6.1 Daily Checks

• Check battery charge level.
• Inspect for any visible damage, leaks, or loose fasteners.
• Verify proper function of all controls (drive, lift, lower, horn, emergency stop).
• Check wheels for wear or damage.

6.2 Battery Care

The Eoslift W20 uses maintenance-free batteries (24V/210Ah). While they do not require water refilling, proper charging practices are essential.

• Always fully charge batteries after each shift or when the charge indicator shows low.
• Avoid deep discharging the batteries, as this can reduce their lifespan.
• Charge in a well-ventilated area.
• Keep battery terminals clean and free of corrosion.

6.3 General Maintenance

• Keep the pallet jack clean, especially the control panel and moving parts.
• Periodically check hydraulic fluid levels (refer to service manual for specific instructions).
• Ensure all bolts and nuts are tightened to specifications.
• Schedule regular professional inspections and servicing.

7. Troubleshooting

This section provides solutions to common operational issues. For problems not listed here or for complex repairs, contact qualified service personnel.

8. Specifications

Detailed technical specifications for the Eoslift W20 Electric Pallet Jack.

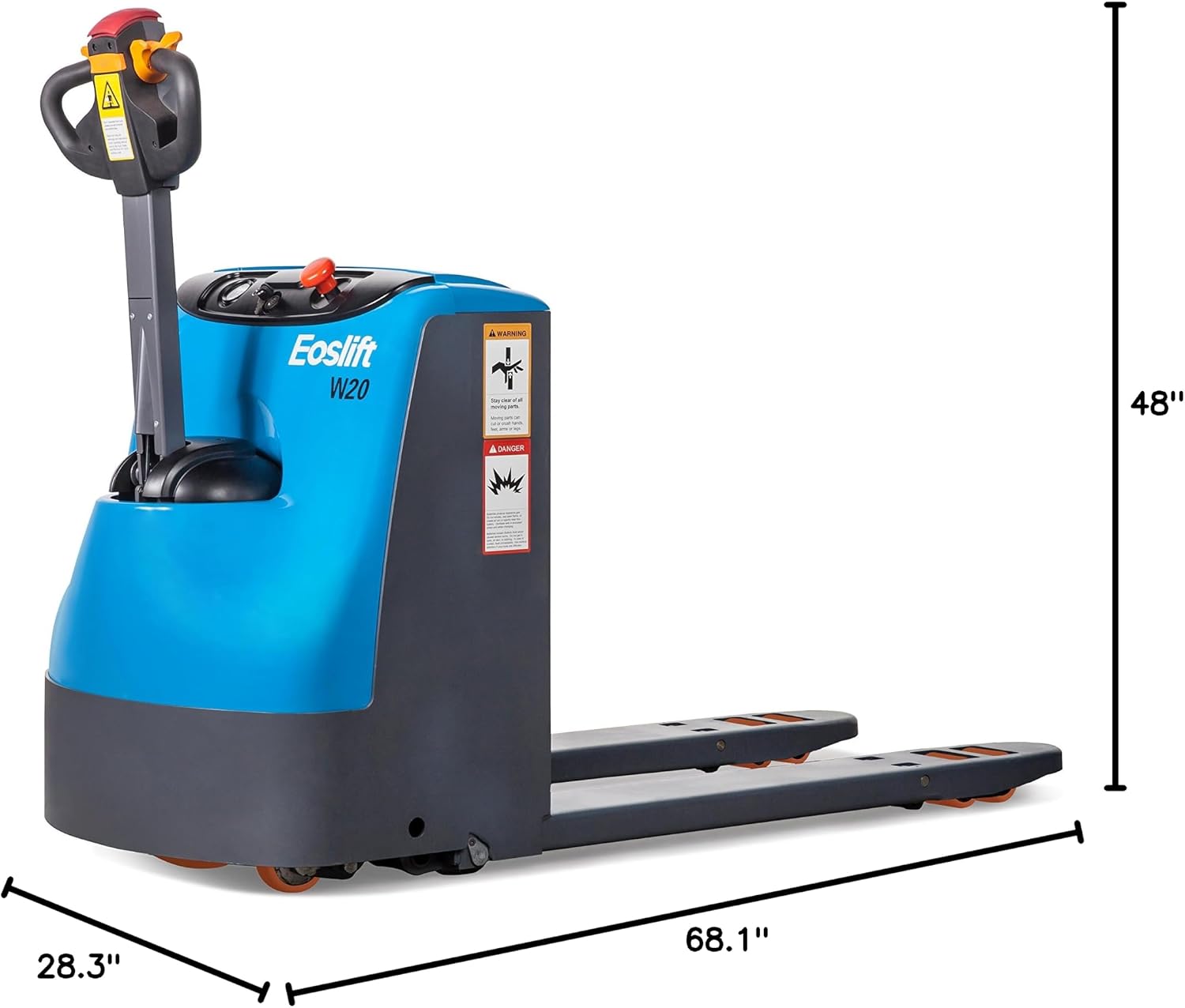

Figure 8.1: Dimensional drawing of the Eoslift W20 Electric Pallet Jack. This image illustrates the key measurements including overall length (68.1"), overall width (28.3"), and maximum height of the tiller (48").

9. Warranty and Support

For warranty information, technical support, or to order replacement parts, please contact your authorized Eoslift dealer or visit the official Eoslift website. Keep your purchase receipt and model number (W20) readily available when contacting support.

Manufacturer: Eoslift
