Ikea BESTA TV Unit, Brown-Black (120 x 40 x 38 cm) Instruction Manual

1. Product Overview

This manual provides detailed instructions for the assembly, use, and maintenance of your Ikea BESTA TV Unit. The unit is designed to accommodate televisions and other media devices, offering practical storage and cable management solutions.

• Dimensions: Width 120 cm, Depth 40 cm, Height 38 cm
• Maximum Load: 50 kg
• Maximum Flat Screen TV Size: 50 inches

The BESTA TV unit can be placed on the floor or mounted on the wall to free up floor space. It features multiple openings at the back for convenient cable management.

Figure 1: Assembled Ikea BESTA TV unit, featuring two open compartments and a central divider, in a brown-black finish.

2. Safety Information

Caution: Carefully read all assembly instructions before assembling the TV unit and mounting it to the wall. Failure to follow these instructions may result in injury or damage to the product.

• Stability: Ensure the TV unit is stable, especially if placed on uneven floors. Adjustable feet are included to help achieve stability.
• Maximum Load: Do not exceed the maximum load capacity of 50 kg on the top surface of the TV unit.
• Wall Mounting: If wall-mounting the unit, the type of fastening depends on your wall material. Use screws and wall plugs sold separately that are appropriate for your specific wall type. Wall fixings are included, but specific screws/plugs are not.
• Small Parts: After assembly, store all small parts and screws in a safe place, out of reach of children, to prevent injuries.

3. Assembly Instructions

Assembly of the BESTA TV unit is required. Please follow the detailed instructions provided in the packaging. The general steps involve:

1. Unpack Components: Carefully unpack all parts and hardware. Verify that all components are present according to the included parts list.
2. Assemble Frame: Follow the step-by-step diagrams to assemble the main frame of the TV unit, including the top, bottom, side panels, and internal divider.
3. Attach Back Panel: Secure the back panel to the assembled frame.
4. Install Adjustable Feet: If placing the unit on the floor, attach the adjustable feet. These feet allow for stable positioning even on uneven surfaces.
5. Optional Feet: For enhanced stability and aesthetic, the BESTA TV unit can be complemented with 4 Stubbarp or Nannarp feet and 1 support foot (sold separately).
6. Wall Mounting (Optional): If you choose to wall-mount the unit, use the included wall fixings. However, you must select appropriate screws and wall plugs for your specific wall material (e.g., drywall, concrete, wood studs). Consult a professional if unsure.

Materials:

• Cover plate / Bottom plate / Side part / Partition: Particleboard, Recycled paper honeycomb filling, Fibreboard, Foil, ABS plastic.
• Back panel: Fibreboard, Foil.

4. Operating Instructions

The BESTA TV unit is designed for straightforward use:

• Placement: Place your television on the top surface of the unit. Ensure the TV's base fits within the unit's dimensions and does not exceed the 50 kg weight limit.
• Cable Management: Utilize the multiple openings at the back of the TV unit to route and conceal cables from your television and other electronic devices. This keeps cables organized and out of sight while remaining accessible.

Figure 2: Rear view of the BESTA TV unit, illustrating the multiple openings for routing and concealing cables.

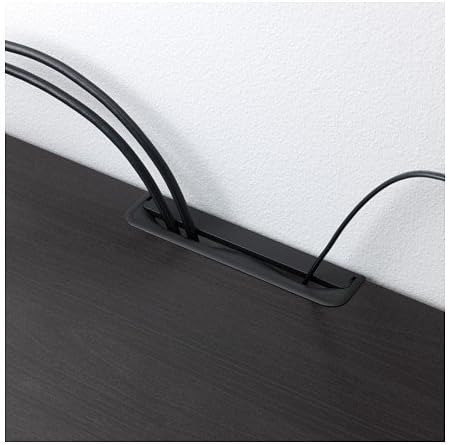

Figure 3: A close-up view of the top surface of the BESTA TV unit, showing the integrated cable opening for neat wire management.

The interior fittings from the BESTA series can be added to optimize the use of all compartments (sold separately).

5. Maintenance

To maintain the appearance and longevity of your BESTA TV unit:

• Cleaning: Wipe clean with a dry cloth. Avoid using abrasive cleaners or harsh chemicals.
• Inspection: Periodically check all screws and fittings to ensure they are tight. Retighten if necessary.

6. Troubleshooting

No specific troubleshooting information is provided for this product. If you encounter issues during assembly or use, please refer to the detailed assembly instructions included with the product or contact Ikea customer support.

7. Specifications

8. Warranty and Support

For information regarding warranty coverage, spare parts availability, or customer support, please refer to the documentation provided with your purchase or visit the official Ikea website. You can also contact Ikea customer service directly for assistance with your BESTA TV unit.
