EPAuto CP285 (CF10285) Premium Cabin Air Filter Instruction Manual

1. Introduction

The EPAuto CP285 (CF10285) Premium Cabin Air Filter is designed to provide clean and fresh air for vehicle occupants. This filter incorporates activated carbon to enhance air quality by reducing odors and trapping various airborne particles. Regular replacement ensures optimal performance of your vehicle's heating, ventilation, and air conditioning (HVAC) system.

2. Compatibility

This cabin air filter is compatible with a wide range of vehicle makes and models. Please verify your vehicle's specific requirements before installation.

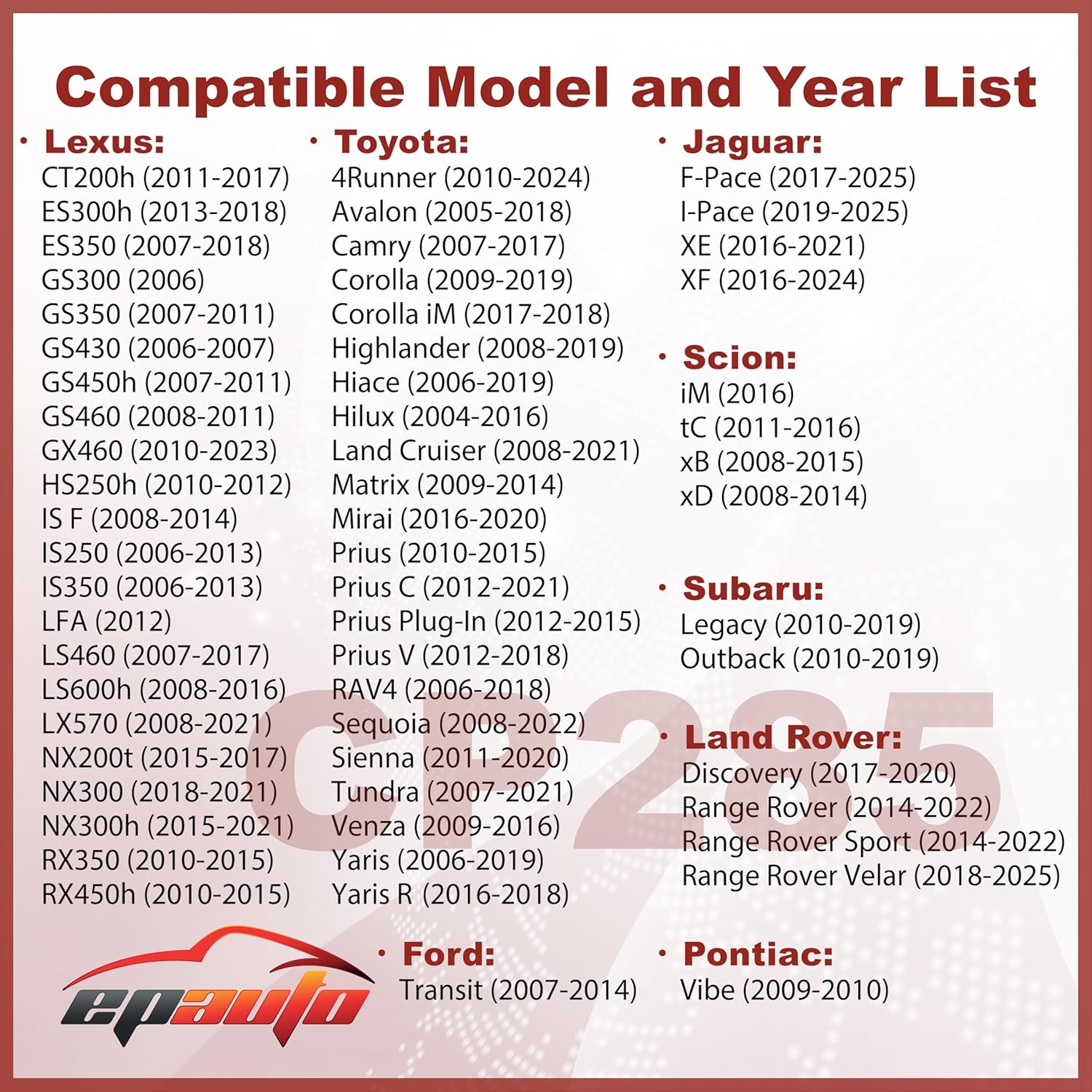

2.1 Compatible Vehicle Models:

• Toyota: 4Runner (2010-2024), Avalon (2005-2018), Camry (2007-2017), Corolla (2009-2019), Corolla iM (2017-2018), Highlander (2008-2019), Land Cruiser (2008-2021), Matrix (2009-2014), Mirai (2016-2020), Prius (2010-2015), Prius C (2012-2021), Prius Plug-In (2012-2015), Prius V (2012-2018), RAV4 (2006-2018), Sequoia (2008-2022), Sienna (2011-2020), Tundra (2007-2021), Venza (2009-2016), Yaris (2006-2019), Yaris R (2016-2018), Hiace (2006-2019), Hilux (2004-2016)
• Lexus: CT200h (2011-2017), ES300h (2013-2018), ES350 (2007-2018), GS300 (2006), GS350 (2007-2011), GS430 (2006-2007), GS450h (2007-2011), GS460 (2008-2011), GX460 (2010-2023), HS250h (2010-2012), IS F (2008-2014), IS250 (2006-2013), IS350 (2006-2013), LFA (2012), LS460 (2007-2017), LS600h (2008-2016), LX570 (2008-2021), NX200t (2015-2017), NX300 (2018-2021), NX300h (2015-2021), RX350 (2010-2015), RX450h (2010-2015), UX200 (2020)
• Subaru: Legacy (2010-2019), Outback (2010-2019)
• Jaguar: F-Pace (2017-2025), I-Pace (2019-2025), XE (2016-2021), XF (2016-2024)
• Land Rover: Discovery (2017-2020), Range Rover (2014-2022), Range Rover Sport (2014-2022), Range Rover Velar (2018-2025)
• Scion: iM (2016), tC (2011-2016), xB (2008-2015), xD (2008-2014)
• Pontiac: Vibe (2009-2010)
• Ford: Transit (2007-2014)

2.2 Cross-Reference OEM Part Numbers:

This filter is a replacement for various OEM part numbers, including:

• Toyota Genuine Part#: 87139-02020, 87139-02090, 87139-06040, 87139-06080, 87139-07010, 87139-07020, 87139-08030, 87139-0D010, 87139-0D070, 87139-30040, 87139-30070, 87139-47010, 87139-47010-83, 87139-48020, 87139-50060, 87139-50100, 87139-52020, 87139-52040, 87139-60020, 87139-76010, 87139-YZZ08, 87139-YZZ10, 87139-YZZ16, 87139-YZZ20
• Subaru / General Motors / Jaguar Genuine Part#: 72880-AJ000, 72880-AJ00A, 72880-AL00A, 87139-52020, SEDNF-29100, SEDNF-29110, 19184673, C2S 52338

3. Features

• Activated Carbon: Contains soda and carbon to generate fresh breeze air, effectively reducing odors.
• Enhanced HVAC Performance: Improves the efficiency of your vehicle's heating, ventilation, and air conditioning system.
• Clean Air: Filters out dust, pollen, exhaust fumes, and other irritants for a cleaner cabin environment.

4. Installation Instructions (Setup)

Replacing your cabin air filter is a straightforward process, typically located behind the glove box. Always refer to your vehicle's owner's manual for specific instructions and diagrams, as procedures may vary slightly between models.

General Steps:

1. Empty Glove Box: Remove all contents from your glove box.
2. Access Filter Housing: Open the glove box completely. Depending on your vehicle, you may need to detach a damper arm or press in on the sides of the glove box to allow it to swing down further, revealing the filter housing.
3. Remove Filter Housing Cover: Locate the cabin air filter housing cover. This usually has clips on either side that need to be pressed or unlatched to remove the cover.
4. Remove Old Filter: Carefully pull out the old cabin air filter. Note its orientation, especially the 'AIR FLOW' arrow.
5. Clean Housing: Inspect the filter housing for any debris and clean if necessary.
6. Install New Filter: Insert the new EPAuto CP285 cabin air filter into the housing. Ensure the 'AIR FLOW' arrow on the filter points in the correct direction, typically downwards or towards the rear of the vehicle, as indicated by your vehicle's manual or the old filter's orientation.
7. Replace Cover and Glove Box: Reattach the filter housing cover, ensuring it clicks securely into place. Reinstall the glove box by reversing the removal steps.

5. Maintenance

For optimal air quality and HVAC system performance, it is recommended to replace your EPAuto CP285 (CF10285) Premium Cabin Air Filter every 12 months or 12,000 miles, whichever comes first. Driving in dusty or polluted environments may necessitate more frequent replacement.

6. Troubleshooting

If you experience reduced airflow, persistent odors, or increased fan noise after installation, consider the following:

• Check Installation: Ensure the filter is seated correctly within the housing and the housing cover is securely closed.
• Verify Air Flow Direction: Confirm that the 'AIR FLOW' arrow on the filter is pointing in the correct direction as specified by your vehicle's manual.
• Inspect for Obstructions: Check the air intake area for any leaves or debris that might be blocking airflow.
• Filter Type: Ensure you have installed the correct filter model for your specific vehicle.

7. Specifications

8. Warranty and Support

Specific warranty information for the EPAuto CP285 (CF10285) Premium Cabin Air Filter is not provided in this manual. For warranty details or technical support, please refer to the product packaging or contact EPAuto customer service directly through their official website or the retailer where the product was purchased.
