Important Safety Instructions
Always read and understand this instruction manual before operating the Sun Joe HJ22HTE electric hedge trimmer. Failure to follow all instructions may result in electric shock, fire, and/or serious personal injury. Keep this manual for future reference.
- Wear Eye Protection: Always wear safety glasses or goggles with side shields that comply with ANSI Z87.1 when operating the hedge trimmer.
- Wear Hearing Protection: Use ear protection to prevent hearing damage during prolonged use.
- Keep Hands Clear: Never place hands or any part of your body near the cutting blades. Blades remain sharp after power is off.
- Disconnect Power: Always disconnect the hedge trimmer from the power supply before performing any adjustments, cleaning, or maintenance.
- Secure Grip: Maintain a firm grip on both handles of the hedge trimmer during operation. The dual-handed safety switch requires both hands to operate, enhancing user safety.
- Avoid Wet Conditions: Do not operate the hedge trimmer in wet or damp conditions.
- Use Proper Extension Cord: Ensure the extension cord is suitable for outdoor use and rated for the trimmer's power requirements.
- Inspect Before Use: Before each use, inspect the hedge trimmer for any damaged parts, loose connections, or frayed cords. Do not use if damaged.
Assembly and Setup
Unpacking
Carefully remove the hedge trimmer and all accessories from the packaging. Ensure all items are present and undamaged.
- Sun Joe HJ22HTE Electric Hedge Trimmer
- Safety Blade Cover
- Safety Guard
- Extension Cord Restraint Hook
- Instruction Manual
Attaching the Safety Guard
The safety guard helps protect the user from flying debris. Align the safety guard with the mounting slots on the trimmer body and secure it firmly. Refer to the diagram below for proper attachment.

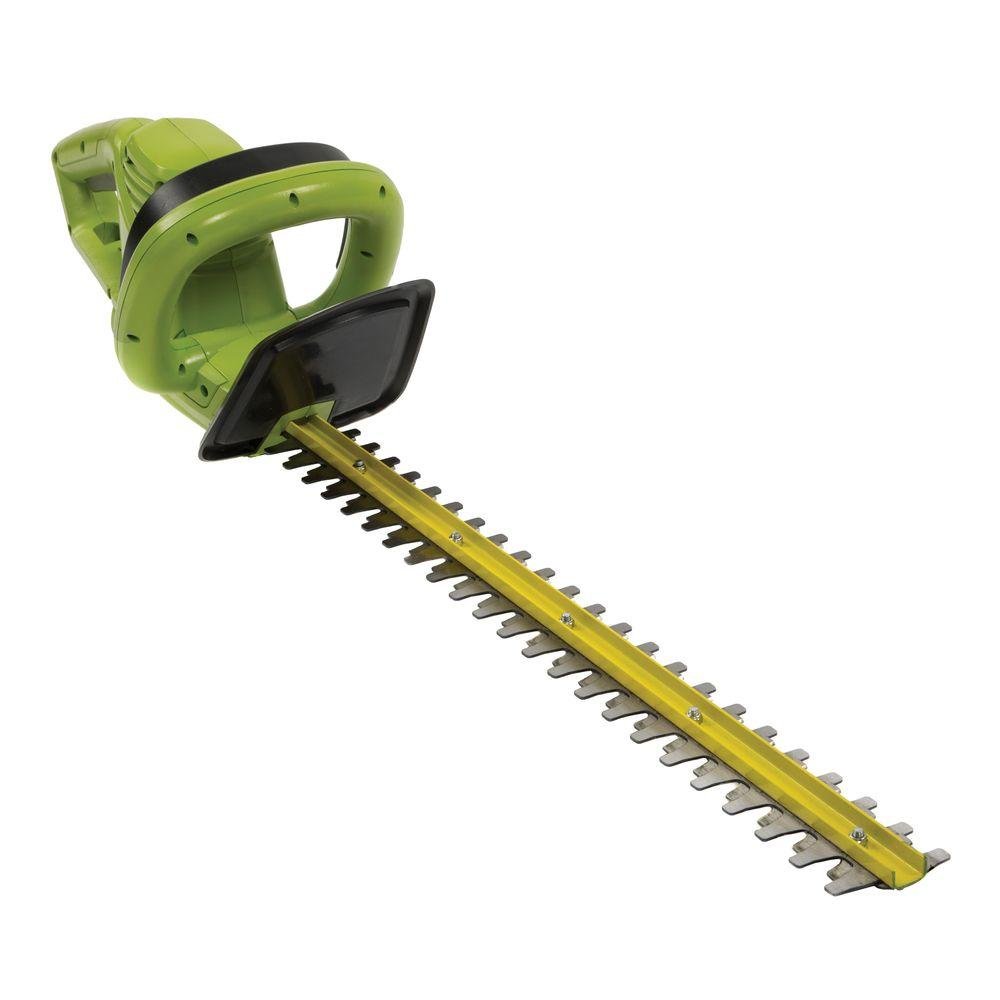

Image: The Sun Joe HJ22HTE electric hedge trimmer with the safety guard attached, ready for use.
Connecting to Power
This hedge trimmer is corded electric. Use a suitable outdoor extension cord. The extension cord restraint hook prevents accidental disconnection during operation.
- Form a loop with the extension cord and push it through the hole in the rear handle.
- Hook the loop over the extension cord restraint hook.
- Plug the trimmer's power cord into the extension cord.
- Ensure the connection is secure and the cord is positioned to avoid entanglement or cutting.
Operating Your Hedge Trimmer
Before Operation
- Clear the work area of any obstacles, debris, or people.
- Inspect the hedge or shrub for hidden wires, fences, or other objects that could damage the blades.
- Wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and sturdy footwear.
Starting and Stopping
The Sun Joe HJ22HTE features a dual-handed safety switch to prevent accidental starts.
- To start: Firmly grasp both the front handle and the rear handle. Depress the safety switch on the front handle and then squeeze the trigger switch on the rear handle.
- To stop: Release either the front safety switch or the rear trigger switch. The blades will stop quickly.
Trimming Techniques
For best results, use a sweeping motion and cut small amounts at a time. The 22-inch dual-action blades cut efficiently in both directions.
- Horizontal Trimming: Hold the trimmer with the blades slightly tilted downwards (5-10 degrees) and sweep along the top of the hedge.
- Vertical Trimming: Hold the trimmer vertically and sweep upwards, then downwards, along the sides of the hedge.
- Avoid Overreaching: Maintain a balanced stance and avoid overreaching. Use a ladder if necessary for higher areas.
- Cut Small Branches: The trimmer is designed for branches up to 0.63 inches in diameter. Do not force the blades through thicker branches.
Video: Demonstrates the Sun Joe HJ22HTE electric hedge trimmer in action, showing effective trimming techniques for shrubs and hedges.
Maintenance
Blade Care
- Cleaning: After each use, disconnect power and use a stiff brush to remove debris from the blades. Wipe the blades with a cloth moistened with a rust inhibitor or light machine oil.
- Sharpening: Dull blades can be sharpened by a qualified service technician. Do not attempt to sharpen blades yourself unless properly trained.
- Rust Prevention: Apply a thin coat of machine oil to the blades before storage to prevent rust.
Storage
- Store the hedge trimmer in a dry, secure location, out of reach of children.
- Always place the safety blade cover over the blades before storing.
- Avoid storing near corrosive materials or in areas with extreme temperatures.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Trimmer does not start | No power supply; Dual-handed safety switch not engaged; Damaged cord/plug | Check power outlet and extension cord; Ensure both switches are fully depressed; Inspect and replace damaged components. |
| Blades are dull or jammed | Excessive debris; Blades need sharpening; Attempting to cut too thick material | Disconnect power, clear debris; Have blades professionally sharpened; Only cut branches within specified diameter. |
| Excessive vibration | Loose components; Damaged blades | Check for loose screws and tighten; Inspect blades for damage and replace if necessary. |
Product Specifications
- Brand: Sun Joe
- Model Number: HJ22HTE
- Power Source: Corded Electric
- Motor: 3.5 Amp
- Voltage: 120 Volts
- Blade Length: 22 Inches
- Blade Material: Stainless Steel
- Cutting Width (Max): 0.63 Inches
- Item Weight: 5.06 Pounds
- Included Components: Safety Blade Cover, Safety Guard, Extension Cord Restraint Hook
Warranty and Support
Warranty Information
The Sun Joe HJ22HTE 22-Inch 3.5 Amp Electric Hedge Trimmer is covered by a full 2-year warranty from the date of purchase. This warranty covers defects in material and workmanship under normal use. Please retain your proof of purchase for warranty claims.
Customer Support
For technical assistance, warranty inquiries, or to order replacement parts, please contact Sun Joe customer support:
- Website: www.sunjoe.com
- Phone: 1-866-SNOWJOE (1-866-766-9563)
- Email: support@sunjoe.com
