Toolcraft TC3417 Gasoline Engine Chainsaw User Manual

1. Introduction

Thank you for choosing the Toolcraft TC3417 Gasoline Engine Chainsaw. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new chainsaw. Please read this manual thoroughly before assembly, operation, or maintenance to ensure proper use and to prevent injury or damage.

The Toolcraft TC3417 is a powerful 2-stroke gasoline engine chainsaw designed for various cutting tasks, featuring a 20-inch cutting bar for effective performance.

2. Safety Instructions

Operating a chainsaw can be dangerous if proper safety precautions are not followed. Always prioritize safety to prevent serious injury.

2.1 Personal Protective Equipment (PPE)

• Always wear a safety helmet with face shield and hearing protection.
• Wear safety glasses or goggles under the face shield for added protection.
• Use heavy-duty work gloves to protect hands.
• Wear chainsaw protective trousers or chaps.
• Wear steel-toed safety boots with good grip.

2.2 General Safety Guidelines

• Never operate the chainsaw when fatigued, under the influence of alcohol, drugs, or medication.
• Ensure the work area is clear of bystanders, children, and pets.
• Inspect the chainsaw before each use for loose parts, damage, or fuel leaks.
• Hold the chainsaw firmly with both hands, ensuring a secure grip.
• Be aware of kickback and how to avoid it.
• Do not operate the chainsaw in poor weather conditions, such as heavy rain or strong winds.
• Always turn off the engine before making adjustments, refueling, or clearing debris.

2.3 Fuel Handling Safety

• Mix and store fuel in a well-ventilated area, away from sparks or open flames.
• Use only approved fuel containers.
• Do not smoke while refueling.
• Wipe up any spilled fuel immediately.
• Move the chainsaw at least 10 feet (3 meters) from the refueling area before starting the engine.

3. Product Overview

Familiarize yourself with the main components of your Toolcraft TC3417 chainsaw.

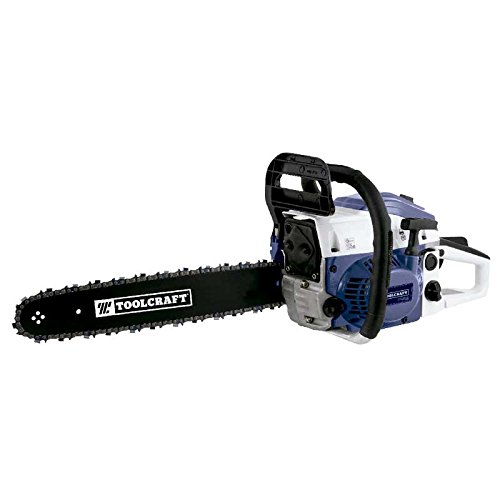

Image 1: Toolcraft TC3417 Gasoline Engine Chainsaw. This image shows the complete chainsaw assembly, including the engine housing, handles, and the 20-inch cutting bar with the chain.

Key Components:

• Engine Housing: Contains the 2-stroke gasoline engine.
• Front Handle: For stable two-hand operation.
• Rear Handle: Includes throttle control and safety features.
• Quick Brake Handle: Engages the chain brake for immediate chain stoppage.
• Cutting Bar: The guide for the saw chain, 20 inches in length.
• Saw Chain: The cutting element of the chainsaw.
• Fuel Tank: For gasoline-oil mixture.
• Oil Tank: For chain lubrication oil (often integrated or separate, check specific model).
• Starter Rope: For manual engine starting.

4. Setup

Before operating your chainsaw, proper assembly and fueling are crucial.

4.1 Fuel Mixture Preparation

The Toolcraft TC3417 uses a 2-stroke gasoline engine. It requires a specific mixture of gasoline and 2-stroke engine oil. The recommended mixture ratio is 20ml of 2-stroke oil per 1 liter of gasoline. Use a high-quality 2-stroke engine oil designed for air-cooled engines.

• Always use fresh, unleaded gasoline with an octane rating of 89 or higher.
• Carefully measure the oil and gasoline using the provided mixing bottle or a suitable measuring container.
• Mix thoroughly before pouring into the fuel tank.

4.2 Filling the Fuel Tank

• Ensure the engine is off and cool.
• Place the chainsaw on a flat, stable surface.
• Unscrew the fuel tank cap slowly to release any pressure.
• Carefully pour the prepared fuel mixture into the fuel tank, avoiding overfilling. The tank capacity is 550ml.
• Securely replace the fuel tank cap.

4.3 Chain and Bar Installation (if not pre-installed)

Refer to the detailed diagrams in your physical manual for precise steps. Generally:

• Remove the chain cover.
• Place the chain around the sprocket and guide bar, ensuring the cutting edges face the correct direction.
• Mount the guide bar onto the studs.
• Replace the chain cover and hand-tighten the nuts.
• Adjust chain tension: The chain should be snug against the bar but still able to be pulled freely by hand. There should be no slack on the underside of the bar.
• Tighten the chain cover nuts securely.

4.4 Filling the Chain Oil Tank

The chainsaw requires bar and chain oil for lubrication. This is separate from the fuel mixture.

• Use a high-quality bar and chain oil.
• Locate the chain oil tank cap (refer to your physical manual for exact location).
• Fill the tank with bar and chain oil.
• Securely replace the cap.

5. Operating Instructions

Follow these steps for safe starting and operation of your chainsaw.

5.1 Starting the Engine (Easy Start System)

• Place the chainsaw on a firm, flat surface. Ensure the chain brake is engaged (push the quick brake handle forward).
• Set the ignition switch to the 'ON' position.
• Engage the choke (if the engine is cold).
• Press the primer bulb several times until fuel is visible.
• Pull the starter rope with a smooth, steady motion until the engine fires (usually a few pulls). Do not pull the rope to its full extension.
• Once the engine fires, disengage the choke (if used).
• Pull the starter rope again until the engine starts and runs.
• Allow the engine to warm up for a few moments at idle speed.

5.2 Operating the Chainsaw

• Before cutting, disengage the chain brake (pull the quick brake handle back).
• Maintain a firm grip with both hands on the handles.
• Always stand in a balanced position.
• Apply throttle gradually to bring the chain up to speed before contacting the wood.
• Let the chainsaw do the work; do not force it.
• Be aware of falling branches and logs. Plan your cuts carefully.

5.3 Using the Quick Brake Handle

The quick brake handle is a safety feature designed to stop the chain instantly. Push the handle forward to engage the brake. Pull it back towards the front handle to disengage. Always engage the brake when moving between cuts, or if you need to momentarily release your grip on the chainsaw.

5.4 Shutting Down the Engine

• Release the throttle and allow the engine to idle.
• Engage the chain brake.
• Move the ignition switch to the 'OFF' position.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your Toolcraft TC3417 chainsaw.

6.1 Chain Sharpening

A sharp chain is essential for efficient and safe cutting. A dull chain can cause the chainsaw to work harder, leading to poor performance and increased risk of kickback. It is recommended to sharpen the chain regularly, even before its first use, as chains may not come factory-sharpened to optimal levels. Consult a professional or refer to detailed chain sharpening guides for proper technique.

6.2 Cleaning

• After each use, clean sawdust and debris from the engine housing, air filter cover, and around the chain and bar.
• Ensure the air intake vents are clear.
• Use a brush or compressed air for cleaning.

6.3 Air Filter

• Periodically inspect and clean the air filter. A clogged air filter can reduce engine performance.
• Remove the air filter cover and clean the filter element with warm, soapy water, or compressed air. Allow it to dry completely before reinstallation.

6.4 Spark Plug

• Inspect the spark plug regularly for wear or carbon buildup.
• Clean or replace the spark plug as needed to ensure reliable starting and engine performance.

6.5 Bar and Chain Lubrication

• Ensure the chain oil tank is always filled during operation.
• Check the oiler port for blockages.

7. Troubleshooting

This section addresses common issues you might encounter with your chainsaw.

7.1 Engine Will Not Start

• Check Fuel: Ensure there is fresh, properly mixed fuel in the tank.
• Ignition Switch: Verify the ignition switch is in the 'ON' position.
• Choke: Ensure the choke is engaged for cold starts and disengaged once the engine fires.
• Spark Plug: Inspect the spark plug for fouling or damage. Clean or replace if necessary.
• Primer Bulb: Ensure the primer bulb is working and fuel is visible.

7.2 Engine Runs Poorly / Lacks Power

• Air Filter: Clean or replace the air filter if it is dirty.
• Fuel Mixture: Ensure the fuel-oil mixture is correct and fresh. Stale fuel can cause issues.
• Spark Plug: Check the spark plug for proper gap and condition.

7.3 Chain Not Cutting Effectively

• Dull Chain: Sharpen the saw chain. This is a very common reason for poor cutting performance.
• Chain Tension: Adjust chain tension. A loose chain can slip or cut poorly.
• Bar and Chain Oil: Ensure the chain oil tank is filled and the oiler is functioning.

8. Specifications

9. Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the documentation included with your purchase or contact Toolcraft customer service directly. Keep your proof of purchase for warranty claims.
