Product Overview
The Siemens FS140 Whole House Surge Protection Device (SPD) is designed to protect modern homes filled with smart appliances and electronics from power surges. This commercial-grade device is rated for 140,000 Amps of surge current capacity per phase, offering robust protection for your entire electrical system.
Key features include:
- Type 2 and UL / cUL 1449 listed, meeting designated protection requirements.
- Constructed with a commercial-grade NEMA 4X enclosure for indoor or outdoor installations.
- Compatible with any brand of load center and breakers.
- Features an audible alarm and LED indicators for status monitoring.
- Equipped with ground referenced monitoring to detect compromised electrical system neutral to ground bonds.
Figure 1: Front view of the Siemens FS140 Whole House Surge Protection Device, showing the clear cover and status indicators.
Setup and Installation
Installation of the Siemens FS140 Surge Protection Device involves working with your home's electrical system. For safety and proper functionality, it is highly recommended that installation be performed by a qualified electrician in accordance with all local and national electrical codes.
The device can be installed either inside the load center or externally, thanks to its NEMA 4X rated enclosure which allows for both indoor and outdoor placement. It is designed for compatibility with any brand of load center and breakers.
For detailed installation instructions, including wiring diagrams and mounting procedures, please refer to the official user guide PDF provided by Siemens. A link to the comprehensive user guide is available here.

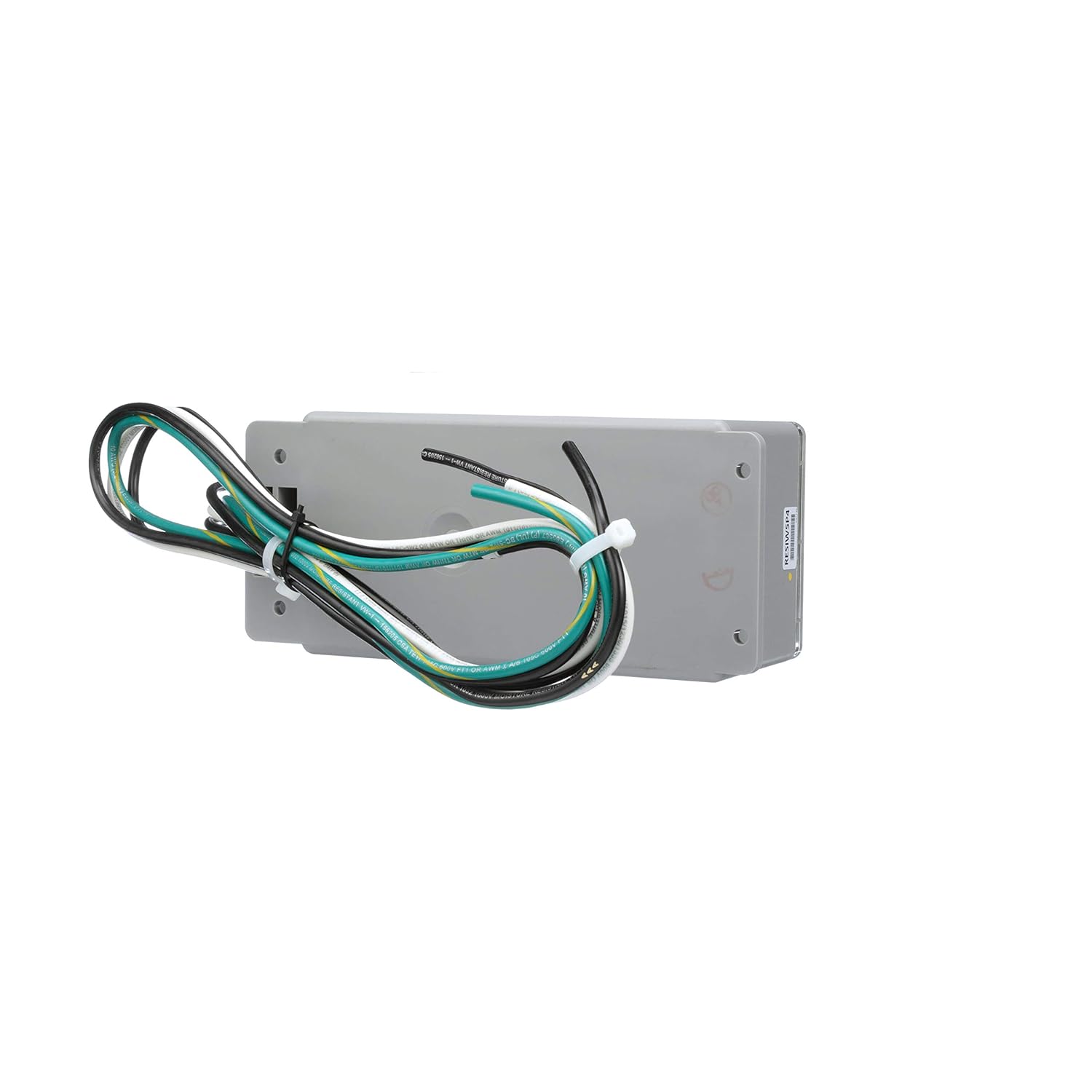

Figure 2: Rear view of the Siemens FS140, illustrating the wiring connections for installation into an electrical panel.
Operating Status Indicators
The Siemens FS140 features clear indicators to inform you of its operational status and when attention is required. Understanding these indicators is crucial for ensuring continuous protection.
- Normal Operation: When the device is functioning correctly and providing full surge protection, the green LED(s) will be lit, and there will be no audible alarm or flashing red service light.
- Device Replacement Indication: If the device has absorbed a significant surge and needs to be replaced, you will observe the following:
- Audible alarm: Beeps
- Green LED(s): Extinguish
- Red service light: Flashes
- Ground Reference Monitoring Indication: The device also monitors for a rare safety hazard caused by a compromised electrical system neutral to ground bond. If this condition is detected, you will observe:
- Audible alarm: Beeps
- Green LED(s): Remains lit
- Red service light: Flashes
Figure 3: Top view of the Siemens FS140, highlighting the location of the alarm and LED indicators for operational status.
Maintenance and Troubleshooting
The Siemens FS140 is designed for minimal maintenance. Its primary function is to protect your home from surges, and its status indicators provide clear guidance on its condition.
Maintenance
Regular maintenance is limited to observing the status indicators. No user-serviceable parts are inside the unit. Do not attempt to open or repair the device.
Troubleshooting
Troubleshooting primarily involves interpreting the device's status signals:
- Audible Alarm with Extinguished Green LEDs and Flashing Red Service Light: This indicates the surge protection module has reached its end of life and needs replacement. The device has successfully protected your home from a significant surge. Contact a qualified electrician or Siemens customer support for replacement options.
- Audible Alarm with Lit Green LEDs and Flashing Red Service Light: This signals a potential issue with your electrical system's neutral to ground bond. While the surge protection may still be active, this condition represents a safety hazard. Immediately contact a qualified electrician to inspect and correct your home's electrical wiring.
- No Lights or Alarm: If the device shows no signs of power (no green LEDs, no alarm), ensure it is properly connected to the electrical system. If connections are secure and power is present at the panel, the device may be faulty or require replacement. Consult a qualified electrician.
Specifications
| Attribute | Value |
|---|---|
| Model Number | FS140 |
| Surge Current Capacity | 140,000 Amps per phase |
| Device Type | Type 2 Surge Protective Device (SPD) |
| Certifications | UL / cUL 1449 Listed |
| Enclosure Rating | NEMA 4X (Indoor/Outdoor) |
| Product Dimensions | 10 x 6 x 4 inches (2.7 Pounds) |
| Voltage | 100 Volts (Compatible with standard residential voltages) |
| Color | Gray |
| Manufacturer | Siemens -HI |
Warranty and Support
The Siemens FS140 Whole House Surge Protection Device comes with a comprehensive 10-year product and connected equipment warranty. This warranty covers defects in materials and workmanship for the device itself, as well as protection for connected equipment under specified conditions.
For detailed information regarding warranty terms, claims procedures, or technical support, please refer to the official Siemens website or contact Siemens customer service directly. It is recommended to keep your purchase receipt for warranty purposes.
For further assistance, you may visit the official Siemens store page on Amazon: Visit the SIEMENS Store.
Additional Resources
For the most comprehensive information, including detailed installation guides and safety warnings, please download the official User Manual (PDF) from Siemens:
No official product videos from the seller were found to be embedded in this manual.
