1. Introduction
This manual provides essential information for the safe and proper installation, operation, and maintenance of the SIEMENS ECLK3225 N 225A 240V 3P Lug Kit. This product is designed as a lug kit accessory for Siemens Low Voltage Residential Specialty Load Centers, specifically for sub-feed applications. It is rated for 225 Amps, 240 Volts, and is a 3-pole component, occupying 6 spaces within the panel.
2. Safety Information
WARNING: Electrical shock hazard. Installation and servicing must be performed by qualified personnel only. Failure to follow these instructions can result in serious injury or death.
- Always disconnect power at the main service panel before installing or servicing electrical equipment.
- Use appropriate personal protective equipment (PPE), including insulated gloves and eye protection.
- Verify all connections are secure and properly torqued according to manufacturer specifications.
- Ensure all local and national electrical codes are followed during installation.
- Do not install damaged equipment. Inspect the product for any damage prior to installation.
3. Product Overview
The SIEMENS ECLK3225 is a robust lug kit designed for specific applications within Siemens electrical panels. Key features include:
- Application: Designed for sub-feed applications in Siemens Low Voltage Residential Specialty Load Centers.
- Configuration: 3-pole design.
- Current Rating: 225 Amps.
- Voltage Rating: 240 Volts maximum.
- Withstand Rating: 10,000 Amps RMS Symmetrical.
- Dimensions: Approximately 12.8" H x 5.2" W x 4.0" D.
- Material: Alloy Steel.

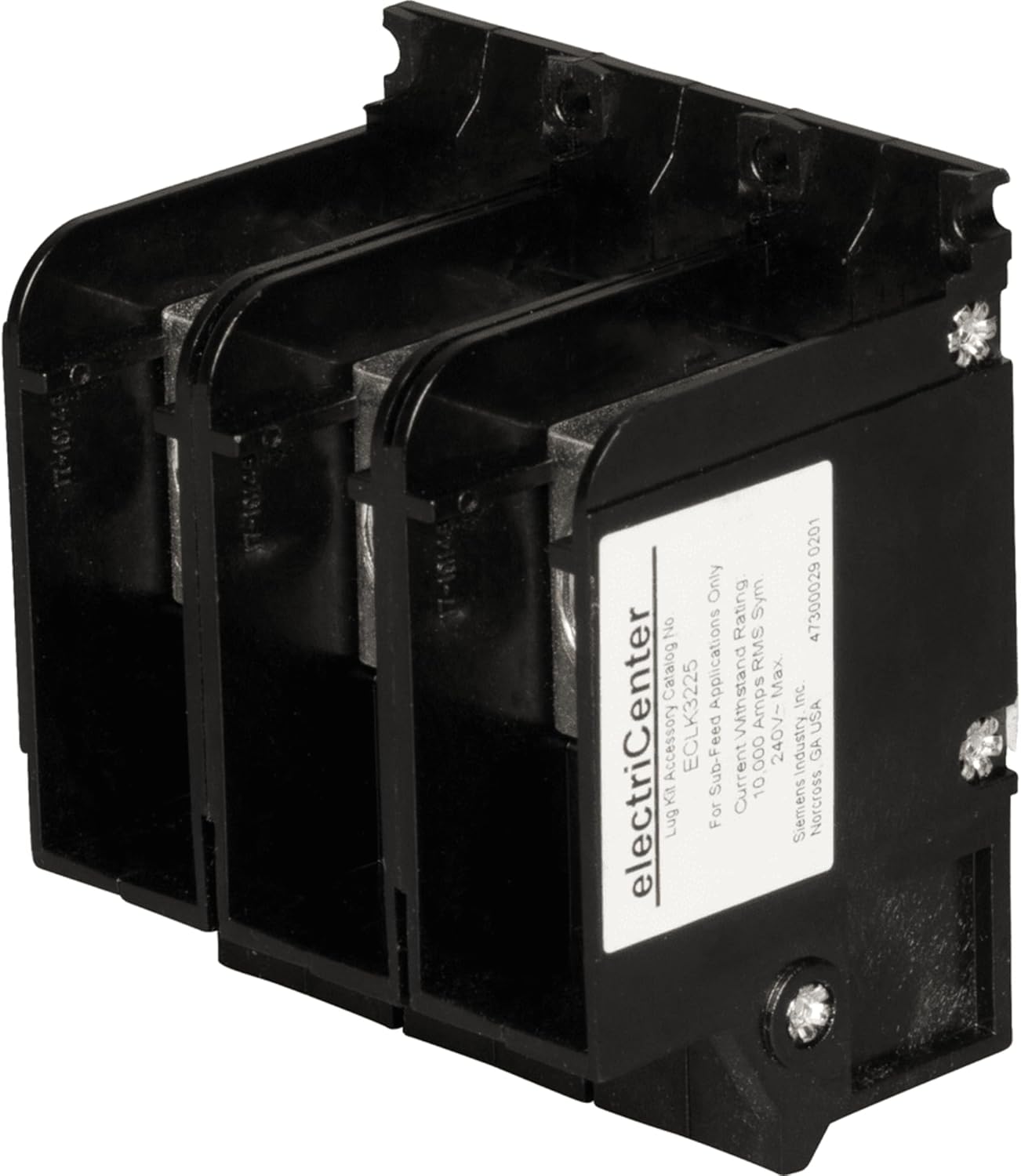

Figure 3.1: SIEMENS ECLK3225 Lug Kit. This image displays the black, three-pole lug kit. A white label on the side indicates "electriCenter," "Lug Kit Accessory Catalog No. ECLK3225," "For Sub-Feed Applications Only," "Current Withstand Rating: 10,000 Amps RMS Sym.," "240V - Max.," and "Siemens Industry, Inc. Norcross GA USA." The product is designed for connecting electrical conductors within a circuit breaker panel.
4. Setup and Installation
Installation of the ECLK3225 lug kit should only be performed by a qualified electrician in accordance with all applicable electrical codes and standards.
4.1 Pre-Installation Checks
- Confirm the lug kit model ECLK3225 is compatible with your Siemens load center.
- Inspect the lug kit for any signs of damage. Do not install if damaged.
- Ensure all necessary tools and personal protective equipment (PPE) are available.
- Verify that the main power supply to the load center is disconnected and locked out.
4.2 Installation Steps
- With the main power disconnected, open the load center cover.
- Identify the designated mounting location for the sub-feed lug kit within the load center. The ECLK3225 requires 6 spaces.
- Carefully align the lug kit with the mounting points and secure it firmly using the appropriate fasteners (not included, typically part of the load center).
- Connect the incoming conductors to the lugs, ensuring proper wire gauge and insulation.
- Tighten the lug screws to the torque specifications provided by Siemens for the specific wire size being used. Refer to the load center's manual for exact torque values.
- Verify all connections are secure and there are no loose wires.
- Close the load center cover and restore power only after all checks are complete.
5. Operating Principles
The SIEMENS ECLK3225 is a passive electrical component designed to provide a secure and reliable connection point for conductors within a circuit breaker panel. As a lug kit, its primary function is to terminate electrical wires, allowing for the distribution of power to a sub-panel or other electrical loads. It does not have active operational controls or indicators. Once installed and connected, it functions as a permanent part of the electrical distribution system, facilitating the safe flow of electricity at its rated capacity.
6. Maintenance
Regular maintenance of electrical components is crucial for safety and longevity. For the ECLK3225 lug kit:
- Annual Inspection: It is recommended that a qualified electrician inspect the lug kit and its connections annually.
- Visual Check: Look for any signs of overheating (discoloration), loose connections, or physical damage.
- Cleaning: If necessary, gently clean the exterior of the lug kit with a dry, non-abrasive cloth. Ensure power is disconnected before cleaning. Do not use liquid cleaners.
- Torque Verification: Periodically, a qualified electrician should re-verify the torque of the lug connections to ensure they remain secure.
Note: Do not attempt to repair a damaged lug kit. Replace it with a new, genuine SIEMENS ECLK3225 if damage is observed.
7. Troubleshooting
As a passive component, the ECLK3225 lug kit typically does not "malfunction" in the same way an active device might. Issues are usually related to improper installation or external factors.
Common Issues and Solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Overheating/Discoloration at Lugs | Loose connections, undersized wiring, or excessive load. | Immediately disconnect power. Have a qualified electrician inspect and re-torque connections, verify wire sizing, and assess load. Replace if damaged. |
| Power Interruption (related to sub-feed) | Tripped breaker, loose connection at lugs, or fault in downstream circuit. | Check associated circuit breakers. If problem persists, have a qualified electrician inspect all connections and circuits. |
| Physical Damage to Lug Kit | Impact, improper handling, or environmental factors. | Disconnect power. The lug kit cannot be repaired. Replace with a new SIEMENS ECLK3225. |
For any electrical issues, it is strongly recommended to consult a qualified and licensed electrician.
8. Specifications
| Attribute | Value |
|---|---|
| Brand | SIEMENS |
| Model Number | ECLK3225 |
| Current Rating | 225 Amps |
| Voltage | 240 Volts |
| Number Of Poles | 3 |
| Circuit Breaker Type | Standard (Accessory) |
| Mounting Type | Panel Mount |
| Product Dimensions (D x W x H) | 4"D x 5.2"W x 12.8"H |
| Item Weight | 0.01 ounces |
| Color | Black |
| Material | Alloy Steel |
| Manufacturer | Siemens -HI |
| Country Of Origin | Mexico |
| UPC | 783643485792 |
9. Warranty and Support
For information regarding product warranty, technical support, or service, please contact SIEMENS customer service directly. Warranty terms and conditions may vary and are typically provided with the original product packaging or available on the official SIEMENS website.
SIEMENS Official Website: www.siemens.com
For specific inquiries related to the ECLK3225, please have the model number and any relevant purchase information ready when contacting support.
