Introduction
This document provides comprehensive instructions for the proper installation, function, and general information regarding the Volkswagen OEM Fuel Pump Relay, model 1J0906383C. Adherence to these guidelines ensures correct operation and longevity of the component. For specific vehicle service procedures, always refer to the official Volkswagen service manual for your vehicle model and year.
Product Overview

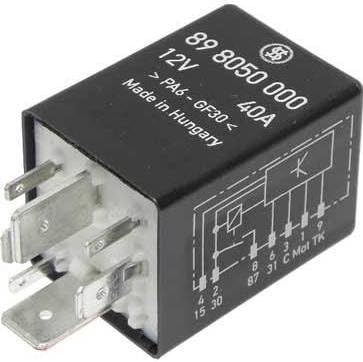

Image: Volkswagen OEM Fuel Pump Relay 1J0906383C. This image displays the black rectangular relay unit, featuring multiple metal terminals for electrical connection. The top surface includes markings such as "89 8050 000", "12V", "40A", ">PA6-GF30<", and "Made in Hungary", indicating its specifications and origin. A circuit diagram is also visible on the side, illustrating the internal electrical connections and pin assignments.
The Volkswagen OEM Fuel Pump Relay (Part Number 1J0906383C) is an electrical component designed to control the power supply to the vehicle's fuel pump. It ensures that the fuel pump operates only when required, typically when the engine is cranking or running, and deactivates when the engine is off or in an accident to prevent fuel delivery. This relay is a direct replacement part, manufactured to OEM specifications for compatibility and reliable performance in applicable Volkswagen vehicles.
Specifications
| Feature | Detail |
|---|---|
| Manufacturer Part Number | 1J0906383C |
| Brand | Volkswagen |
| Fitment Type | Direct Replacement |
| OEM Status | Genuine OEM |
| Voltage | 12V |
| Current Rating | 40A |
| Wattage | 48 watts |
| Operation Mode | Automatic |
| Connector Type | Through Hole |
| Contact Type | Normally Open |
| Mounting Type | Panel Mount |
| Number of Terminals | Multiple (typically 5-7, refer to product image and circuit diagram for specific pinout) |
| Compatible Models | Volkswagen Beetle, Golf, GTI, Jetta, Passat (98-10 Beetle) |
| Dimensions | 4.17 x 2.48 x 1.77 inches (Package) |
| Item Weight | 2.64 ounces |
| Origin | Made in Hungary (as per product marking) |
Note: Specifications are based on manufacturer data and product markings. Always verify compatibility with your specific vehicle model and year.
Setup and Installation
Warning: Electrical work can be hazardous. It is highly recommended that installation be performed by a qualified automotive technician. Disconnect the vehicle's battery before beginning any electrical work.
- Safety First: Ensure the vehicle is turned off, the ignition key is removed, and the negative terminal of the vehicle's battery is disconnected to prevent accidental electrical shorts or injury.
- Locate the Existing Relay: Consult your vehicle's service manual or fuse box diagram to identify the exact location of the fuel pump relay. It is typically found in the fuse box under the hood or inside the passenger compartment.
- Remove the Old Relay: Carefully pull the old fuel pump relay straight out from its socket. Avoid twisting or bending the terminals. Note the orientation of the old relay for correct installation of the new one.
- Inspect the Socket: Check the relay socket for any signs of corrosion, damage, or loose connections. Clean if necessary.
- Install the New Relay: Align the new Volkswagen OEM Fuel Pump Relay (1J0906383C) with the socket. Ensure the terminals are correctly oriented. Press the relay firmly into the socket until it is fully seated.
- Reconnect Battery: Reconnect the negative terminal of the vehicle's battery.
- Test Operation: Turn the ignition key to the "ON" position (without starting the engine) and listen for the fuel pump to prime (a brief humming sound from the rear of the vehicle). Then, attempt to start the engine to confirm proper function.
If the vehicle does not start or the fuel pump does not operate, re-check all connections and consult a professional technician.
Operating Principles
The fuel pump relay acts as an electrical switch, controlled by the vehicle's engine control unit (ECU) or ignition system. When the ignition is turned on, the ECU sends a signal to the relay, which then closes its internal contacts, allowing electrical current to flow directly to the fuel pump. This activates the fuel pump, pressurizing the fuel system. When the engine is turned off or if the ECU detects a fault (e.g., engine not running after a few seconds of cranking), the relay opens its contacts, cutting power to the fuel pump. This automatic operation is crucial for both engine performance and safety.
Maintenance
The Volkswagen OEM Fuel Pump Relay 1J0906383C is a sealed unit and does not require routine maintenance or user-serviceable parts. Its lifespan is generally long, but like all electrical components, it can eventually wear out or fail. Regular vehicle maintenance, including checking electrical connections and fuses, can help ensure the overall health of the electrical system, which indirectly supports the relay's function.
If you suspect a relay issue, avoid attempting to repair the relay itself. Replacement with a genuine OEM part is the recommended course of action.
Troubleshooting
If you experience issues related to fuel delivery, the fuel pump relay could be a potential cause. Here are common symptoms and basic troubleshooting steps:
- Engine Cranks but Does Not Start: This is a primary symptom of a faulty fuel pump or fuel pump relay.
- Check the fuel pump fuse in the vehicle's fuse box. Replace if blown.
- Listen for the fuel pump priming sound when the ignition is turned to the "ON" position. Absence of this sound may indicate a relay or pump issue.
- Intermittent Engine Stalling: A failing relay might intermittently cut power to the fuel pump, leading to stalling.
- This symptom requires professional diagnosis as it can be caused by various factors.
- No Power to Fuel Pump: If diagnostic tests confirm no power reaching the fuel pump, the relay is a strong suspect.
- A qualified technician can test the relay's continuity and functionality using a multimeter.
Important: Do not attempt to bypass the fuel pump relay unless you are a trained professional, as this can create safety hazards and damage electrical components.
For accurate diagnosis and repair, it is always recommended to consult a certified Volkswagen service center or a qualified automotive technician.
Warranty and Support
For information regarding the warranty of your Volkswagen OEM Fuel Pump Relay 1J0906383C, please refer to the warranty documentation provided at the time of purchase or contact your authorized Volkswagen dealer. Genuine OEM parts typically carry a manufacturer's warranty against defects in materials and workmanship.
For technical support, installation assistance, or warranty claims, please contact your authorized Volkswagen service center or the original point of purchase. Ensure you have your vehicle's VIN and the part number (1J0906383C) available when seeking support.
