Introduction
This manual provides essential instructions for the safe and efficient installation, operation, and maintenance of your Newstar Blower Motor, model S-17239. Please read this manual thoroughly before attempting to install or operate the unit. Retain this manual for future reference.

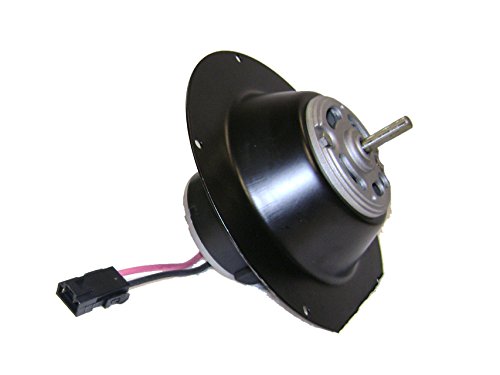

Image: Newstar Blower Motor S-17239. This image displays the compact design of the blower motor, highlighting its main housing and electrical connections.
Safety Information
Always observe the following safety precautions to prevent injury or damage to the equipment:
- Disconnect Power: Ensure all power to the unit is disconnected before installation, maintenance, or troubleshooting.
- Qualified Personnel: Installation and service should only be performed by qualified and authorized personnel.
- Proper Wiring: All wiring must comply with local and national electrical codes.
- Moving Parts: Keep hands, hair, and loose clothing away from moving parts during operation.
- Ventilation: Ensure adequate ventilation around the motor to prevent overheating.
Setup and Installation
Follow these steps for proper installation of the S-17239 Blower Motor:
- Unpacking: Carefully remove the blower motor from its packaging. Inspect for any shipping damage.
- Mounting: Securely mount the blower motor in the designated location using appropriate fasteners. Ensure the mounting surface is stable and can support the motor's weight (approximately 8 pounds).
- Electrical Connections:
- Identify the power input terminals on the motor.
- Connect the power supply wires according to the wiring diagram provided with your specific application.
- Ensure all connections are tight and insulated.
- Ductwork Connection (if applicable): Connect the blower motor to the existing ductwork, ensuring a tight seal to prevent air leakage.
- Pre-Operation Check: Before applying power, manually rotate the blower wheel (if accessible) to ensure it moves freely without obstruction.
Operating Instructions
Once installed and all safety checks are complete, the Newstar Blower Motor S-17239 is ready for operation.
- Power On: Apply power to the blower motor circuit.
- Initial Start-up: Observe the motor during its initial start-up. Listen for unusual noises or vibrations.
- Normal Operation: The motor should operate smoothly, providing consistent airflow.
- Monitoring: Periodically monitor the motor for signs of overheating or decreased performance.
Note: The specific control method (e.g., thermostat, switch) will depend on the system the blower motor is integrated into.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your Newstar Blower Motor S-17239.
- Monthly:
- Inspect the motor for dust and debris accumulation. Clean as necessary using a soft brush or compressed air.
- Check electrical connections for tightness and signs of corrosion.
- Quarterly:
- Inspect the blower wheel for balance and cleanliness. Clean any buildup that could affect performance.
- Check mounting bolts for tightness.
- Annually:
- Have a qualified technician inspect the motor bearings and overall condition.
- Verify proper electrical current draw.
Important: Always disconnect power before performing any maintenance.
Troubleshooting
This section provides solutions to common issues you might encounter with your S-17239 Blower Motor.
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not start | No power supply Faulty wiring Overload protection tripped | Check power source and circuit breaker Inspect and correct wiring Reset overload protector (if applicable) |
| Motor runs but no airflow | Blower wheel obstructed or detached Ductwork blockage | Disconnect power, inspect and clear obstruction, reattach wheel Inspect and clear ductwork |
| Excessive noise or vibration | Loose mounting Unbalanced blower wheel Worn bearings | Tighten mounting bolts Clean blower wheel, check for damage Contact qualified service personnel for bearing replacement |
| Motor overheats | Insufficient ventilation Excessive load Internal motor fault | Ensure clear airflow around motor Verify system load is within motor specifications Contact qualified service personnel |
If troubleshooting steps do not resolve the issue, contact Newstar customer support or a qualified service technician.
Specifications
Key specifications for the Newstar Blower Motor S-17239:
- Model: S-17239
- Brand: New Star
- Item Weight: 8 pounds
- Manufacturer: Newstar
- ASIN: B012770A3U
- UPC: 643553370383
- First Available: April 5, 2022
- Note: Additional electrical specifications (voltage, amperage, RPM) are typically found on the motor's nameplate or in the system's specific documentation.
Warranty Information
Newstar products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official Newstar website. Typically, warranty coverage addresses manufacturing defects under normal use.
Note: Unauthorized modifications or improper installation may void the product warranty.
Customer Support
For technical assistance, replacement parts, or warranty inquiries, please contact Newstar customer support. Have your model number (S-17239) and purchase date ready when contacting support.
Contact information can typically be found on the product packaging or the official Newstar website.
