Suwtec DSP Amplifier Wiring Harness User Manual

1. Product Overview

The Suwtec DSP Amplifier Wiring Harness is designed to facilitate the installation of an original Digital Sound Processor (DSP) amplifier in compatible Volkswagen (VW) vehicles equipped with MFD navigation systems. This high-quality cable ensures a reliable connection, enabling enhanced audio performance in your vehicle.

This harness is specifically engineered to be compatible with original DSP Amplifiers from Nokia (part number: 1JO 035 456 A) or Harmann/Becker (part number: 1J0 035 456 J0).

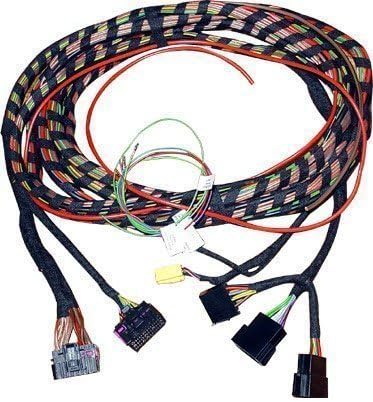

Figure 1.1: Overview of the Suwtec DSP Amplifier Wiring Harness. This image displays the complete wiring harness, coiled and ready for installation, with various connectors visible at the ends.

2. Package Contents

Upon opening the package, you should find the following item:

• 1x Suwtec DSP Amplifier Wiring Harness (approx. 5.50 m length)

3. Compatibility

This wiring harness is compatible with the following vehicle and amplifier configurations:

• All VW MFD (Multi-Function Display) navigation systems in Golf IV, Bora, Sharan, T4, Passat, Jetta, Skoda, and Seat vehicles.
• Original DSP Amplifiers from Nokia with part number: 1JO 035 456 A.
• Original DSP Amplifiers from Harmann/Becker with part number: 1J0 035 456 J0.

4. Setup and Installation

Installation of this wiring harness requires technical knowledge and familiarity with automotive electrical systems. It is highly recommended that installation be performed by a qualified professional to ensure proper functionality and to avoid damage to your vehicle or the product.

4.1. Pre-Installation Checklist

• Ensure the vehicle's ignition is off and the battery is disconnected before beginning any electrical work.
• Verify that your vehicle's MFD system and DSP amplifier part numbers match the compatibility requirements.
• Gather necessary tools (e.g., trim removal tools, screwdrivers, wire cutters/strippers if modifications are needed).

4.2. Installation Steps (General Guide)

1. Access Vehicle Components: Carefully remove necessary interior trim panels, the existing head unit, and any other components required to access the rear of the MFD unit and the location where the DSP amplifier will be installed. Refer to your vehicle's service manual for specific instructions on panel removal.
2. Route the Harness: Carefully route the 5.50-meter wiring harness from the location of the DSP amplifier to the MFD unit. Ensure the cable is routed safely, away from moving parts, sharp edges, and heat sources. Use cable ties to secure the harness where appropriate.
3. Connect to DSP Amplifier: Connect the appropriate end of the wiring harness to your Nokia or Harmann/Becker DSP amplifier. Ensure all connections are secure and fully seated.
4. Connect to MFD Unit: Connect the other end of the wiring harness to the designated port on your VW MFD navigation unit. Consult your MFD unit's wiring diagram if unsure about the correct port.
5. Secure Connections: Double-check all connections to ensure they are firm and correctly aligned.
6. Test System: Before reassembling the vehicle's interior, reconnect the battery and test the DSP amplifier and MFD system to ensure proper operation. Verify that audio is routed correctly and all functions are working as expected.
7. Reassemble Vehicle: Once functionality is confirmed, carefully reassemble all removed trim panels and components.

Figure 4.1: Close-up view of various connectors on the Suwtec wiring harness. This image highlights the different types of plugs and terminals used for connecting to the MFD unit and DSP amplifier.

Figure 4.2: An alternative perspective of the Suwtec wiring harness, showing its overall length and the quality of the cable sheathing.

5. Operating

The Suwtec DSP Amplifier Wiring Harness is a passive component designed to enable the connection and functionality of a compatible DSP amplifier with your vehicle's MFD navigation system. Once correctly installed, the harness facilitates the communication and power delivery required for the DSP amplifier to operate. The operation of the DSP amplifier itself will be governed by its own controls and the vehicle's audio system interface.

6. Care and Maintenance

To ensure the longevity and optimal performance of your wiring harness, follow these general care guidelines:

• Avoid Physical Stress: Do not bend, crimp, or stretch the cable excessively. Ensure it is not pinched by vehicle panels or components.
• Temperature Extremes: While designed for automotive environments, avoid exposing the harness to extreme temperatures outside of normal operating conditions.
• Moisture: Keep the harness and its connectors dry. Moisture can lead to corrosion and electrical issues.
• Cleaning: If necessary, gently wipe the exterior of the harness with a dry, soft cloth. Do not use harsh chemicals or abrasive cleaners.
• Regular Inspection: Periodically inspect visible sections of the harness for any signs of wear, damage, or loose connections, especially if you experience audio issues.

7. Troubleshooting

If you encounter issues after installing the DSP amplifier wiring harness, consider the following troubleshooting steps:

• No Audio/Incorrect Audio Output:
  • Verify all connections at both the DSP amplifier and the MFD unit are secure and fully seated.
  • Ensure the DSP amplifier itself is receiving power and is functioning correctly (refer to the amplifier's manual).
  • Confirm that the DSP amplifier is compatible with your MFD unit and that the part numbers match those specified in this manual.
• Intermittent Connection:
  • Check for any kinks or damage along the length of the cable.
  • Ensure connectors are not loose or corroded.
• System Not Recognizing DSP:
  • Double-check that the correct harness is used for your specific DSP amplifier model (Nokia 1JO 035 456 A or Harmann/Becker 1J0 035 456 J0).
  • Consult your vehicle's MFD system manual for any specific setup procedures required for external audio components.

If issues persist after performing these checks, it is recommended to consult with a professional automotive audio installer or contact Suwtec customer support.

8. Specifications

9. Support and Warranty

For technical support, inquiries, or warranty information regarding your Suwtec DSP Amplifier Wiring Harness, please contact the seller or manufacturer directly. Please have your purchase details and the product model number (19b2-de) available when contacting support.
