1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new THOR Kitchen HRG3616U 36-Inch Freestanding Professional Gas Range. Please read all instructions thoroughly before using the appliance to ensure proper function and to prevent potential hazards. Keep this manual for future reference.
The THOR Kitchen HRG3616U is a professional-grade gas range designed for culinary enthusiasts. It features a 6-burner cooktop, a spacious 5.2 cubic foot oven with blue porcelain interior, convection cooking, and an infrared broiler, all housed in a durable stainless steel finish.
2. Safety Information
WARNING: Gas appliances can cause minor exposure to four of the six substances listed by the State of California as causing cancer or reproductive harm. To minimize exposure, always operate this unit according to the instructions in this manual and ensure good ventilation.
- Read all instructions before using the appliance.
- Ensure proper installation and grounding by a qualified technician.
- Do not store flammable materials near the range.
- Never use the appliance for space heating.
- Keep children and pets away from the appliance during operation.
- Always use dry potholders to prevent steam burns.
- Do not repair or replace any part of the appliance unless specifically recommended in this manual. All other servicing should be referred to a qualified technician.
- In case of a gas leak, do not light any appliance, touch any electrical switch, or use any phone in your building. Immediately call your gas supplier from a neighbor's phone.
3. Setup and Installation
Proper installation is crucial for the safe and efficient operation of your gas range. This appliance is designed to be used as a freestanding or slide-in unit, thanks to its removable backsplash.
3.1 Gas Connection
The HRG3616U range accepts either natural gas or liquid propane (LP). Ensure the correct gas type is supplied and connected by a certified professional. Refer to local codes and regulations for gas installation requirements.
Video: This video provides an overview of the THOR Kitchen range features, including its compatibility with natural gas or liquid propane, and various burner specifications. It highlights the internal components and design elements.
3.2 Leveling the Range
The range is equipped with adjustable legs to ensure it is perfectly level. Use a level to check the cooktop surface and adjust the legs as needed to prevent uneven cooking and spills.
Image: The THOR Kitchen HRG3616U gas range seamlessly integrated into a modern kitchen setting, showcasing its freestanding design and stainless steel finish.
3.3 Dimensions
- Overall Dimensions (W x D x H): 36 in. x 28 7/8 in. x 40 in.
- Oven Interior Dimensions (W x D x H): 29 1/2 in. x 18 in. x 16 in.
4. Operating Instructions
4.1 Cooktop Operation
The cooktop features six high-powered gas burners with electronic ignition and auto re-ignition for consistent flame. The continuous cast-iron grates allow for easy movement of cookware across the surface.

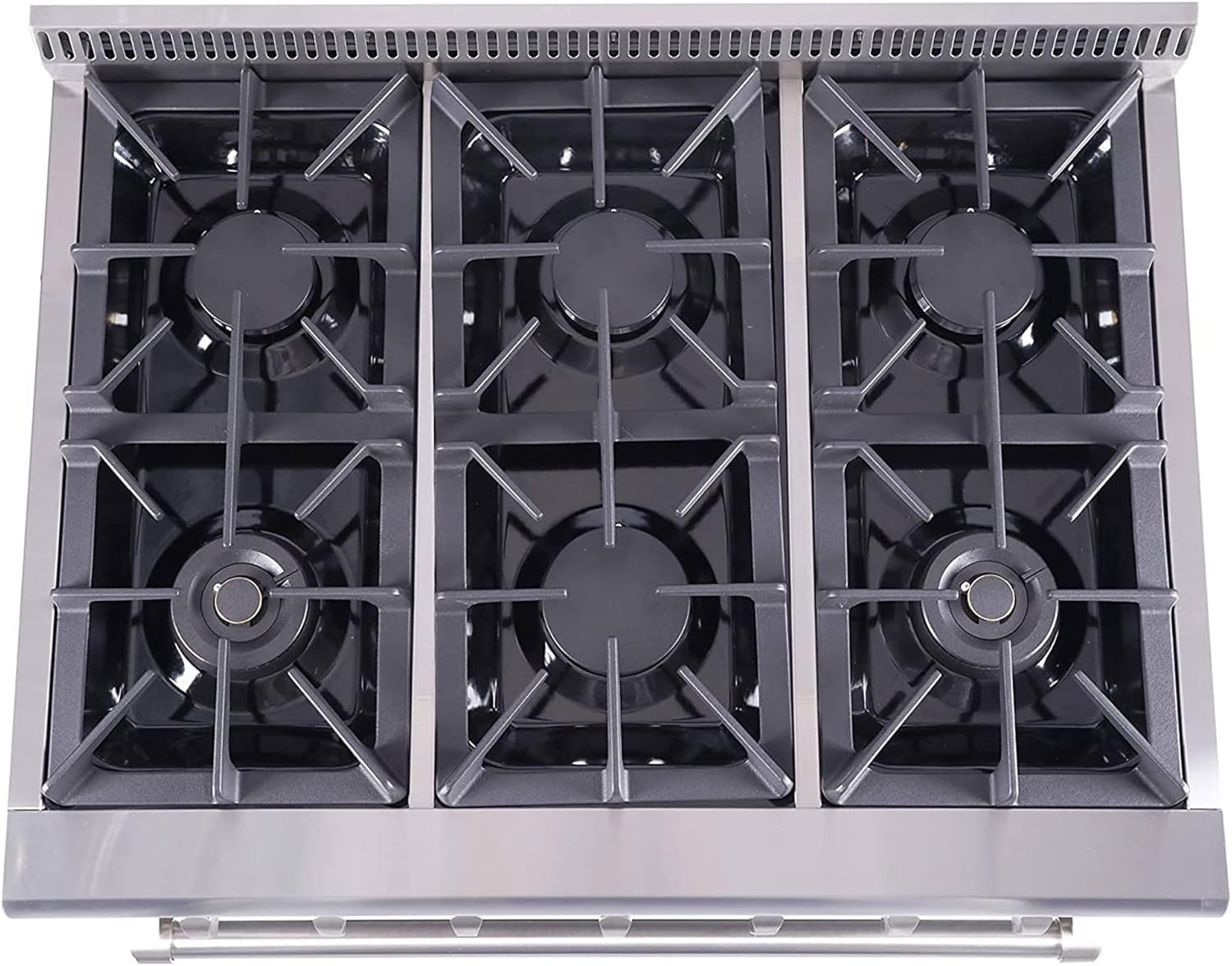

Image: A clear view of the six gas burners and robust continuous cast-iron grates on the cooktop of the HRG3616U range.
- Burner Configuration:
- One 18,000 BTU single burner for high-heat searing.
- Two 15,000 BTU dual burners for versatile high-heat cooking.
- Three 12,000 BTU burners for medium to high heat applications.
- One 6,000 BTU burner for simmering and delicate tasks.
- Ignition: Turn the control knob to the 'Light' position and push it in. The burner will ignite automatically. Adjust the flame to the desired intensity.
4.2 Oven Operation
The 5.2 cubic foot oven offers multiple cooking functions, including convection and infrared broiling, with twin halogen oven lights for clear visibility.
Image: The spacious oven interior with its distinctive blue porcelain finish, multiple rack positions, and bright halogen lighting.
- Convection Oven: The high-powered 22,000 BTU convection oven ensures even heat distribution for consistent baking and roasting results.
- Infrared Broiler: Utilize the 16,500 BTU infrared broiler for efficient grilling and browning of food.
- Oven Racks: Two oven racks can be configured into multiple positions to accommodate various baking needs.
- Control Knobs: The stylish stainless metal finish control knobs allow precise temperature and function selection.

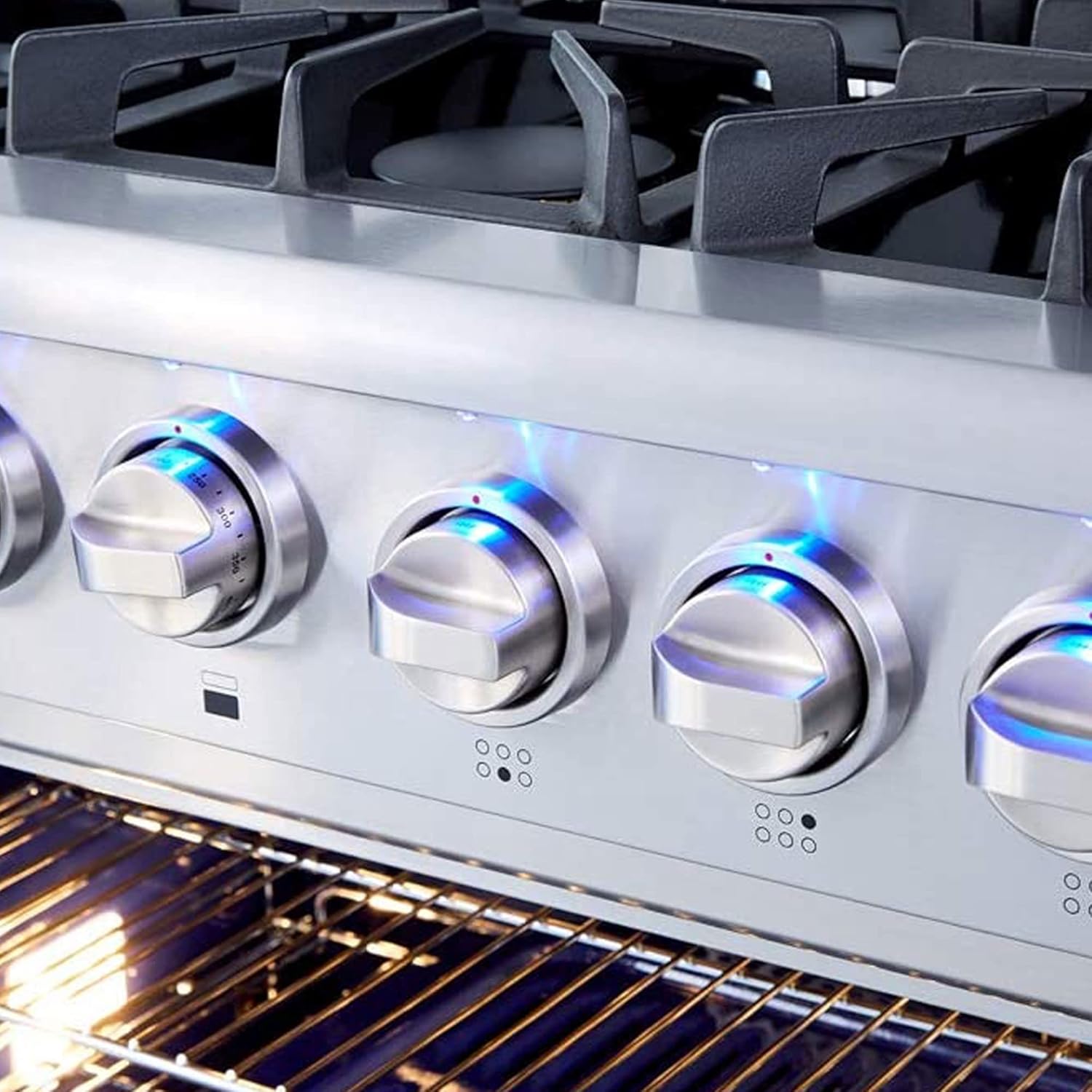

Image: A detailed view of the stainless steel control knobs, illuminated by blue LED lights, indicating active burners or oven functions.
5. Cleaning and Maintenance
Regular cleaning and maintenance will prolong the life and appearance of your THOR Kitchen gas range.
5.1 Exterior Cleaning
- The modern stainless steel surface is easy to clean. Use a soft cloth with warm, soapy water or a specialized stainless steel cleaner. Always wipe in the direction of the grain.
- For control knobs, remove them by pulling straight off and wash with warm, soapy water. Ensure they are completely dry before reattaching.
5.2 Cooktop Cleaning
- Allow the cooktop and grates to cool completely before cleaning.
- Remove the durable heavy-duty cast-iron cooking grates and wash them with warm, soapy water. For stubborn stains, a non-abrasive scrub brush can be used.
- Clean burner caps and bases according to the detailed instructions in the full product manual.
5.3 Oven Interior Cleaning
- The blue porcelain oven interior can be cleaned with warm, soapy water and a soft cloth. Avoid abrasive cleaners or scouring pads that could damage the finish.
- Oven racks can be removed and cleaned in a sink with warm, soapy water.
6. Troubleshooting
Before contacting customer service, please refer to the following common issues and solutions. For more complex problems, consult the comprehensive troubleshooting guide in the full product manual or contact a qualified service technician.
- Burner not igniting: Check if the gas supply is on. Ensure the burner cap and base are correctly seated. Clean any food debris from the igniter.
- Oven not heating: Verify the oven is properly connected to power and the gas supply is open. Ensure the oven settings are correctly selected.
- Uneven cooking: Ensure the range is level. Avoid overcrowding the oven. Preheat the oven fully before placing food inside.
- Excessive smoke during broiling: Trim excess fat from meats. Use a broiler pan with a grid to allow fat to drip away.
7. Specifications
| Feature | Specification |
|---|---|
| Model | HRG3616U |
| Fuel Type | Gas (Natural Gas or Liquid Propane) |
| Installation Type | Freestanding, Slide-In |
| Material | Stainless Steel |
| Oven Capacity | 5.2 Cubic Feet |
| Number of Heating Elements (Burners) | 6 |
| Cooktop Burner Power | 1 x 18,000 BTU, 2 x 15,000 BTU (Dual), 3 x 12,000 BTU |
| Convection Oven Power | 22,000 BTU |
| Infrared Broiler Power | 16,500 BTU |
| Controls Type | Knob |
| Voltage | 120 Volts |
| Item Weight | 250 Pounds |
8. Warranty and Support
THOR Kitchen provides a 2-year warranty on parts and labor for the HRG3616U Freestanding Professional Gas Range. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical assistance, or to purchase replacement parts, please contact THOR Kitchen customer support. Always have your model number (HRG3616U) and purchase date available when contacting support.
For detailed warranty terms and conditions, please refer to the official warranty document included with your appliance or visit the Thor Kitchen website.
