LANCHEZ 3/4 HP Portable Submersible Water Sump Pump Instruction Manual

Introduction

The LANCHEZ 3/4 HP Portable Submersible Water Sump Pump is a versatile and efficient tool designed for rapid water removal. With a powerful 3/4 HP copper wire motor, it can discharge water up to 4450 GPH (74 GPM) and lift water up to 40 ft vertically. Its low baseplate design allows for water removal down to 0.2 inches, making it ideal for draining clean or slightly dirty water from various applications. This manual provides essential information for the safe and effective operation and maintenance of your pump.

Important Safety Information

Always read and understand all safety warnings and instructions before operating the pump. Failure to do so may result in electric shock, fire, or serious injury.

• Electrical Safety: Ensure the power source matches the pump's voltage (110 Volts AC). Do not use the pump with damaged cords or plugs. Always plug into a grounded outlet.
• Submersion: This pump is designed for submersible use (IPX8 waterproof). Before using, submerge the pump into the water at an inclined angle to remove excess air.
• Water Temperature: Do not operate the pump in water exceeding 95°F (35°C).
• Particle Size: The pump is suitable for clean or slightly dirty water. The diameter of particles in the water should not exceed 34mm.
• Dry Running: Avoid operating the pump without water, as this can cause damage.
• Overload Protection: The pump features built-in automatic thermal overload protection. If the pump overheats, it will automatically stop and restart once it has cooled down sufficiently.
• Handling: Do not move the pump by pulling the power cord. Use the convenient handle on top for easy carrying.

Product Overview

The LANCHEZ submersible pump is constructed with a high-quality, impact-resistant thermoplastic casing, ensuring robustness and corrosion resistance. It features a 25 ft power cable for wide application without the need for an extension cord.

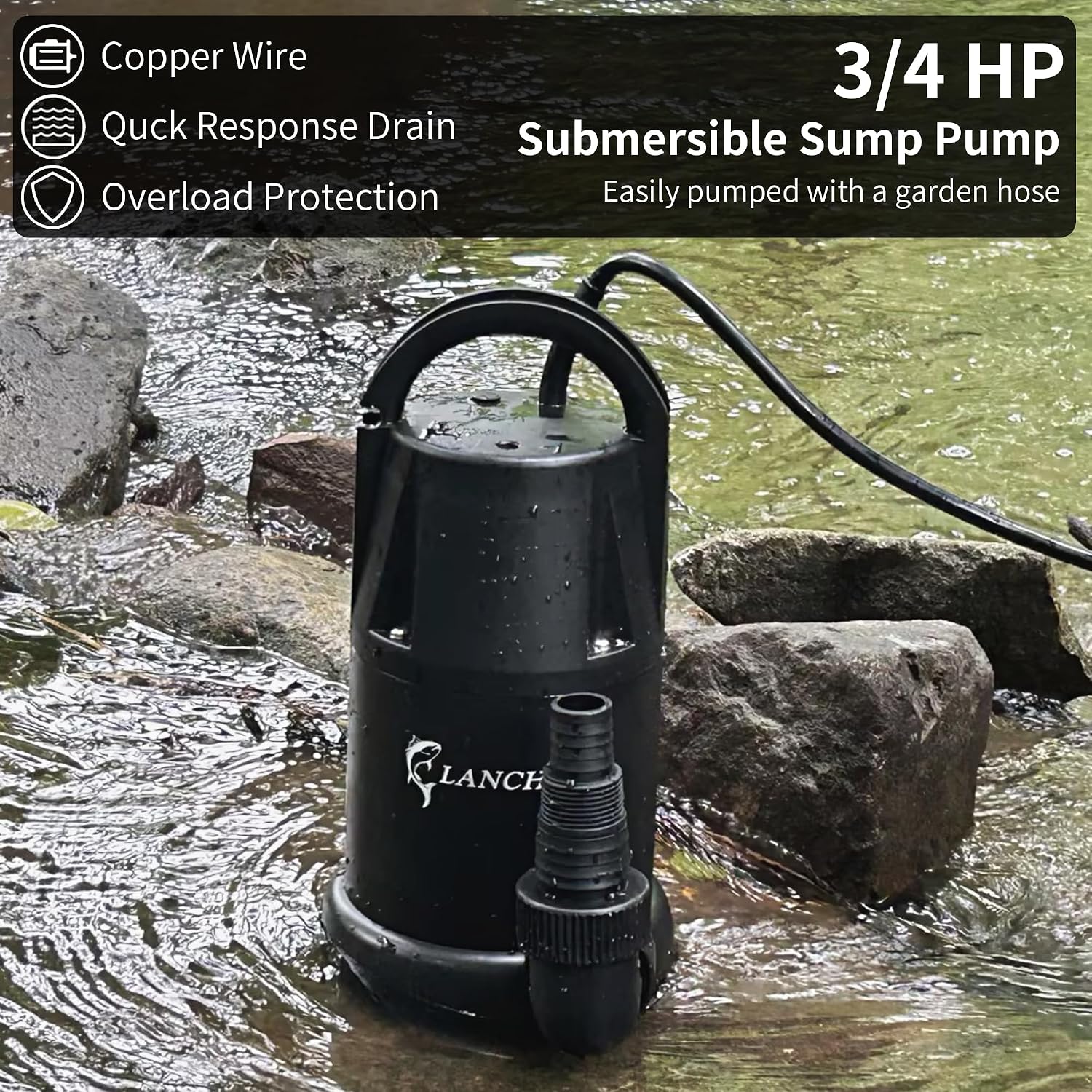

Figure 1: LANCHEZ 3/4 HP Portable Submersible Water Sump Pump with hose adapter.

Key Features:

• 3/4 HP copper wire motor for efficient power.
• Discharge rate up to 4450 GPH (74 GPM).
• Lifts water up to 40 ft vertical height.
• Low baseplate design for water removal down to 0.2 inches.
• High-quality, impact-resistant thermoplastic casing.
• Built-in automatic thermal overload protection.
• 25 ft power cable.
• NPT1-1/2" discharge, 1-1/2'' NPT elbow adapter, and multi-hose adapter for compatibility.

Components:

• Submersible Sump Pump Unit
• 25 ft Power Cable (attached)
• NPT1-1/2" Discharge Adapter
• 1-1/2'' NPT Elbow Adapter
• Multi-Hose Adapter

Figure 2: The multi-hose adapter allows for various hose sizes by cutting the adapter to fit.

Setup

1. Unpacking

Carefully remove all components from the packaging. Inspect the pump and accessories for any signs of damage. Do not use if any part is damaged.

2. Connecting the Hose

1. Select the appropriate hose size for your application. The multi-hose adapter can be cut to fit different hose diameters.
2. Attach the chosen hose to the pump's discharge outlet using the provided NPT1-1/2" discharge or 1-1/2'' NPT elbow adapter. Ensure a secure connection to prevent leaks.
3. For optimal performance, use a hose with a diameter that matches the pump's discharge capacity.

Figure 3: The pump features a comfortable carrying handle and a 25ft extended power cable for versatile placement.

Operating Instructions

1. Initial Use

1. Place the pump on a level and solid foundation in the area where water needs to be removed. Ensure the exhaust hole is not blocked by debris.
2. Submerge the pump into the water at an inclined angle to allow any trapped air to escape. This helps the pump prime and operate efficiently.
3. Once fully submerged and air-free, plug the 25 ft power cable into a grounded 110V AC outlet. The pump will begin operating immediately as it does not have an automatic start/stop feature.
4. To stop the pump, simply unplug it from the power outlet.

Figure 4: The pump is designed for submersion and efficient water transfer.

2. Applications

This multipurpose pump is suitable for a wide range of water removal tasks:

• Draining swimming pools
• Removing standing water from basements, cellars, or sump pits
• Emptying hot tubs and water tanks
• Draining rain barrels
• General utility pumping in flooded areas or garden ponds

Maintenance

Regular maintenance ensures the longevity and optimal performance of your pump.

• Cleaning: Periodically clean the pump's intake screen to prevent blockages from debris. A detachable screen filter base allows for easy cleaning.
• Storage: When not in use, especially during colder months, ensure the pump is completely drained of water to prevent freezing and damage. Store it in a dry, protected area.
• Inspection: Regularly inspect the power cord for any cuts, fraying, or damage. Do not use the pump if the cord is compromised.

Troubleshooting

If you encounter issues with your LANCHEZ pump, refer to the table below for common problems and solutions.

Technical Specifications

Figure 5: Performance chart and key specifications.

Warranty and Support

The LANCHEZ 3/4 HP Portable Submersible Water Sump Pump includes a 3-year technical support and professional assistance warranty. For any technical issues or support inquiries, please refer to the contact information provided with your product packaging or visit the official LANCHEZ website.
