MOPEDIA RP755S Underarm Support Walker User Manual

1. Introduction

This manual provides essential instructions for the safe and effective use, assembly, and maintenance of your MOPEDIA RP755S Underarm Support Walker. Please read this manual thoroughly before using the product and retain it for future reference. This walker is designed to assist individuals with mobility challenges by providing stable support during ambulation.

2. Safety Information

Always prioritize safety when using the MOPEDIA RP755S walker. Failure to follow these instructions may result in injury or damage to the product.

• Consult a Healthcare Professional: Before using this walker, consult with a doctor or physical therapist to ensure it is appropriate for your specific mobility needs and condition.
• Weight Capacity: Do not exceed the maximum weight capacity specified in the 'Specifications' section.
• Regular Inspection: Periodically check all parts, especially wheels, brakes, and adjustment mechanisms, for wear, damage, or loose components. Do not use the walker if any part is damaged or missing.
• Brake Usage: Always engage the brakes when standing still or transferring to and from the walker. Ensure brakes are functioning correctly before each use.
• Surface Awareness: Use the walker on flat, stable surfaces. Be cautious on uneven terrain, inclines, or slippery floors. Avoid obstacles.
• Adjustments: Ensure all adjustments (height, width, depth of supports) are securely locked in place before use.
• Supervision: Individuals with cognitive impairments should use the walker under supervision.

3. Product Overview

The MOPEDIA RP755S is a robust underarm support walker designed for stability and ease of use. It features a chrome-plated steel frame, four swivel wheels for maneuverability, and two integrated brakes for safety. The underarm supports are padded for comfort and are fully adjustable to accommodate various user heights and body types.

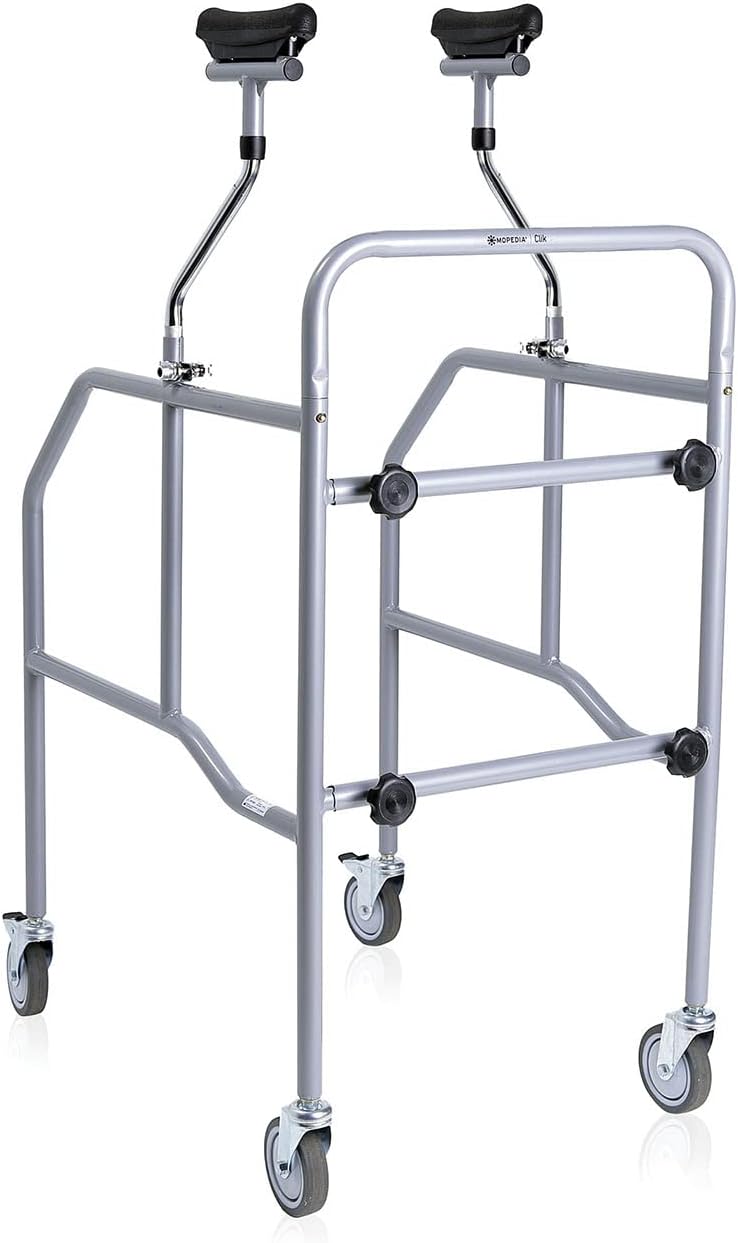

Figure 1: MOPEDIA RP755S Underarm Support Walker. This image displays the MOPEDIA RP755S underarm support walker. It is constructed from chrome-plated steel, featuring a silver finish. The walker has four swivel wheels for easy maneuverability. Two padded underarm supports are visible at the top, designed for user comfort and stability. The frame includes adjustable components for height, width, and depth customization.

Key Features:

• Chrome-plated steel frame for durability.
• Four 80mm swivel wheels for smooth movement.
• Two wheels equipped with brakes for secure positioning.
• Padded underarm supports for enhanced comfort and pressure distribution.
• Fully adjustable underarm supports (height, width, depth).
• Foldable design for convenient storage and transport.

4. Setup and Assembly

The MOPEDIA RP755S walker is designed for straightforward assembly. Please follow these steps carefully.

4.1 Unpacking:

1. Carefully remove all components from the packaging.
2. Verify that all parts listed in the 'Package Contents' are present.
3. Retain packaging for future storage or transport.

4.2 Assembly Steps:

1. Unfold the Frame: Gently pull the sides of the walker apart until the frame locks into its open position. Ensure all locking mechanisms are engaged.
2. Attach Underarm Supports: Insert the underarm support poles into the designated slots on the top frame of the walker. Secure them using the provided locking pins or knobs.
3. Adjust Height: Press the spring-loaded buttons on the underarm support poles and slide them up or down to the desired height. Ensure both supports are at the same height and the buttons snap securely into place. The recommended height is when the user's elbows are slightly bent (15-30 degrees) while resting on the supports.
4. Adjust Width and Depth: Use the adjustment knobs on the underarm supports to set the desired width and depth. Ensure these are tightened securely after adjustment.
5. Check Wheels and Brakes: Confirm that all four wheels are securely attached and rotate freely. Test the brakes to ensure they engage and disengage properly.

Important: Before first use, ensure all connections are secure and all adjustable parts are locked into position.

5. Operating Instructions

5.1 Using the Walker:

1. Positioning: Stand behind the walker, placing your forearms comfortably on the padded supports. Your body should be slightly forward, allowing for a natural walking posture.
2. Walking: Push the walker forward a short distance. Step forward with one leg, then bring the other leg to meet it. Maintain a steady pace.
3. Turning: To turn, gently pivot the walker in the desired direction while maintaining your balance. Avoid sharp turns.
4. Using Brakes: When you need to stop or stand still, engage the brakes on the two rear wheels. To engage, push down on the brake levers until they lock. To release, pull up on the levers. Always engage brakes when sitting down or standing up.

5.2 Folding for Storage/Transport:

1. Ensure the walker is on a flat, stable surface and the brakes are engaged.
2. Remove any accessories (e.g., optional seat, if installed).
3. Locate the folding mechanism (usually a lever or button on the frame). Activate it to allow the frame to collapse.
4. Gently push the sides of the walker together until it is fully folded.
5. Secure any locking clips to keep it folded during transport.

6. Maintenance

Proper maintenance ensures the longevity and safe operation of your MOPEDIA RP755S walker.

• Cleaning: Clean the frame with a damp cloth and mild detergent. Avoid abrasive cleaners. Wipe padded surfaces with a disinfectant wipe or damp cloth. Ensure all parts are dry before use.
• Wheel Inspection: Regularly check wheels for debris (hair, lint) that may impede rotation. Clean as necessary.
• Brake Check: Test brakes weekly to ensure they engage firmly and hold the walker in place. If brakes feel loose or ineffective, consult a qualified technician.
• Fastener Check: Periodically check all screws, bolts, and adjustment knobs to ensure they are tight. Do not overtighten.
• Storage: Store the walker in a dry, clean place away from extreme temperatures.

7. Troubleshooting

This section addresses common issues you might encounter with your walker.

If you encounter a problem not listed here or if solutions do not resolve the issue, please contact MOPEDIA customer support or a qualified service technician.

8. Specifications

9. Warranty and Support

Information regarding warranty coverage for the MOPEDIA RP755S walker is typically provided at the point of purchase or within separate documentation included with the product. Please refer to your purchase receipt or the manufacturer's official website for detailed warranty terms and conditions.

For technical support, spare parts, or service inquiries, please contact your retailer or the MOPEDIA customer service department. Contact information can usually be found on the product packaging or the MOPEDIA official website.
