Introduction
The Hatco TQ-1800H Toast Qwik Conveyor Toaster is a high-performance commercial appliance designed for efficient and consistent toasting of various bread products. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your TQ-1800H toaster. Please read all instructions carefully before operating the unit.

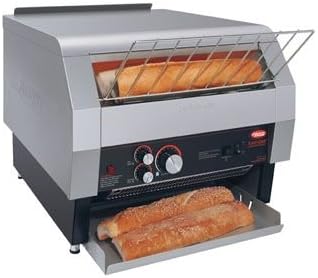

Figure 1: Hatco TQ-1800H Toast Qwik Conveyor Toaster. This image displays the Hatco TQ-1800H Toast Qwik Conveyor Toaster, a commercial-grade unit designed for high-volume toasting. The toaster features a horizontal conveyor system, a 3-inch opening for various bread types, and a pull-out crumb tray at the bottom. The control panel, visible on the front, includes knobs for adjusting settings.
Setup
- Unpacking: Carefully remove the toaster from its packaging. Inspect the unit for any shipping damage. Report any damage to the carrier immediately. Retain packaging materials for future transport or storage.
- Placement: Place the toaster on a stable, level, non-combustible surface. Ensure adequate clearance around the unit for proper ventilation. Maintain at least 6 inches (15 cm) of clear space from walls and other equipment. Do not block air vents.
- Power Connection: Ensure the electrical supply matches the voltage and wattage requirements specified on the product label. Plug the toaster into a grounded electrical outlet. Do not use extension cords.
- Initial Cleaning: Before first use, wipe down all exterior and interior surfaces with a damp cloth. Ensure the crumb tray is properly inserted.
Operating Instructions
The TQ-1800H features electronic controls and a Colorguard Sensing System for consistent toasting results.
- Power On: Turn the main power switch to the "ON" position. Allow the toaster to preheat for approximately 10-15 minutes until the heating elements glow.
- Adjusting Toasting Settings:
- Conveyor Speed Control: Use the speed control knob to adjust the conveyor belt speed. A slower speed results in darker toast, while a faster speed results in lighter toast.
- Heat Control: The toaster features independent heat controls for the top and bottom elements. Adjust these knobs to achieve desired browning on both sides of the product.
- Loading Product: Place bread, bagels, or other products onto the loading rack. The 3-inch opening accommodates a variety of items. Ensure products are placed flat and do not overlap.
- Toasting Process: The conveyor will automatically move the product through the heating chamber. Once toasted, the product will exit onto the collection tray.
- Power Off: After use, turn the main power switch to the "OFF" position. Allow the unit to cool down before cleaning.
Safety Note: The exterior surfaces of the toaster can become very hot during operation. Use caution and avoid direct contact with hot surfaces. Always unplug the unit before cleaning or servicing.
Maintenance
Regular cleaning and maintenance will ensure optimal performance and longevity of your Hatco TQ-1800H toaster.
- Daily Cleaning:
- Ensure the unit is unplugged and cool.
- Remove and empty the crumb tray. Wipe it clean with a damp cloth and mild detergent. Rinse and dry thoroughly before reinserting.
- Wipe down the exterior surfaces with a damp cloth. Do not use abrasive cleaners or scouring pads.
- Weekly/Regular Cleaning:
- With the unit unplugged and cool, carefully remove the conveyor belt assembly if accessible (refer to manufacturer's detailed cleaning instructions if needed). Clean the conveyor belt and the interior of the toaster to remove any accumulated crumbs or debris.
- Inspect heating elements for any obstructions.
- General Care: Do not immerse the toaster in water or spray water directly onto the unit. Avoid using sharp objects to clean the interior, as this may damage heating elements or other components.
Troubleshooting
This section addresses common issues you might encounter. For problems not listed here, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Toaster does not power on. | Unit unplugged; circuit breaker tripped; power switch off. | Ensure unit is plugged in securely. Check circuit breaker. Verify power switch is in "ON" position. |
| Uneven toasting or no browning. | Incorrect heat settings; conveyor speed too fast; heating elements dirty or faulty. | Adjust heat controls. Decrease conveyor speed. Clean heating elements (when cool and unplugged). If problem persists, contact service. |
| Conveyor belt not moving. | Motor issue; obstruction in conveyor path. | Check for obstructions. If clear, motor may require service. Contact customer support. |
| Excessive smoke or burning smell. | Accumulated crumbs or food debris; product stuck. | Immediately unplug the unit. Allow to cool. Clean crumb tray and interior thoroughly. Ensure product is not stuck. |
Specifications
| Feature | Detail |
|---|---|
| Model | TQ-1800H |
| Brand | Hatco |
| Wattage | 1600 watts |
| Opening Height | 3 inches |
| Capacity | Approximately 20 slices per minute |
| Controls | Electronic, Colorguard Sensing System |
| Finish Type | Polished |
| Manufacturer | Hatco |
| ASIN | B00Z2C9ZAW |
Warranty and Support
For detailed warranty information, please refer to the warranty card included with your product or visit the official Hatco website. Warranty terms and conditions may vary.
For technical assistance, parts, or service inquiries, please contact Hatco customer support. Have your model number (TQ-1800H) and serial number (if applicable) ready when contacting support.
You can typically find contact information on the manufacturer's website or in the product packaging.
