Introduction
The Benro GH2C Carbon Fiber Gimbal Head is engineered for photographers requiring precise and fluid control over long, heavy telephoto lenses. This specialized head is ideal for dynamic subjects such as wildlife and sports, allowing for effortless tracking and balanced camera movement. Constructed from high-quality carbon fiber, the GH2C offers durability while remaining lightweight and portable.
Product Overview and Parts Identification
Familiarize yourself with the key components of your Benro GH2C Gimbal Head:
- Tilt Lock Knob: Secures the vertical tilt movement of the head.
- QR Plate Sliding Lock Knob: Controls the horizontal sliding position of the quick release plate.
- Quick Release Plate: The plate that attaches to your camera or lens collar, allowing quick mounting and dismounting.
- Quick Release Plate Lock Knob: Locks the quick release plate securely into the clamp.
- 360° Horizontal Lock Knob: Secures the panoramic rotation of the head.
- 360° Horizontal Scale: Provides a reference for panoramic adjustments.

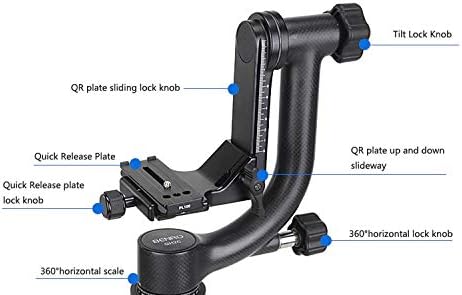

This image illustrates the various control points and features of the GH2C gimbal head, including the quick release system and adjustment knobs for tilt and panoramic rotation.
Setup
- Attaching to a Tripod:
Mount the Benro GH2C Gimbal Head onto a sturdy tripod using the standard 3/8"-16 screw thread located at the base of the gimbal head. Ensure it is securely tightened to prevent any movement during use.
- Attaching the Quick Release Plate to your Lens:
Attach the supplied PL100 quick release plate to the tripod collar of your telephoto lens. Ensure the plate is firmly secured to prevent rotation or slippage. The GH2C is compatible with the universal Arca-Swiss QR system.
- Mounting the Lens onto the Gimbal Head:
Loosen the Quick Release Plate Lock Knob. Slide the lens with the attached quick release plate into the clamp on the gimbal head. Ensure the safety lock mechanism engages. Tighten the Quick Release Plate Lock Knob to secure the lens.
- Balancing the Camera and Lens System:
Achieving proper balance is crucial for smooth operation. Loosen the Tilt Lock Knob and the QR Plate Sliding Lock Knob. Adjust the lens position forward or backward within the clamp until the lens remains horizontal when released. Adjust the vertical position of the lens collar on the gimbal arm until the lens is balanced vertically. Once balanced, tighten both the Tilt Lock Knob and the QR Plate Sliding Lock Knob. The system should now move freely with minimal effort.
This image displays the gimbal head from a side angle, highlighting the quick release plate and the overall structure, which facilitates easy setup and balancing of heavy lenses.
Operating Instructions
Once properly balanced, the Benro GH2C allows for fluid and precise camera movements.
- Tilt Movement: With the Tilt Lock Knob loosened, the gimbal head allows for smooth vertical tilting of your camera and lens. This is ideal for tracking subjects moving up or down, or for adjusting your composition vertically. The design supports extreme tilt angles for versatile shooting.
- Panoramic Rotation: Loosen the 360° Horizontal Lock Knob to enable smooth, 360-degree panoramic rotation. This feature is essential for tracking horizontal movement or capturing panoramic shots. The 360° Horizontal Scale provides reference points for precise rotational adjustments.
- Locking Mechanisms: Always ensure the Tilt Lock Knob and 360° Horizontal Lock Knob are tightened when you need to secure the camera in a fixed position or when transporting the setup.
This close-up view highlights the vertical adjustment scale and the robust construction of the gimbal's arm, which contributes to its stability and smooth operation.

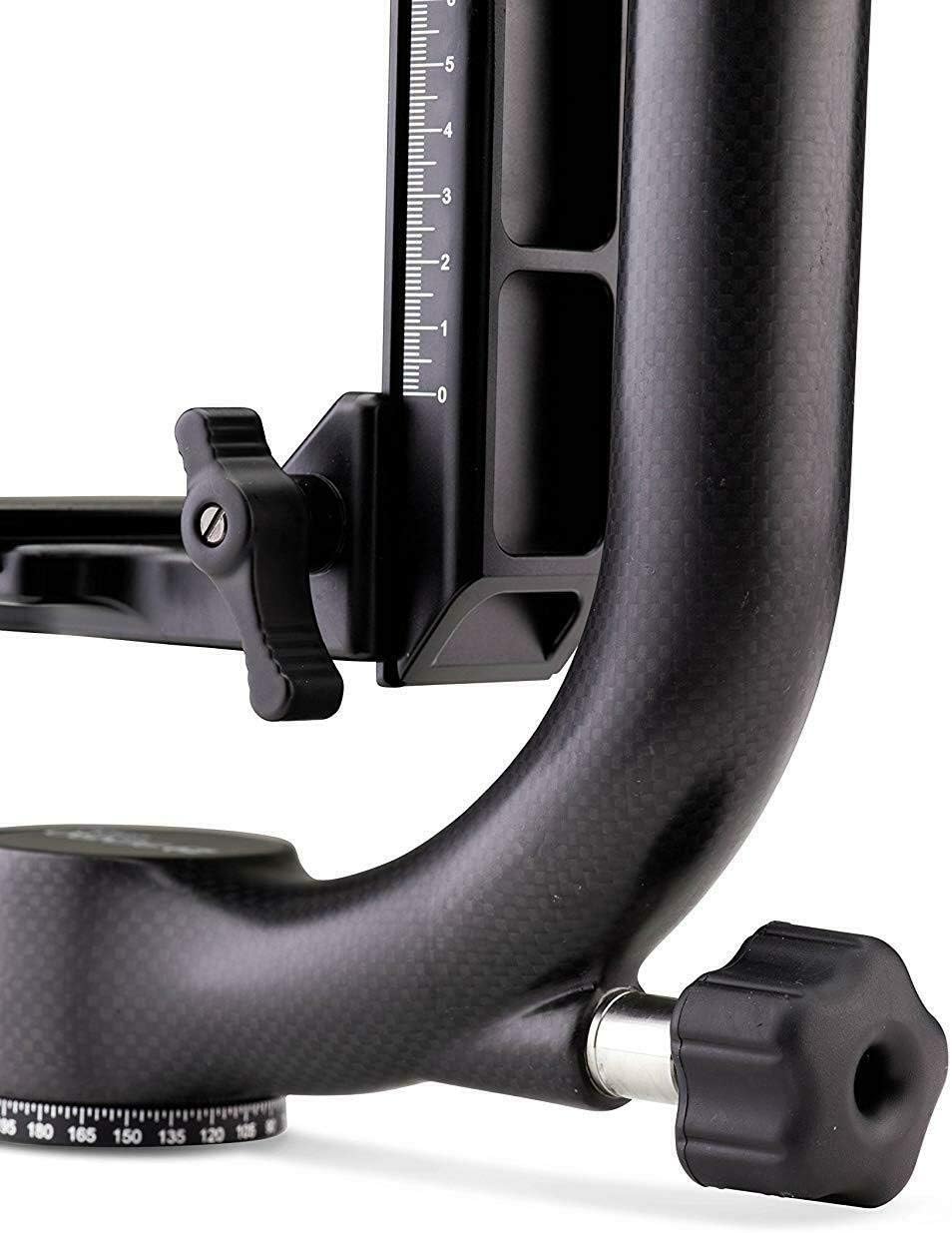

This image provides a detailed look at the base of the gimbal head, featuring the panoramic rotation scale and the horizontal lock knob, essential for controlled rotational movements.
Maintenance
- Cleaning: Use a soft, dry cloth to wipe down the gimbal head after each use. For stubborn dirt, a slightly damp cloth can be used, followed by immediate drying. Avoid harsh chemicals or abrasive materials.
- Lubrication: The GH2C is designed for maintenance-free operation regarding internal lubrication. Do not attempt to disassemble or lubricate internal components, as this may void your warranty.
- Storage: Store the gimbal head in a clean, dry environment, away from extreme temperatures and humidity. Using the provided protective bag or case is recommended to prevent scratches and dust accumulation.
- Inspection: Periodically check all knobs and screws for tightness. Ensure the quick release plate mechanism operates smoothly and securely.
Troubleshooting
| Issue | Possible Cause | Solution |
|---|---|---|
| Camera/Lens feels unbalanced or tips forward/backward. | Improper balancing. | Re-balance the camera and lens system by adjusting the quick release plate's position and the vertical height on the gimbal arm. Ensure all lock knobs are loose during balancing, then tighten them. |
| Movement is stiff or jerky. | Lock knobs are too tight; dirt or debris in moving parts. | Ensure the Tilt Lock Knob and 360° Horizontal Lock Knob are sufficiently loosened for free movement. Clean any visible dirt or debris from the moving joints with a soft cloth. |
| Quick Release Plate does not secure properly. | Plate not fully inserted; Quick Release Plate Lock Knob not tightened; incompatible plate. | Ensure the quick release plate is fully seated in the clamp and the safety lock engages. Tighten the Quick Release Plate Lock Knob firmly. Verify that the plate is an Arca-Swiss compatible type. |
| Gimbal head wobbles on tripod. | Gimbal head not securely attached to tripod. | Ensure the gimbal head is tightly screwed onto the tripod's mounting plate. Check the tripod legs and head for any looseness. |
Specifications
- Model: GH2C
- Material: Carbon Fiber
- Color: Black
- Item Weight: Approximately 2.8 lbs (1.27 kg)
- Maximum Load Capacity: 55 lbs (25 kg)
- Height: 9.5 inches (24.13 cm)
- Compatible QR System: Arca-Swiss
- Included Accessories: PL100 Quick Release Plate
- Compatible Devices: Camera (with appropriate lens collar)
Warranty and Support
The Benro GH2C Gimbal Head comes with a Limited 3-Year Warranty. This warranty can be extended to 5 years upon online registration of your product with Benro. For warranty claims, technical support, or service inquiries, please contact Benro customer service or visit the official Benro website for detailed contact information.
Please retain your proof of purchase for warranty validation.
