Monroe Shocks & Struts Magnum Severe Service 553015 Suspension Strut Instruction Manual

1. Product Overview

The Monroe Magnum Severe Service 553015 Suspension Strut is engineered for demanding vehicle applications, including emergency, municipal, fleet, and jobsite vehicles. It features enhanced components designed for superior control and extended service life in challenging environments. This strut is built to withstand frequent stops, heavy loads, and high mileage, ensuring reliable performance.

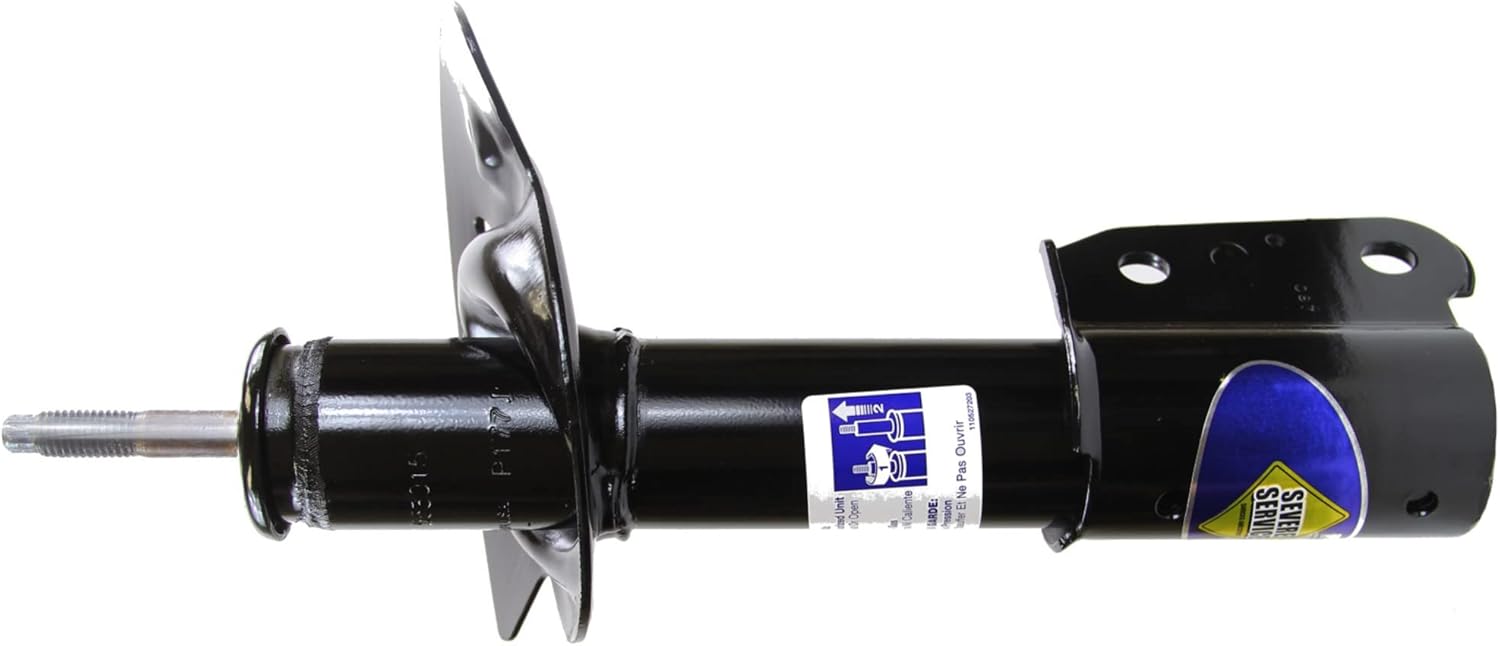

Figure 1: The Monroe Magnum Severe Service 553015 Suspension Strut, designed for heavy-duty applications.

2. Key Features and Benefits

• Engineered for Emergency and Fleet Vehicles: Features 10-stage valving that adjusts to road extremes, optimizing performance for frequent stops, heavy loads, and high mileage.
• Enhanced Control and Durability: A fluon-banded piston reduces friction between the piston and pressure tube, improving responsiveness to varying road surfaces.
• Long-lasting Construction: Incorporates a heavy-duty chrome rod and fluon-banded piston for extended service life. A PTFE-coated bearing further reduces friction between the rod and guide.
• Improved Performance: Nitrogen gas-charge helps maintain consistent tire-to-road contact, enhancing ride quality and handling by minimizing aeration and shock fade.
• Consistent Ride Quality: OE all-weather fluid contains specialized modifiers to manage extreme temperatures, reduce friction, and ensure smooth rod reaction across various conditions.

Figure 2: Visual representation of the Monroe Magnum strut's internal components and their functions.

3. Setup and Installation

Installation of suspension components like the Monroe Magnum Severe Service 553015 Strut requires specialized tools and expertise. For safety and proper function, it is highly recommended that installation be performed by a qualified automotive technician.

3.1. Included Components

The product package typically includes:

• Monroe Magnum Severe Service 553015 Suspension Strut
• Mounting Hardware
• Parts Pack(s)

3.2. General Installation Guidelines (Professional Installation Recommended)

1. Ensure the vehicle is safely lifted and supported on jack stands or a lift.
2. Remove the wheel and any components obstructing access to the existing strut assembly.
3. Carefully disconnect brake lines, ABS sensors, and sway bar links as necessary.
4. Unbolt the old strut assembly from the vehicle's chassis and lower control arm.
5. Transfer any necessary components (e.g., coil spring, top mount) from the old strut to the new Monroe 553015 strut, using appropriate spring compressors if required.
6. Install the new strut assembly, ensuring all bolts are torqued to the manufacturer's specifications.
7. Reconnect all disconnected components.
8. Lower the vehicle and perform a wheel alignment to ensure proper handling and tire wear.

Figure 3: A professional technician performing an inspection, highlighting the need for expert handling of suspension systems.

4. Operating Principles

The Monroe Magnum Severe Service 553015 Strut operates by controlling unwanted spring and suspension movement. Its advanced design ensures optimal vehicle stability and ride comfort, especially under severe operating conditions.

• Damping Mechanism: The internal 10-stage valving system dynamically adjusts damping forces in response to road conditions, providing precise control over wheel movement.
• Friction Reduction: The fluon-banded piston and PTFE-coated bearing minimize internal friction, allowing for smoother operation and quicker response to bumps and dips.
• Aeration Prevention: The nitrogen gas-charge prevents the hydraulic fluid from aerating (forming bubbles) under extreme conditions, which can lead to a loss of damping effectiveness (fade). This ensures consistent performance.
• Temperature Stability: The OE all-weather fluid maintains its viscosity and performance across a wide range of temperatures, contributing to reliable operation in diverse climates.

Figure 4: The Monroe Magnum strut, engineered for improved performance through its nitrogen gas-charge system.

5. Maintenance

Monroe Magnum Severe Service struts are designed for long-term durability and typically do not require routine maintenance beyond regular vehicle inspections. However, periodic checks are recommended to ensure optimal performance and safety.

5.1. Recommended Checks

• Visual Inspection: During routine vehicle service, inspect the struts for any signs of fluid leaks, physical damage, bent rods, or worn bushings.
• Mounting Hardware: Ensure all mounting bolts and nuts are secure and torqued to specifications.
• Performance Check: Pay attention to changes in ride quality, excessive bouncing, or unusual noises, which may indicate a need for further inspection or replacement.

If any issues are detected, consult a qualified automotive technician for diagnosis and repair.

6. Troubleshooting

While Monroe Magnum Severe Service struts are built for reliability, certain symptoms may indicate a need for inspection or replacement. Since these are critical safety components, any suspected issues should be addressed by a professional.

6.1. Common Symptoms of Worn Struts

• Excessive Bouncing: The vehicle continues to bounce after hitting a bump.
• Nose Dive or Squat: The front of the vehicle dips excessively during braking, or the rear squats during acceleration.
• Uneven Tire Wear: Scalloped or cupped wear patterns on tires.
• Fluid Leaks: Visible oil or fluid leaking from the strut body.
• Steering Instability: Loose or wandering steering, especially at higher speeds.
• Unusual Noises: Clunking or rattling sounds from the suspension.

If you experience any of these symptoms, it is crucial to have your vehicle inspected by a certified mechanic immediately. Continuing to drive with worn suspension components can compromise vehicle safety and control.

7. Specifications

8. Warranty and Support

Specific warranty details for the Monroe Magnum Severe Service 553015 Suspension Strut are typically provided at the point of purchase or can be found on the official Monroe website. It is recommended to retain your purchase receipt for warranty claims.

8.1. Customer Support

For technical assistance, installation questions, or warranty inquiries, please contact Monroe customer support directly. Visit the official Monroe website for the most current contact information and support resources.

You can often find additional information and support by visiting the Monroe Store on Amazon.
