Frigidaire 137288500 Washing Machine Wire Harness User Manual

1. Product Overview

The Frigidaire 137288500 is a genuine Original Equipment Manufacturer (OEM) wire harness designed for washing machines. This component is crucial for connecting various electrical parts within your appliance, ensuring proper communication and function between them.

This wire harness is a direct replacement part and does not supersede any previous part numbers. It is essential for the correct operation of your washing machine's electrical system.

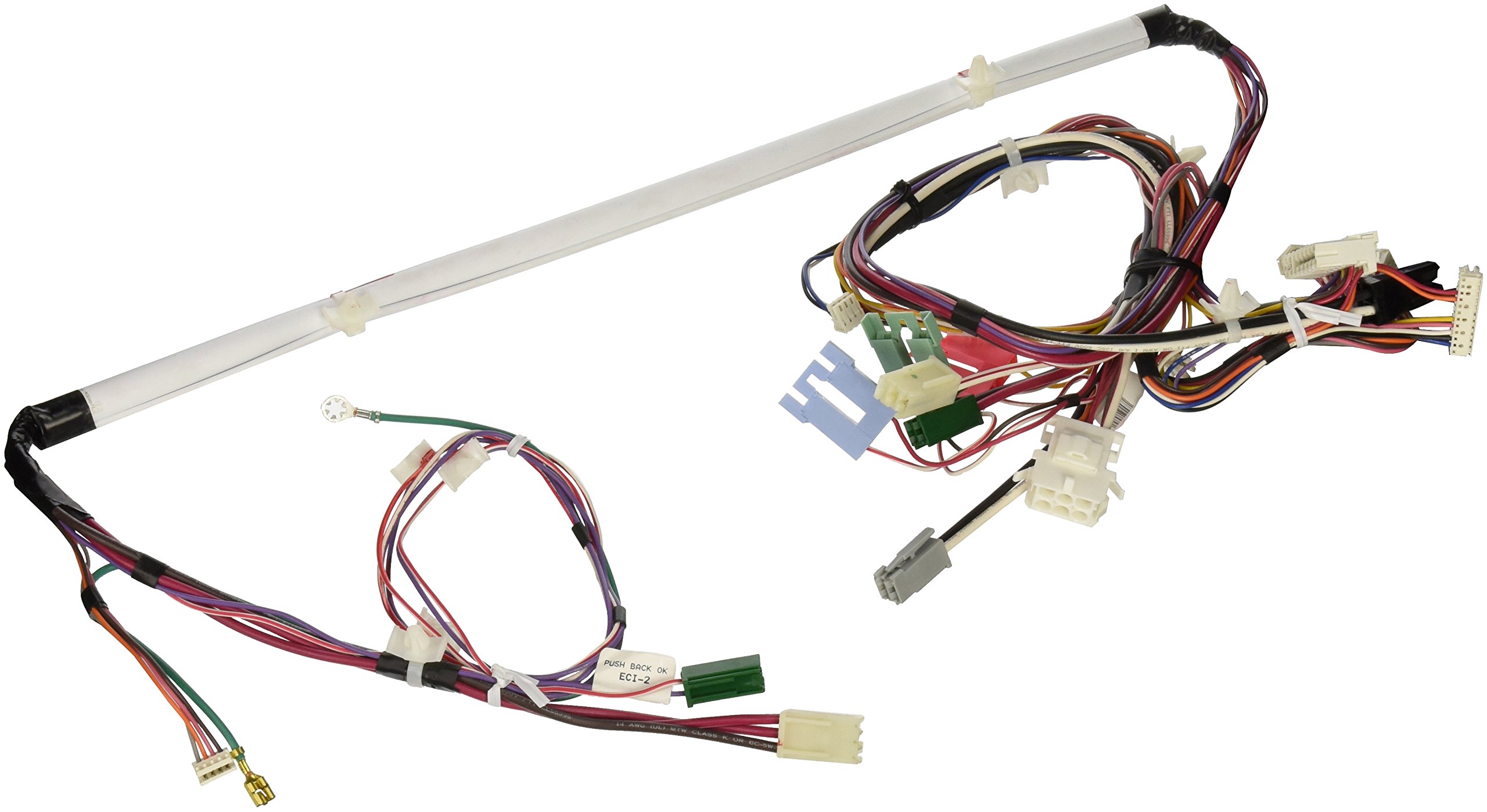

Figure 1: Frigidaire 137288500 Washing Machine Wire Harness. This image displays the complete wire harness with its various connectors and bundled wires.

2. Compatibility

The Frigidaire 137288500 Wire Harness is compatible with various washing machine models from the following brands:

• Frigidaire
• Crosley
• Kenmore
• White-Westinghouse

Always refer to your appliance's service manual or contact the manufacturer to validate the correct part number for your specific model before purchasing and installing.

3. Safety Information

WARNING: Before attempting any installation or repair, ensure the washing machine is completely disconnected from its power source. Failure to do so can result in electric shock, injury, or death.

• Always wear appropriate personal protective equipment (PPE), such as gloves and eye protection.
• If you are not comfortable performing electrical repairs, it is highly recommended to contact a qualified service professional.
• Inspect the new wire harness for any visible damage before installation.

4. Installation

Installation of the Frigidaire 137288500 Wire Harness typically involves accessing the internal components of the washing machine. Due to the complexity and electrical nature of this part, professional installation is recommended.

General Steps (Consult your appliance's service manual for specific instructions):

1. Disconnect Power: Unplug the washing machine from the electrical outlet. Turn off the circuit breaker supplying power to the appliance.
2. Access Components: Depending on your washing machine model, you may need to remove the back panel, top panel, or control console to access the existing wire harness.
3. Document Connections: Before disconnecting the old harness, take photographs or make detailed diagrams of all connections to ensure correct reassembly.
4. Remove Old Harness: Carefully disconnect all connectors of the old wire harness from the various electrical components (e.g., motor, control board, sensors).
5. Install New Harness: Connect the new Frigidaire 137288500 Wire Harness, ensuring each connector is securely attached to its corresponding component as documented.
6. Secure Wiring: Route the new harness wires neatly and secure them with any existing clips or ties to prevent interference with moving parts.
7. Reassemble: Reattach any panels or components removed during access.
8. Restore Power: Plug the washing machine back into the electrical outlet and turn on the circuit breaker.
9. Test Functionality: Run a short cycle to confirm the washing machine operates correctly.

If you encounter any difficulties, consult a qualified appliance technician.

5. Operating Instructions

As a wire harness, this component does not have direct operating instructions. Its function is to facilitate the electrical connections necessary for the washing machine's various parts to operate as designed. Once correctly installed, the wire harness enables the washing machine's control board to communicate with and power components such as the motor, water valves, and sensors, allowing you to select and run wash cycles.

Refer to your washing machine's primary user manual for instructions on how to operate the appliance itself.

6. Maintenance

The Frigidaire 137288500 Wire Harness is designed for durability and typically requires no routine maintenance. However, periodic inspection can help identify potential issues:

• Visual Inspection: If you are accessing the internal components for other repairs, visually inspect the wire harness for any signs of wear, fraying, cracks in insulation, or loose connections.
• Connection Security: Ensure all connectors remain firmly seated.
• Environmental Factors: Keep the area around the washing machine dry to prevent moisture from affecting electrical components.

If any damage is observed, the wire harness should be replaced to ensure safe and reliable operation of the appliance.

7. Troubleshooting

A damaged or faulty wire harness can lead to various issues with your washing machine. If you experience any of the following symptoms after installation or during normal operation, the wire harness may be a contributing factor:

• Washing machine does not power on.
• Specific functions (e.g., agitation, spinning, draining) do not work.
• Intermittent operation or unexpected pauses during cycles.
• Error codes related to electrical components or communication.
• Burning smell or visible signs of electrical arcing (immediately disconnect power if this occurs).

Troubleshooting Steps:

1. Power Check: Ensure the washing machine is properly plugged in and the circuit breaker is on.
2. Visual Inspection: With power disconnected, carefully inspect the wire harness for any loose, corroded, or damaged connections.
3. Continuity Test: A qualified technician can use a multimeter to test the continuity of individual wires within the harness to identify breaks.

If a fault is identified within the wire harness, replacement is typically the only solution. Do not attempt to repair damaged wires within the harness unless you are a qualified professional.

8. Specifications

9. Warranty Information

Specific warranty information for the Frigidaire 137288500 Washing Machine Wire Harness is not provided in this document. Please refer to the original purchase documentation or contact Frigidaire customer support for details regarding warranty coverage.

10. Support

For further assistance, technical support, or to locate a qualified service professional, please contact Frigidaire customer service or visit their official website. When contacting support, have your washing machine's model and serial number, along with the part number 137288500, readily available.

You can typically find contact information in your washing machine's main user manual or on the Frigidaire official website.
