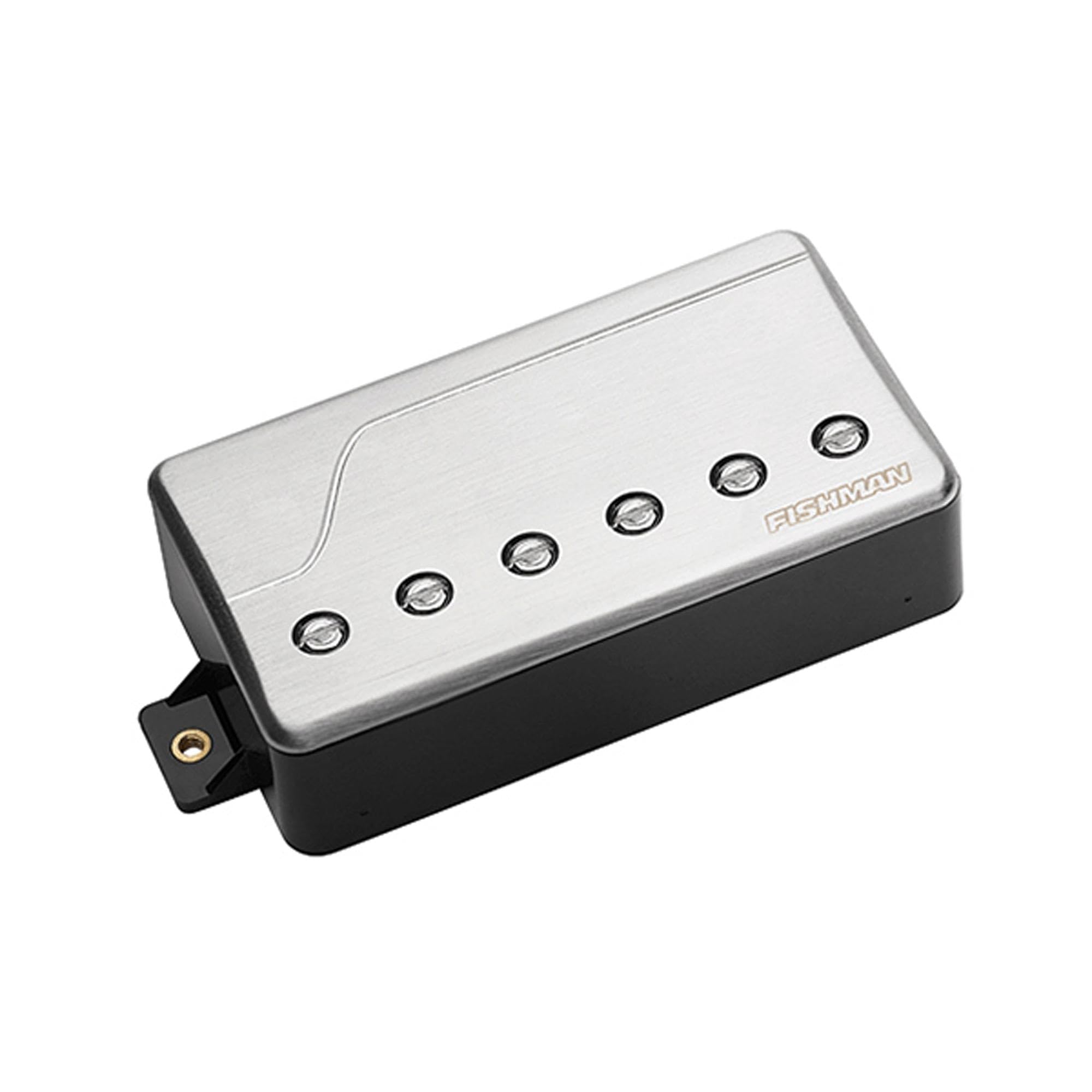

The Fishman Fluence Classic Humbucker Bridge Pickup (Model PRF-CHB-BR1) offers advanced guitar tone technology, providing two distinct and useful voices. These pickups are engineered to be free from the hum, noise, and inductance issues common in traditional wire-wound pickups, delivering a pure and musical tone. The Fluence Core technology allows for consistent sound quality and versatile tonal options.
This bridge pickup features:
Voice 1: Vintage P.A.F. - A calibrated vintage P.A.F. bridge humbucker tone with optimal output.
Voice 2: Classic Hot Rod - A quintessential hot-rodded bridge humbucker tone.
Noise-free operation, eliminating hum and frustrating inductance issues.
Powered by a 9-volt battery or an optional rechargeable battery pack, offering up to 200 hours of battery life.
Installation of Fishman Fluence pickups involves electrical wiring and may require minor modifications to your instrument. Professional installation by a qualified guitar technician is highly recommended to ensure proper functionality and to avoid damage to your guitar or the pickup.
Wiring
Detailed wiring diagrams for various configurations (including single pickup, multiple pickups, and voice switching options) are available on the official Fishman website. It is crucial to follow these diagrams precisely for optimal performance. Fluence pickups typically utilize a push/pull pot or a dedicated switch for voice selection.
Note: Some users have reported that the pot shafts provided with active pickups may be thicker than standard, potentially requiring the widening of pot holes in the guitar body. Verify compatibility before installation.
Powering the Pickup
Fluence pickups require a 9-volt power source. This can be supplied by a standard 9V battery or a Fishman Fluence rechargeable battery pack. Ensure the battery is correctly connected and fully charged before use.
Operating Instructions
Voice Selection
Your Fishman Fluence Classic Humbucker Bridge Pickup offers two distinct voices. These voices are typically accessed via a push/pull tone pot or a mini-toggle switch, depending on your guitar's wiring configuration:
Voice 2 (Classic Hot Rod): Delivers a powerful, hot-rodded humbucker tone.
Experiment with both voices to find the sound that best suits your playing style and musical context.
Volume and Tone Controls
The pickup responds to your guitar's standard volume and tone controls. Due to the active nature of Fluence pickups, the tone remains consistent across various cable lengths and amplifier inputs, without the typical loading effects of passive pickups.
Maintenance
Battery Management
If using a Fishman Fluence rechargeable battery pack, connect a standard micro-USB cell phone charger to the charging port (often located on the control cavity cover or spring cover). A charge indicator light will illuminate when the battery is low, typically providing 6-7 more hours of play time before needing a recharge. The battery pack offers approximately 200 hours of continuous play on a full charge.
For standard 9V batteries, replace them when the sound becomes weak or distorted. Always unplug your guitar when not in use to conserve battery life.
Cleaning
Wipe the pickup covers with a soft, dry cloth to remove dust and grime. Avoid using abrasive cleaners or solvents, as these can damage the finish.
Troubleshooting
No Sound or Weak Signal: Check the battery charge. Ensure all connections are secure and correctly wired.
Unwanted Hum or Noise: Fishman Fluence pickups are designed to be noise-free. If you experience hum, check your guitar's grounding, cable connections, and ensure there are no external sources of electromagnetic interference.
Incorrect Tone: Verify that the voice selection switch/pot is in the desired position. Refer to the wiring diagram to confirm correct installation of voice switching.
Physical Fit Issues: If the control pots do not fit existing holes, minor widening of the pot holes may be necessary. This should be performed by a professional to prevent damage to the guitar.
Video: An overview of Fishman Fluence technology, discussing the innovative Fluence Core, noise-free operation, and rechargeable power options for electric guitar pickups. This video provides general information about the Fluence line, including the principles behind their design and functionality.
Warranty Information
Fishman products are covered by a manufacturer's warranty against defects in materials and workmanship. For specific warranty terms, conditions, and registration, please refer to the official Fishman website or contact their customer support directly. Retain your proof of purchase for warranty claims.
Support
For further assistance, technical support, or to access the latest wiring diagrams and product documentation, please visit the official Fishman website:
