1. Introduction
This manual provides essential information for the proper installation, use, and maintenance of your BLACK+DECKER 24239300 Boot Foot. This component is an Original Equipment Manufacturer (OEM) authorized replacement part designed to ensure the stability and functionality of compatible BLACK+DECKER Workmate models. Please read these instructions carefully before proceeding.
2. Product Overview

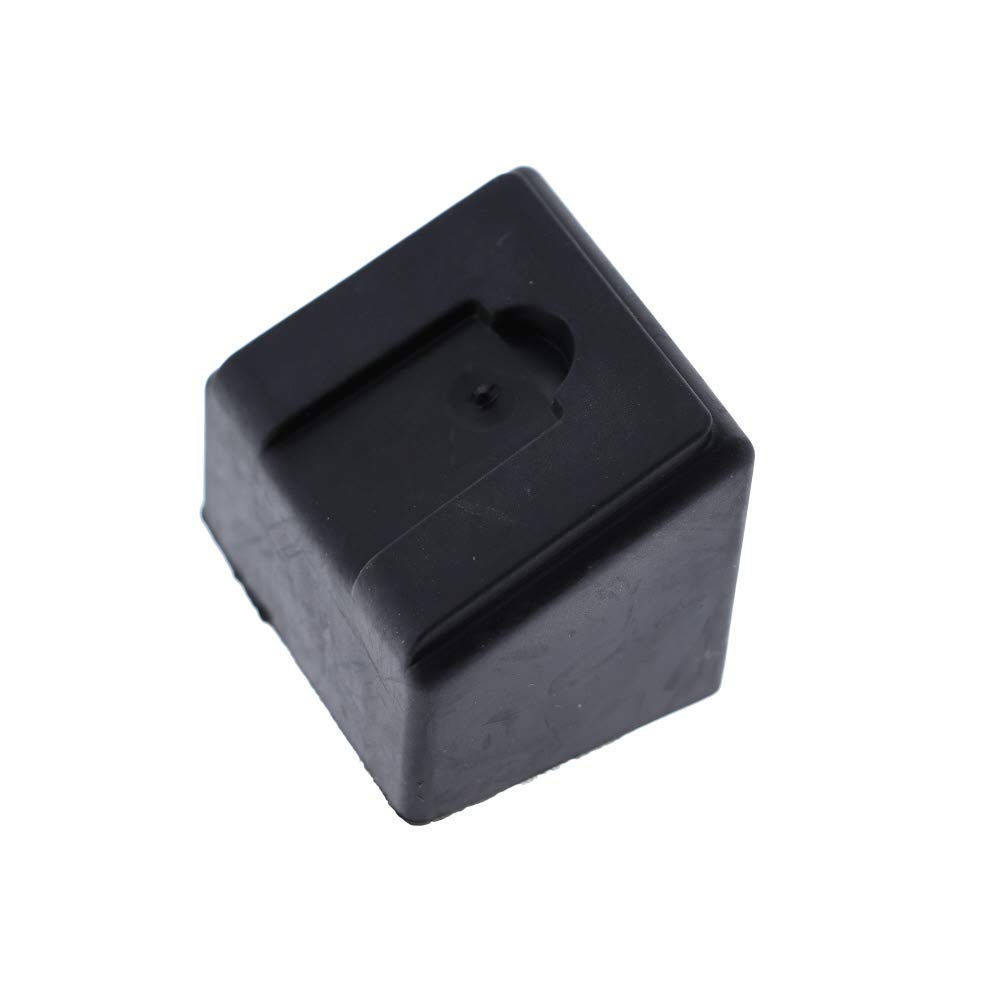

Figure 1: The BLACK+DECKER 24239300 Boot Foot. This image displays the single black plastic boot foot, designed to fit the leg of a Workmate workbench.
The 24239300 Boot Foot is a critical component for maintaining the stability and level positioning of your BLACK+DECKER Workmate portable workbench. It is made from durable plastic and is designed for a precise fit, preventing wobbling and protecting floor surfaces from scratches.
3. Compatibility
The BLACK+DECKER 24239300 Boot Foot is an OEM replacement part compatible with various BLACK+DECKER Workmate models. Known compatible models include, but are not limited to, the Workmate 200 and Workmate 400 series. Always verify your tool's part requirements before purchasing replacement components.
4. Package Contents
- One (1) BLACK+DECKER 24239300 Boot Foot
5. Safety Information
When replacing parts on your Workmate, always ensure the workbench is stable and unloaded. Use appropriate personal protective equipment if necessary. Keep small parts away from children. This part is not a toy.
6. Setup and Installation
Follow these steps to properly install the 24239300 Boot Foot:
- Prepare the Workmate: Ensure your BLACK+DECKER Workmate is folded or positioned in a way that allows easy access to the leg where the boot foot needs to be replaced. If an old boot foot is present, carefully remove it.
- Align the Boot Foot: Take the new 24239300 Boot Foot. Align the opening of the boot foot with the bottom end of the Workmate leg.
- Install the Boot Foot: Firmly press the boot foot onto the leg. You may need to apply steady pressure or gently tap it with a rubber mallet to ensure it is fully seated. The fit should be snug to prevent it from coming loose during use.
- Verify Installation: Once installed, check that the boot foot is securely attached and does not wobble. Ensure all boot feet on your Workmate are properly installed and provide a level, stable base.
Figure 2: Illustrative image of a boot foot being pressed onto a Workmate leg. This shows the process of aligning and securing the replacement foot.
7. Operation
The boot foot functions passively by providing a stable, non-slip base for your Workmate. Its primary role is to prevent the workbench from sliding during use and to protect the floor surface from damage. Ensure all boot feet are present and in good condition before placing any load on the Workmate.
8. Maintenance
- Regular Inspection: Periodically inspect the boot feet for signs of wear, cracking, or damage. Worn boot feet can compromise the stability of your Workmate.
- Cleaning: Clean the boot feet with a damp cloth to remove dirt, sawdust, or debris that could affect their grip.
- Replacement: If a boot foot shows significant wear or damage, replace it immediately with a genuine BLACK+DECKER 24239300 Boot Foot to maintain optimal performance and safety.
9. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Workmate wobbles or is unstable. | One or more boot feet are missing, worn, or improperly installed. | Inspect all boot feet. Replace any missing or worn feet. Ensure all feet are fully seated and securely attached to the legs. |
| Boot foot falls off easily. | Improper installation or damaged boot foot/leg. | Re-install the boot foot, ensuring it is pressed firmly onto the leg. If it still does not hold, inspect the boot foot for damage or the Workmate leg for deformation. Replace the boot foot if damaged. |
10. Specifications
- Part Number: 24239300
- Manufacturer: BLACK+DECKER
- Material: Plastic
- Item Weight: Approximately 0.48 ounces (13.6 grams)
- Product Dimensions: Approximately 1 x 1 x 1 inches (2.54 x 2.54 x 2.54 cm)
- Item Package Quantity: 1
- Power Source: Manual (for the Workmate itself)
11. Warranty and Support
As an Original Equipment Manufacturer (OEM) authorized part, the BLACK+DECKER 24239300 Boot Foot is designed to meet the quality standards of BLACK+DECKER. For specific warranty information or technical support regarding this part or your BLACK+DECKER Workmate, please refer to the documentation provided with your original Workmate product or visit the official BLACK+DECKER website.
