SunSun CEF-30000 High Efficiency Pond Pump User Manual

Introduction

The SunSun CEF-30000 is a high-performance pond pump designed for continuous operation in various water circulation systems, including ponds and streams. It offers a flow rate of 30000 liters per hour with a power consumption of 200W. This pump is engineered to handle dirt particles up to 6 mm in size without clogging, thanks to its robust strainer. Its wear-resistant embedded shaft ensures a long operational life. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your SunSun CEF-30000 pond pump.

Safety Instructions

Please read and understand all safety instructions before installing or operating the pump. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always disconnect the pump from the power supply before performing any maintenance or cleaning.
• Ensure the power outlet is properly grounded and protected by a Residual Current Device (RCD) with a tripping current not exceeding 30 mA.
• Do not operate the pump if the power cord or plug is damaged.
• Do not lift or carry the pump by its power cord.
• Ensure the pump is fully submerged during operation to prevent overheating.
• Keep children and pets away from the pump and pond area during operation and maintenance.
• This pump is designed for water circulation only. Do not use it for flammable liquids or other hazardous materials.

Product Overview

Familiarize yourself with the components of your SunSun CEF-30000 pond pump.

Image: Exploded view of the SunSun CEF-30000 pond pump, showing its internal and external components. Each part is numbered for easy identification.

Setup and Installation

Follow these steps for proper installation of your pond pump:

1. Positioning: The pump can be used in either a horizontal or vertical position. Ensure it is placed on a stable surface within the pond.
2. Hose Connection: The CEF-30000 features a 110 mm outlet. Connect a standard PVC tube to this outlet. It can be inserted or glued for a secure fit.
3. Submersion: Ensure the pump is fully submerged in water before connecting it to the power supply.
4. Power Connection: Connect the 10-meter power cable to a properly grounded and RCD-protected power outlet.

Image: The SunSun CEF-30000 pump in operation, showing strong water flow from its 110 mm outlet, designed to improve water circulation in the pond.

Operating Instructions

The SunSun CEF-30000 is designed for continuous operation. Once installed and powered, it will begin circulating water. The optimal circulation cycle depends on various factors:

• Koi Pond/Fish Pond: For ponds with fish, especially Koi, aim for approximately one circulation cycle every 3 hours. For ponds without plants and a large fish population, 2 circulations per hour may be necessary.
• Garden Pond/Plant Pond (Fish-free): A high number of circulations is not typically required. One circulation per day is generally sufficient to enrich the water with oxygen and maintain movement.
• Natural Pool: Circulation requirements vary significantly based on planting and individual needs. The upper limit is typically one circulation every 2-3 hours, with smaller circulations being the lower limit.

Ensure that other components of your filtering system are compatible with the pump's flow rate for optimal performance.

Image: The SunSun CEF-30000 pond pump effectively circulating water, creating a strong flow in a pond with aquatic plants.

Maintenance

Regular cleaning is essential to ensure the proper functioning and longevity of your pond pump.

1. Disconnect Power: Always unplug the pump from the power source before any maintenance.
2. Clean Filter Basket: The robust filter basket is designed to prevent clogging by handling dirt particles up to 6 mm. Periodically remove and clean the filter basket to remove accumulated debris.
3. Inspect Impeller: Check the impeller for any blockages or wear. Clear any debris that may have bypassed the filter.
4. Rinse Components: Rinse all pump components with clean water. Do not use harsh chemicals or abrasive materials.
5. Reassemble: Carefully reassemble the pump, ensuring all seals are correctly seated.

Image: A close-up view of the SunSun CEF-30000 pump's filter basket, illustrating its effectiveness in preventing clogging by filtering out particles.

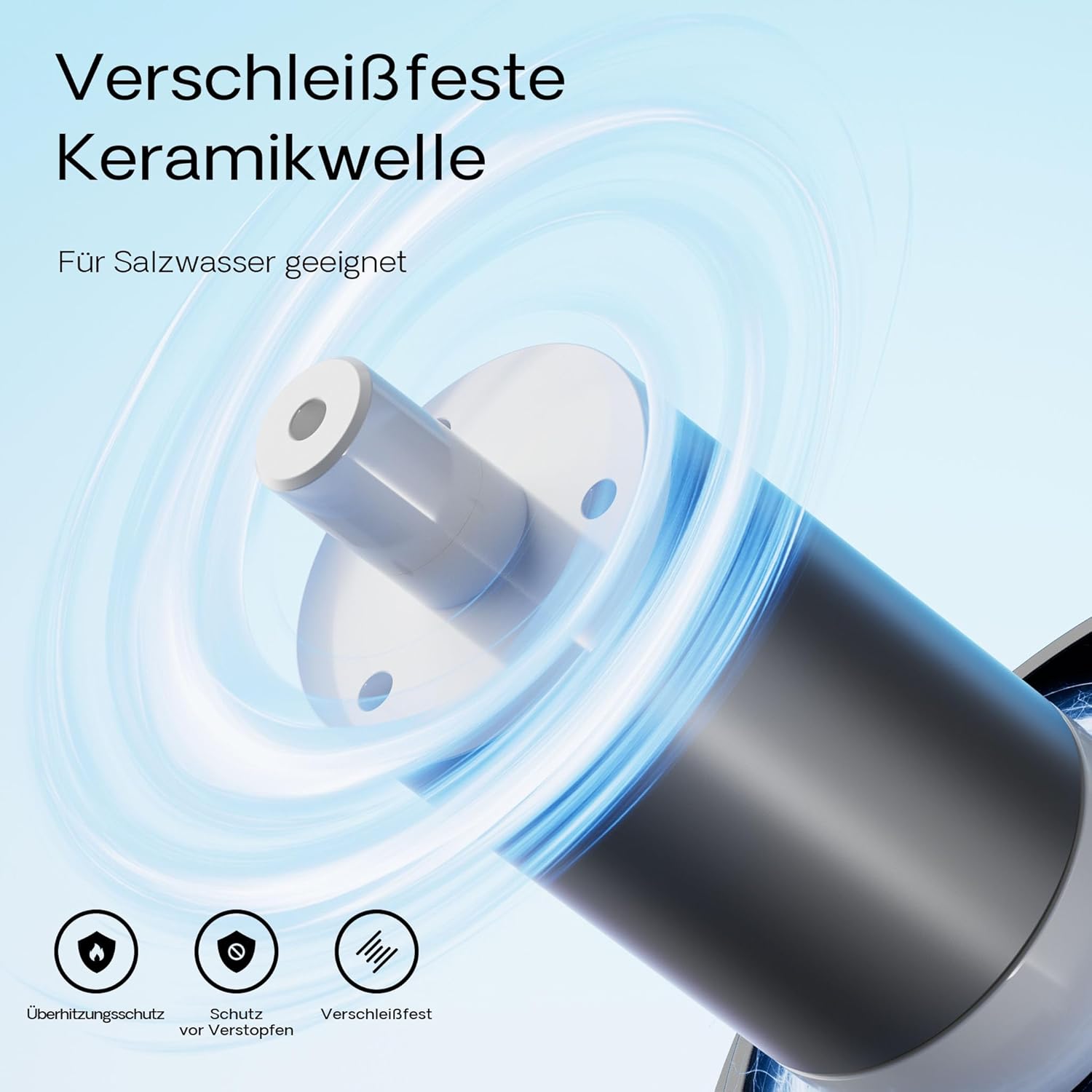

Image: A detailed view highlighting the wear-resistant ceramic shaft of the SunSun CEF-30000 pump, indicating its suitability for various water conditions, including saltwater, and its durability features like overheating protection and clog prevention.

Troubleshooting

If your pump is not operating correctly, refer to the following common issues and solutions:

• Pump not starting:
  • Check if the power cord is securely plugged into a working outlet.
  • Verify that the RCD has not tripped.
  • Inspect the impeller for any blockages.
• Reduced water flow:
  • Clean the filter basket and remove any debris.
  • Check the outlet hose for kinks or blockages.
  • Ensure the pump is fully submerged.
• Unusual noise:
  • Disconnect power and inspect the impeller for foreign objects.
  • Ensure the pump is placed on a stable surface.

If problems persist, contact customer support.

Specifications

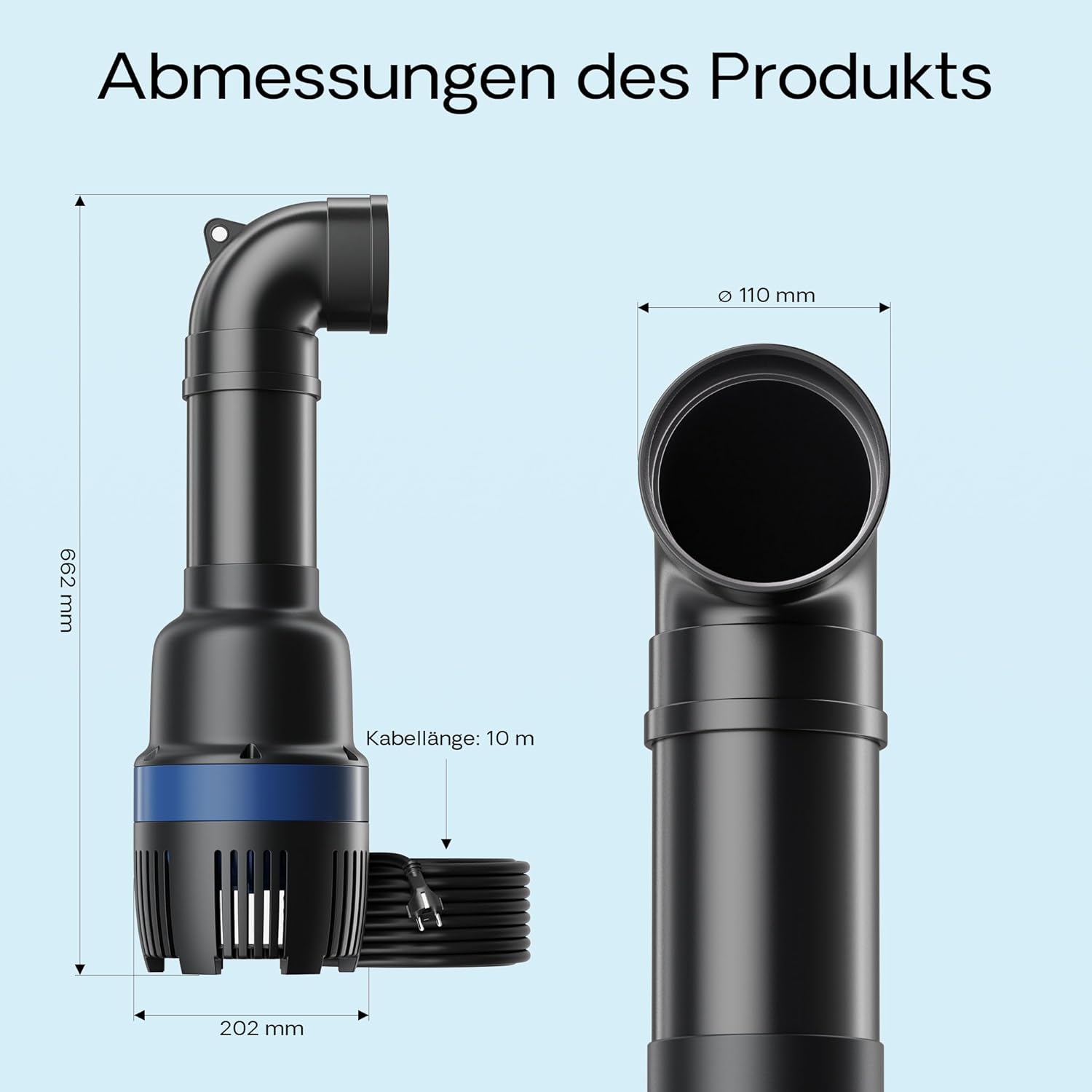

Image: Technical drawing illustrating the dimensions of the SunSun CEF-30000 pond pump, including its height (662 mm), width (202 mm), and cable length (10 m).

Image: A graph showing the performance curve of the CEF-30000 pond pump, alongside key specifications such as maximum head (4 m), flow rate (30000 l/h), power (200 W), and protection type (IPX8).

Warranty and Support

For warranty information or technical support, please refer to the retailer where the product was purchased or visit the official SunSun website. Keep your proof of purchase for any warranty claims.
