onlyfire Universal Electric Grill Rotisserie Motor (Model A212) - Instruction Manual

1. Product Overview

The onlyfire Universal Electric Grill Rotisserie Motor, Model A212, is designed to provide consistent rotation for your grill rotisserie setup. This 110 Volt, 4 Watt motor features a convenient on/off waterproof switch and is constructed with durable black plastic. It is engineered for reliable and smooth operation, making it an ideal replacement or upgrade for various grill brands.

Key Features:

• Power: 110 volts, 4 watts.
• Control: Integrated on/off waterproof switch.
• Compatibility: Fits standard 3-inch motor mounts and standard 5/16-inch square drive rotisserie spit rods.
• Operation: Anti-Backlash Gear Train ensures reliable, smooth rotation.
• Cord Length: 36 inches.

Figure 1: Front view of the onlyfire Universal Electric Grill Rotisserie Motor, Model A212, highlighting the on/off switch and power cord.

Figure 2: Diagram illustrating the 120V powerful electric motor, insulated shell, and waterproof switch features of the rotisserie motor.

2. Safety Information

• Electrical Safety: To ensure continued protection against the risk of electric shock, connect the motor only to properly grounded outlets.
• Weather Protection: Do not expose the motor to rain or excessive moisture. The switch is waterproof, but the unit is not designed for prolonged exposure to harsh weather conditions.
• Placement: Ensure the motor is securely mounted and away from direct heat sources that could damage its plastic casing.
• Spit Rod Compatibility: Always measure the size of your spit rods and compare them with the motor's specifications (5/16-inch square drive) before operation to ensure a secure fit and prevent damage.

3. Package Contents

Your onlyfire Universal Electric Grill Rotisserie Motor package typically includes the rotisserie motor unit with an attached power cord and on/off switch. Additional rotisserie kit components such as spit rods, forks, and mounting brackets are usually sold separately or as part of a complete rotisserie kit.

4. Setup & Installation

4.1 Mounting the Motor

1. Identify the standard 3-inch motor mount on your grill.
2. Align the motor's mounting plate with the grill's motor mount.
3. Secure the motor to the mount using appropriate fasteners (not included with motor unit).

Figure 3: Rear view of the rotisserie motor, illustrating the mounting plate and square drive opening for the spit rod.

4.2 Attaching the Spit Rod

1. Ensure your spit rod has a 5/16-inch square drive end.
2. Insert the square end of the spit rod into the motor's drive socket.
3. Secure the spit rod with any retaining mechanisms on your rotisserie kit (e.g., thumbscrews on forks).

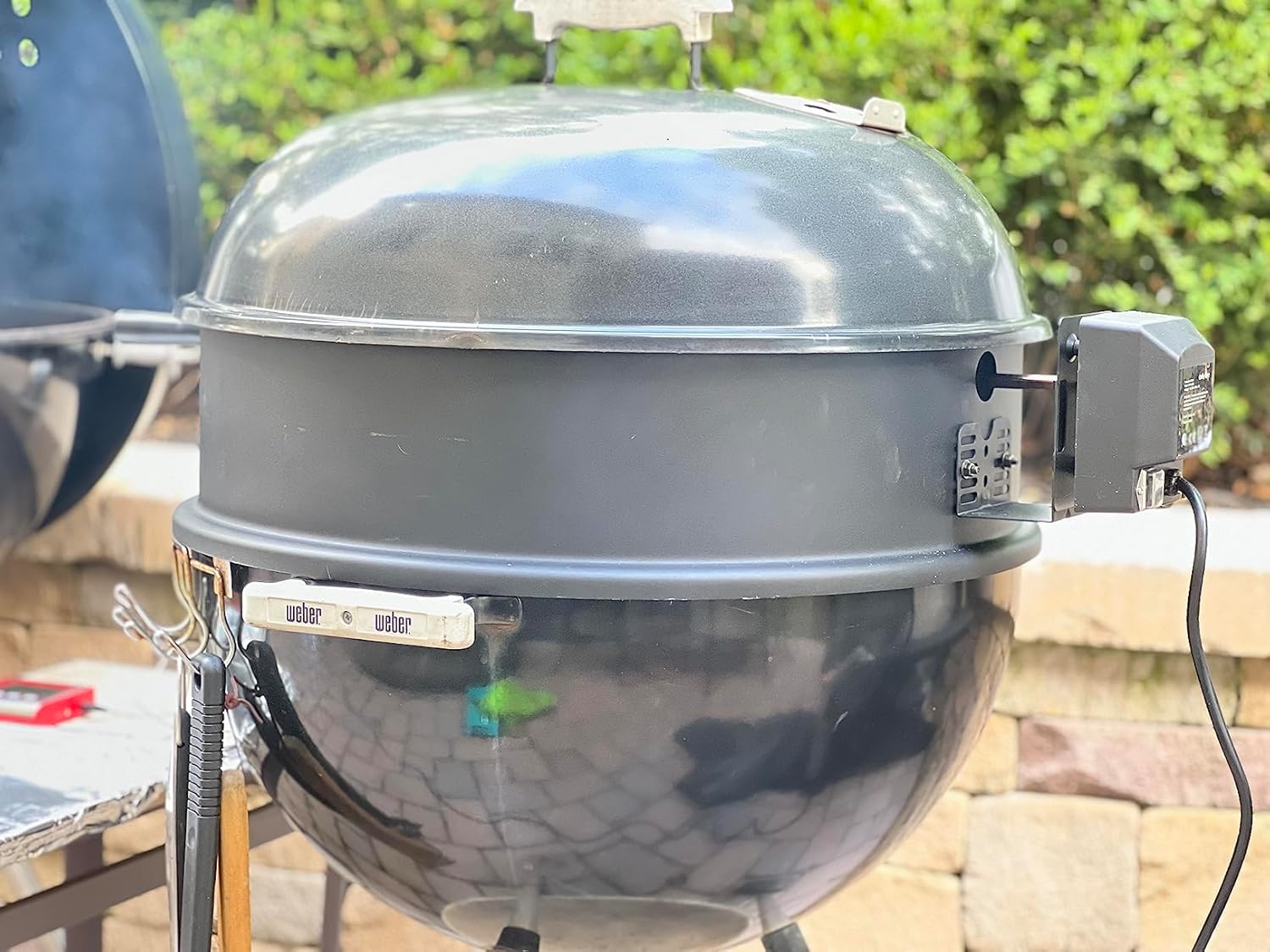

Figure 4: The onlyfire rotisserie motor correctly mounted on a grill, with the spit rod inserted into the drive socket.

4.3 Power Connection

1. Plug the motor's 3-prong power cord into a properly grounded 110V electrical outlet.
2. Ensure the power cord is routed safely away from hot surfaces of the grill.

5. Operating Instructions

1. After securely mounting the motor and attaching the spit rod with your food, ensure the grill lid is closed (if applicable) to maintain cooking temperature.
2. Flip the waterproof on/off switch located on the motor to the 'On' position. The motor will begin to rotate the spit rod.
3. Monitor your food's cooking progress and internal temperature as needed.
4. Once cooking is complete, flip the on/off switch to the 'Off' position.
5. Carefully remove the spit rod from the motor and grill, using heat-resistant gloves.

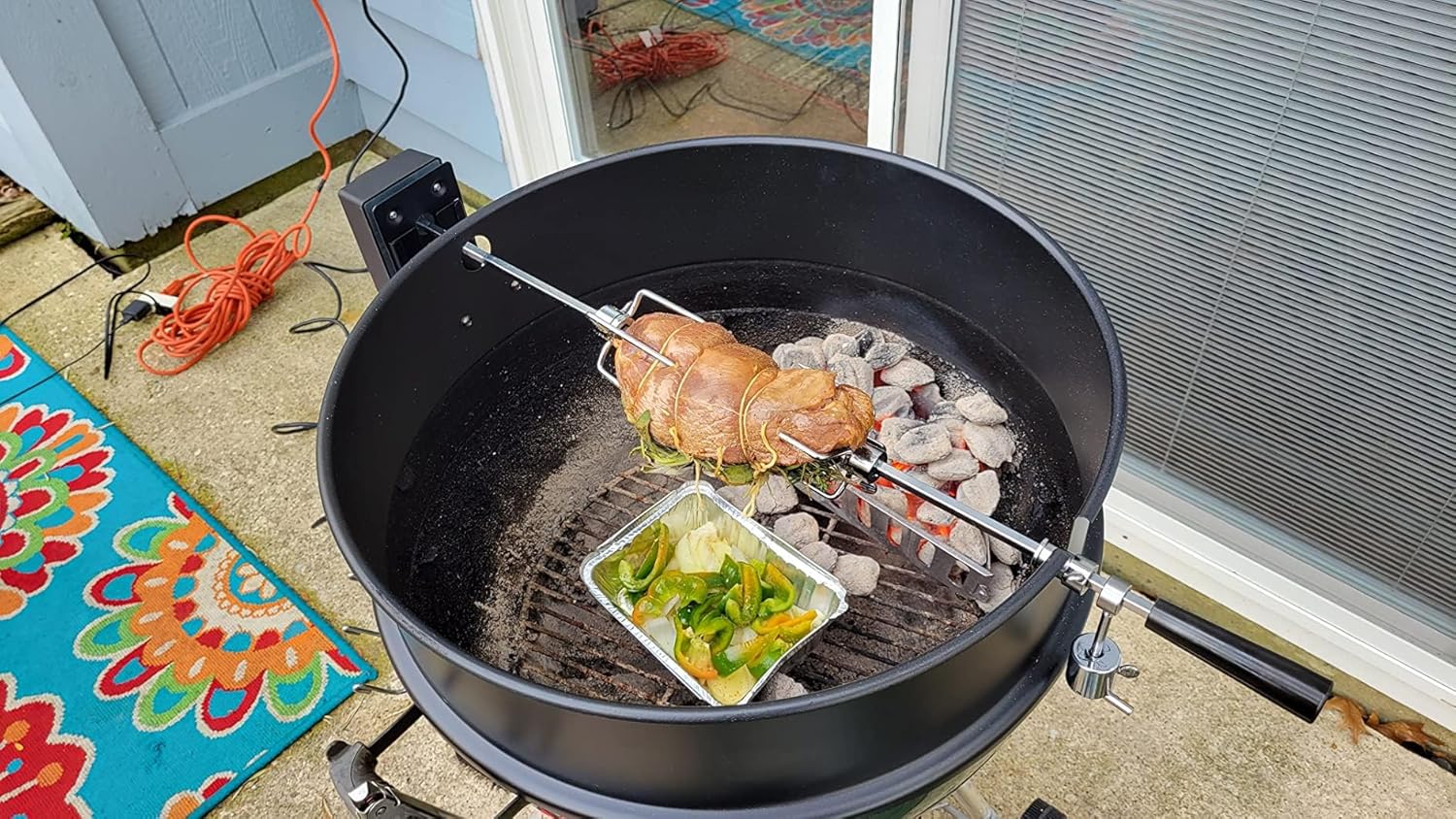

Figure 5: The rotisserie motor actively rotating a spit rod with food on a grill, demonstrating typical operation.

6. Maintenance & Care

• Cleaning: After each use, ensure the motor is unplugged and cooled. Wipe the exterior of the motor with a damp cloth. Do not immerse the motor in water.
• Storage: Store the motor in a dry, protected area when not in use. Avoid extreme temperatures.
• Inspection: Periodically inspect the power cord for any signs of damage. If damaged, discontinue use and replace the motor.

7. Troubleshooting

• Motor Not Turning:
  • Check if the motor is properly plugged into a grounded outlet.
  • Ensure the on/off switch is in the 'On' position.
  • Verify that the spit rod is not overloaded or jammed.
• Inconsistent Rotation:
  • Check for uneven weight distribution on the spit rod. Rebalance the food if necessary.
  • Ensure the spit rod is correctly seated in the motor's drive socket and the grill's support bracket.

8. Specifications

9. Warranty & Support

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official onlyfire website. Keep your purchase receipt for warranty claims.
