uxcell 49TYZ Synchronous Motor Instruction Manual

1. Product Overview

The uxcell 49TYZ Synchronous Motor is an electrical component designed for various applications requiring a consistent, low-speed rotational movement. This motor operates on AC 30V and features a speed of 4/5 RPM with low operational noise.

Intended Use: This motor is suitable for integration into appliances such as fans, warm air blowers, electric heaters, burn ovens, stage lighting equipment, and microwave ovens, among other electrical devices requiring a synchronous motor with specified characteristics.

Figure 1: Top view of the uxcell 49TYZ Synchronous Motor, highlighting the output shaft and mounting points.

2. Safety Information

Please read and understand all safety instructions before installing or operating this product. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Electrical Hazard: This product operates with electricity. Ensure power is disconnected before installation, maintenance, or troubleshooting.
• Professional Installation Recommended: Installation of electrical components should be performed by qualified personnel to prevent electrical hazards and ensure proper function.
• Voltage Compatibility: Ensure the power supply voltage matches the motor's specified voltage (AC 30V).
• Proper Wiring: Connect the motor terminals correctly to avoid short circuits or damage.
• Avoid Moisture: Do not expose the motor to water or excessive moisture.
• Ventilation: Ensure adequate ventilation around the motor during operation to prevent overheating.

3. Package Contents

• 1 x uxcell 49TYZ Synchronous Motor

4. Specifications

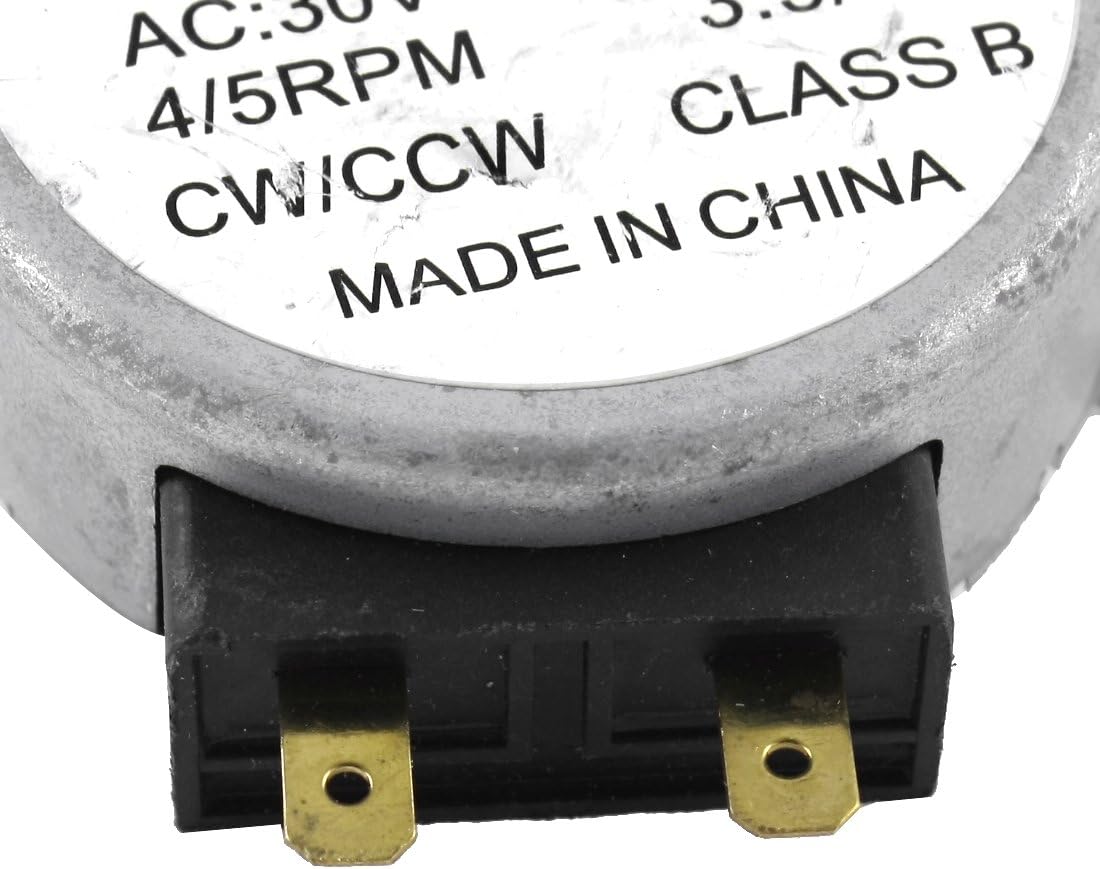

Figure 2: Close-up of the motor's electrical terminals and identification label.

5. Installation

Installation of the synchronous motor requires careful attention to electrical connections and mechanical mounting. It is strongly recommended that installation be performed by a qualified technician.

1. Disconnect Power: Before beginning any installation, ensure that the power supply to the appliance or system is completely disconnected at the main circuit breaker.
2. Identify Mounting Location: Determine the correct mounting position within the appliance. The motor features mounting holes for secure attachment.
3. Secure Motor: Mount the motor securely using appropriate fasteners through the 4mm diameter mounting holes. Ensure the motor is stable and does not vibrate excessively.
4. Connect Electrical Terminals: The motor has two terminals. Connect these terminals to the appropriate AC 30V power source within the appliance. Observe proper polarity if specified by the appliance manufacturer, although synchronous AC motors typically do not have strict polarity requirements for basic operation.
5. Verify Connections: Double-check all electrical connections to ensure they are secure and properly insulated.
6. Mechanical Coupling: If the motor shaft needs to drive another component, ensure the coupling is correctly aligned and secured to the 7x11mm shaft.
7. Restore Power: Once installation is complete and verified, restore power to the appliance.

Note: Refer to the specific appliance's service manual for detailed installation instructions relevant to that particular device.

6. Operation

The uxcell 49TYZ Synchronous Motor is designed for continuous operation within its specified voltage and power ratings.

• Power On: When the motor receives AC 30V power, it will begin to rotate at its rated speed of 4/5 RPM.
• Low Noise: The motor is designed for low-noise operation, making it suitable for various household and industrial applications where quiet performance is desired.
• Synchronous Speed: The motor maintains a constant speed regardless of load variations within its operational limits, making it ideal for applications requiring precise timing or consistent rotation.

7. Maintenance

The uxcell 49TYZ Synchronous Motor is generally maintenance-free. However, periodic inspection can help ensure its longevity and reliable operation.

• Keep Clean: Ensure the motor and its surroundings are free from dust, debris, and obstructions that could impede ventilation or rotation.
• Inspect Connections: Periodically check electrical connections for tightness and signs of corrosion or damage.
• Listen for Unusual Noises: Any new or unusual noises during operation may indicate a problem and should be investigated.
• Avoid Overloading: Do not subject the motor to loads exceeding its specified power rating (3.5/4W).

8. Troubleshooting

If the motor is not functioning as expected, consider the following common issues:

• Motor Not Turning:
  • Check if the power supply is connected and active (AC 30V).
  • Verify that electrical connections are secure and correct.
  • Ensure there are no mechanical obstructions preventing the shaft from rotating.
  • Confirm the motor is not overloaded beyond its capacity.
• Unusual Noise or Vibration:
  • Check for loose mounting screws.
  • Inspect for any foreign objects interfering with the motor's rotation.
  • Ensure the mechanical coupling (if any) is properly aligned and balanced.
• Overheating:
  • Ensure adequate ventilation around the motor.
  • Verify the motor is not continuously operating under excessive load.

If troubleshooting steps do not resolve the issue, consult a qualified technician or contact uxcell customer support.

9. Warranty and Support

For specific warranty information, please refer to the documentation provided at the time of purchase or contact the seller directly. uxcell products are typically covered by a standard manufacturer's warranty against defects in materials and workmanship.

For technical support or inquiries, please visit the official uxcell store or contact their customer service department.
