1. Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Goodman 3 Ton 14 SEER Package Heat Pump System, model GPH1436H41. This system is designed to provide reliable heating and cooling for your residential or commercial space. Please read this manual thoroughly before attempting any installation, operation, or maintenance procedures.
2. Safety Information
Important: Installation and service of this equipment must be performed by qualified, experienced technicians. Improper installation, adjustment, alteration, service, or maintenance can cause property damage, personal injury, or death. Read all instructions before installing or operating this unit.
- Electrical Hazard: Disconnect all power to the unit before performing any service or maintenance. Failure to do so can result in severe electrical shock or death.
- Moving Parts: Keep hands and clothing clear of moving parts, such as fans, during operation and maintenance.
- Refrigerant: This unit contains R-410A refrigerant. Only qualified personnel should handle refrigerants.
- Sharp Edges: Exercise caution when working with sheet metal parts, as they may have sharp edges.
3. Product Overview
The Goodman GPH1436H41 is a 3-ton, 14 SEER package heat pump system. This self-contained unit combines all components for heating and cooling into a single cabinet, designed for outdoor installation. It provides efficient year-round comfort by extracting heat from the air in heating mode and expelling heat in cooling mode.
Figure 1: Exterior view of the Goodman GPH1436H41 Package Heat Pump System. This image shows the complete outdoor unit with its protective casing and top-mounted fan.

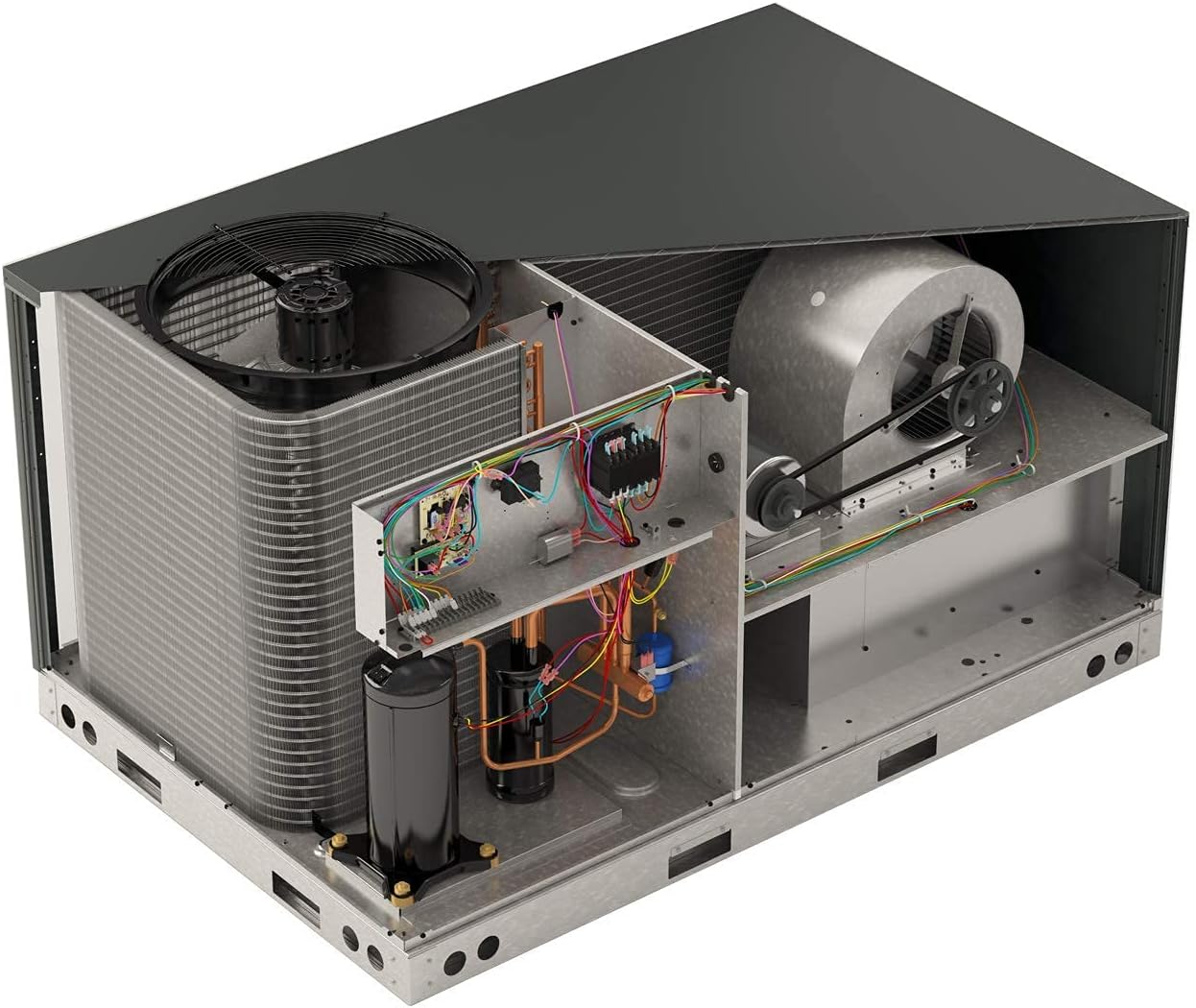

Figure 2: Internal components of the Goodman GPH1436H41 Package Heat Pump System. This image illustrates the compressor, coils, fan, and electrical connections within the unit, highlighting its integrated design.
4. Setup and Installation
The Goodman GPH1436H41 system requires professional installation by a certified HVAC technician. Attempting to install this unit without proper training, tools, and knowledge can lead to serious injury, equipment damage, and voiding of the warranty.
4.1 Site Selection
- The unit must be installed on a level, stable surface capable of supporting its weight.
- Ensure adequate clearance around the unit for proper airflow and future servicing.
- Avoid locations where exhaust air could be recirculated or where noise might be an issue.
4.2 Electrical Connections
All electrical wiring must comply with national and local electrical codes. The unit requires a dedicated power supply. A qualified electrician should perform all electrical connections.
4.3 Ductwork Connection
Properly sized and sealed ductwork is crucial for efficient operation. The supply and return air ducts must be securely connected to the unit's openings.
5. Operating Instructions
Once installed, your Goodman heat pump system is controlled by a compatible thermostat. Familiarize yourself with your thermostat's specific instructions for optimal use.
5.1 Basic Thermostat Operation
- Mode Selection: Set your thermostat to 'HEAT' for heating, 'COOL' for cooling, or 'AUTO' to allow the system to switch between modes as needed.
- Fan Settings: Choose 'AUTO' for the fan to run only when heating or cooling, or 'ON' for continuous fan operation.
- Temperature Setting: Adjust the desired temperature using the up/down arrows or dial on your thermostat.
5.2 Seasonal Operation Tips
- Avoid frequent, drastic temperature changes on the thermostat, as this can reduce efficiency.
- During heating season, if the outdoor temperature drops significantly, the system may engage auxiliary heat. This is normal.
- Ensure all registers and return air grilles are unobstructed for proper airflow.
6. Maintenance
Regular maintenance is crucial for the longevity and efficient operation of your Goodman heat pump system. Always disconnect power to the unit before performing any maintenance.
6.1 Air Filter Replacement/Cleaning
- Check the air filter monthly, especially during peak operating seasons.
- Replace disposable filters or clean reusable filters as needed. A dirty filter restricts airflow and reduces efficiency.
6.2 Coil Cleaning
- Periodically inspect the outdoor coil for dirt and debris.
- Gently clean the coil with a soft brush or hose. Avoid bending the fins.
- For thorough cleaning, it is recommended to contact a professional HVAC technician.
6.3 Annual Professional Inspection
Schedule an annual inspection and tune-up by a qualified HVAC technician. This ensures the system operates at peak efficiency, identifies potential issues early, and maintains warranty validity.
7. Troubleshooting
Before calling for service, review the following common issues and simple checks.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit not turning on | No power, thermostat off, tripped breaker | Check circuit breaker, ensure thermostat is set to 'HEAT' or 'COOL' and desired temperature. |
| Insufficient heating/cooling | Dirty air filter, blocked vents, incorrect thermostat setting | Replace/clean air filter, ensure vents are open, verify thermostat settings. |
| Unusual noises | Loose panel, debris in fan, motor issue | Inspect for loose panels. If noise persists or is severe, contact a qualified technician. |
| Unit constantly runs | Thermostat set too low/high, undersized unit, refrigerant leak | Adjust thermostat. If problem persists, contact a qualified technician for diagnosis. |
If these steps do not resolve the issue, or if you suspect a more serious problem, contact a qualified HVAC service technician.
8. Specifications
Key specifications for the Goodman GPH1436H41 Package Heat Pump System:
- Model Name: GPH1436H41
- Capacity: 3 Tons
- Seasonal Energy Efficiency Ratio (SEER): 14
- Refrigerant: R-410A
- Power Source: Corded Electric
- Product Dimensions: 66.25"D x 34"W x 35"H
- Special Feature: Heating And Cooling Function
9. Warranty Information
The Goodman GPH1436H41 Package Heat Pump System typically comes with a 10-Year Limited Warranty on parts, provided the unit is registered within a specified timeframe after installation. Warranty terms and conditions may vary.
Figure 3: Representation of the 10-Year Limited Warranty. This image signifies the warranty coverage typically offered for Goodman HVAC products.
It is essential to register your product with Goodman to ensure full warranty coverage. Keep your proof of purchase and installation records. For complete details regarding your specific warranty, please refer to the official warranty document provided with your unit or visit the Goodman website.
10. Support and Contact
For technical assistance, service, or warranty claims, please contact your installing HVAC contractor or a certified Goodman dealer. They possess the expertise and tools necessary to diagnose and resolve issues with your system.
You can also visit the official Goodman website for additional resources, product information, and to locate a dealer near you.
