1. Introduction
The BLITZU Gator 450 Bike Lights Set provides essential illumination and visibility for cyclists. This set includes a USB-C rechargeable LED headlight and a rear taillight, designed to enhance safety during day and night riding. The lights are suitable for various cycling activities, including commuting, road biking, and mountain biking.
Image 1.1: The BLITZU Gator 450 USB-C Rechargeable Bike Lights Set, featuring the headlight and taillight, designed for visibility day and night.
2. What's in the Box
Your BLITZU Gator 450 Bike Lights Set package should contain the following items:
- BLITZU Gator 450 LED Headlight
- BLITZU Rear Taillight
- USB-C Charging Cables (2)
- Handlebar Mount for Headlight
- Seatpost/Frame Mount for Taillight
- Instruction Manual
- Warranty Card

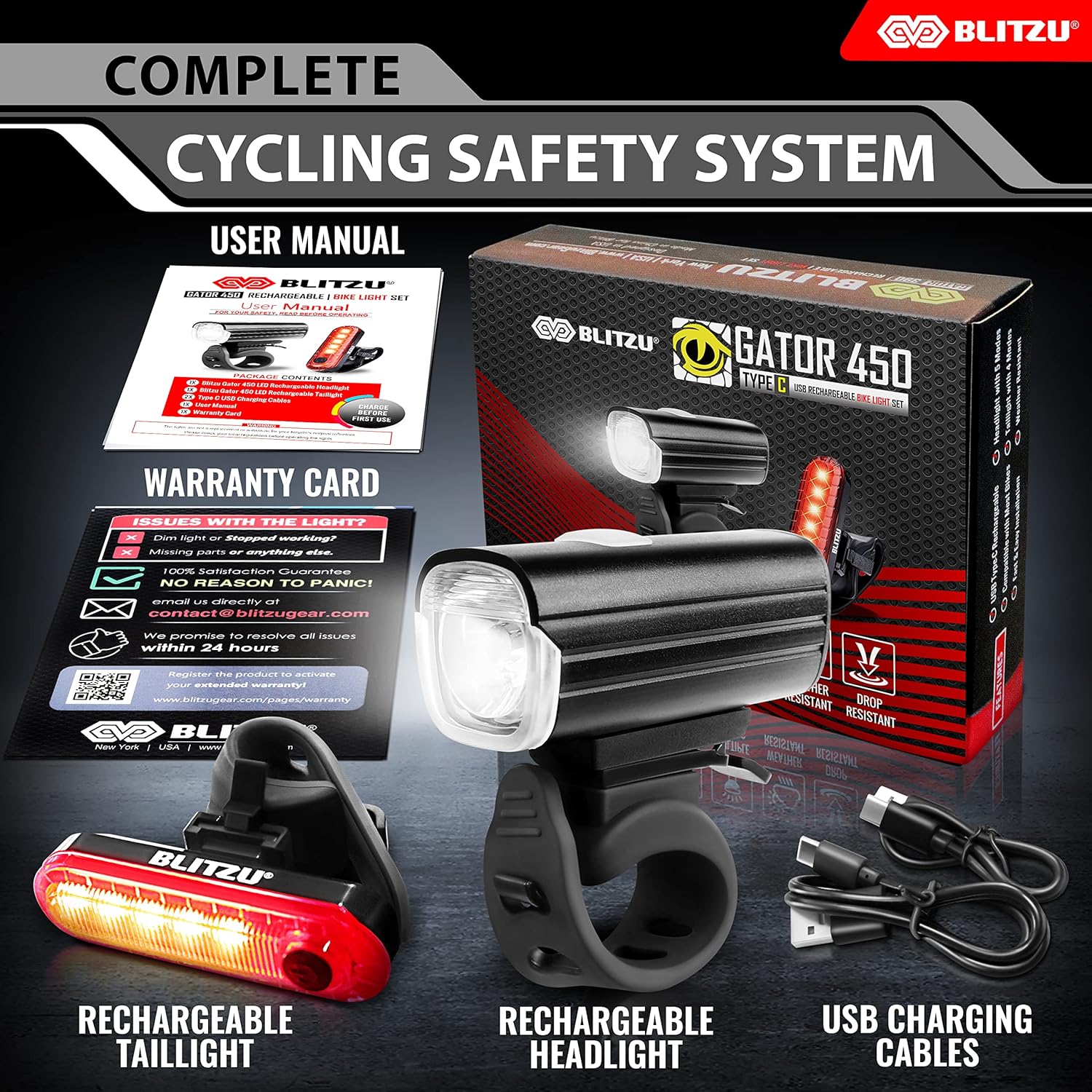

Image 2.1: All components included in the BLITZU Gator 450 Bike Lights Set packaging.
3. Setup and Installation
3.1. Charging the Lights
Before first use, fully charge both the headlight and taillight using the provided USB-C charging cables. The headlight features fast charging technology, typically fully charging in less than 1 hour.
Image 3.1: The BLITZU bike lights connected via USB-C for charging, indicating fast charging capability.
3.2. Mounting the Headlight
- Secure the rubber strap mount onto your bicycle's handlebar. Ensure it is tight and stable.
- Align the headlight's base with the mounting bracket.
- Slide the headlight onto the bracket until it clicks securely into place. The light can be rotated 360 degrees for optimal positioning.
Image 3.2: A user demonstrating the easy installation of the BLITZU Gator 450 headlight onto a bike handlebar.
Video 3.1: Detailed instructions on how to mount the BLITZU Gator headlight securely on your bicycle's handlebar.
3.3. Mounting the Taillight
- Wrap the rubber strap mount around your bicycle's seatpost or frame.
- Hook the strap securely to ensure the taillight is firmly attached.
Image 3.3: Visual guide showing the simple three-step process of charging, mounting, and riding with BLITZU bike lights.
4. Operating Instructions
4.1. Headlight Operation
The headlight features a single power button for easy control. Press the button to cycle through 5 different lighting modes: High, Medium, Low, Strobe, and Flash. Press and hold to turn off.
Image 4.1: The BLITZU Gator 450 Headlight showcasing its 5 distinct lighting modes and IPX5 water-resistant rating.
Video 4.1: A demonstration of the BLITZU bike headlights' brightness and various lighting modes.
4.2. Taillight Operation
The taillight also operates with a single power button. Press the button to cycle through 4 different lighting modes: Steady, Disco Flash, Strobe, and Fast Flash. Press and hold to turn off.
Image 4.2: The BLITZU Taillight displaying its 4 lighting modes and IPX5 water-resistant rating for enhanced safety.
5. Maintenance
5.1. Charging
To maintain optimal battery life, charge the lights regularly. The headlight offers up to 7 hours of illumination, and the taillight provides up to 10 hours of battery life on a single charge. Use the provided USB-C cables for charging.
5.2. Water Resistance
Both the headlight and taillight are designed with an IPX5 water-resistant rating, making them suitable for use in various weather conditions, including rain. Ensure the charging port covers are securely closed to prevent water ingress.
Video 5.1: A demonstration of the BLITZU Gator Bike Headlight undergoing a waterproof test, confirming its IPX5 rating.
5.3. Cleaning
Wipe the lights with a soft, damp cloth to remove dirt and debris. Avoid using abrasive cleaners or solvents that could damage the casing or lens.
6. Troubleshooting
- Light not turning on: Ensure the battery is charged. Connect to a power source using the USB-C cable.
- Light not holding a charge: Verify the charging cable and power adapter are functioning correctly. Ensure the charging port is clean and free of debris.
- Light flickering or dim: This may indicate a low battery. Recharge the light.
- Mount not secure: Re-adjust the rubber strap mounts to ensure a tight fit on your handlebar or seatpost.
7. Specifications
| Brand | BLITZU |
| Model Name | Gator 450 |
| Headlight Brightness | 600 Lumens (Max Output) |
| Taillight Brightness | 120 Lumens |
| Power Source | Battery Powered (USB-C Rechargeable) |
| Water Resistance Level | IPX5 (Water Resistant) |
| Material | Aluminum |
| Item Weight | 2.4 ounces |
| Mounting Type | Handlebar Mount |
| Number of Headlight Settings | 5 |
| Number of Taillight Settings | 4 |
8. Warranty and Support
The BLITZU Gator 450 Bike Lights Set comes with a 1 Year Warranty. For any issues or support, please refer to the contact information provided on your warranty card or visit the official BLITZU website.
