Everpure EV985850
Pentair Everpure EF-1500 Quick-Change Filter Cartridge User Manual
Model: EV985850
Brand: Everpure
1. Product Overview
The Pentair Everpure EF-1500 Quick-Change Filter Cartridge is designed to provide filtered water for residential use. This cartridge is part of the Everpure EF-1500 Full Flow Drinking Water System, which delivers filtered water through existing household taps without requiring a dedicated faucet. It is engineered to reduce lead and other contaminants, ensuring clean and great-tasting water.
The compact size of the EF-1500 system makes it suitable for installations where space is limited.
2. Key Product Features
- NSF Certified: Certified to NSF/ANSI Standard 53 for the reduction of cysts such as Cryptosporidium and Giardia by mechanical means.
- Lead Reduction: Specifically designed to reduce lead content in drinking water.
- High Capacity: Provides 1,500 gallons (5,600 L) of filtered water.
- Fine Filtration: Filters particles as small as 0.5 micron.
- Quick-Change Design: Facilitates easy and sanitary cartridge replacement.
- Full Flow System: Delivers filtered water through existing kitchen or bathroom faucets.
- Durable Construction: Commercial-grade metal canister protects the filter system from splitting or bursting.
3. Setup and Installation
The EF-1500 filter cartridge is designed for use with the Everpure EF-1500 Full Flow Drinking Water System. Installation typically involves connecting the system to your cold water line under the sink. The quick-change design allows for easy cartridge replacement without the need for special tools or turning off the water supply to the entire house.
General Installation Steps (for the system, not just the cartridge):
- Turn off the cold water supply to the faucet where the system will be installed.
- Install the filter head assembly in an accessible location under the sink, ensuring adequate clearance for cartridge replacement.
- Connect the water lines to the inlet and outlet ports of the filter head.
- Insert the EF-1500 cartridge into the filter head by aligning the cartridge with the head and twisting until it locks into place.
- Slowly turn on the cold water supply and check for leaks.
- Flush the system by running water through the filtered tap for several minutes (refer to system manual for specific flushing times) to remove any air or carbon fines.
Image: Diagram illustrating the typical under-sink installation of an Everpure EF-Series filter system, including the EF-1500, and showing its compact size relative to other models.
4. Operation
Once installed, the Everpure EF-1500 system operates passively, providing filtered water whenever the connected faucet is used. The filter is designed for cold water use only, with an optimal temperature range of 35-100°F (2-38°C). The controlled flow rate is 2.2 gallons per minute (8.3 Lpm), ensuring efficient water delivery.
The system operates under standard household water pressure, typically between 10-125 psi (0.7-8.6 bar) non-shock.
5. Maintenance
Regular maintenance primarily involves replacing the EF-1500 filter cartridge. The cartridge has a capacity of 1,500 gallons (5,600 L). It is recommended to replace the cartridge when the capacity is reached, or sooner if you notice a significant reduction in flow rate or a decline in water quality (e.g., taste or odor). For most households, this typically means replacement every 6 to 12 months, but actual frequency depends on water usage and local water conditions.
Cartridge Replacement Steps:
- Locate the EF-1500 filter cartridge under your sink.
- Twist the old cartridge counter-clockwise to unlock it from the filter head. The built-in shut-off valve will automatically stop water flow.
- Pull the old cartridge straight down to remove it.
- Insert the new EF-1500 cartridge into the filter head, aligning the top of the cartridge with the head.
- Twist the new cartridge clockwise until it locks securely into place.
- Run water through the filtered tap for several minutes to flush the new cartridge and remove any air.
Image: The Pentair Everpure EF-1500 Quick-Change Filter Cartridge, highlighting its design for easy replacement.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Reduced Water Flow | Clogged filter cartridge; air in the system. | Replace the filter cartridge; flush the system to remove air. |
| Unpleasant Taste or Odor | Filter cartridge has reached its capacity or is expired. | Replace the filter cartridge. |
| Water Leaks | Improperly installed cartridge; loose connections. | Ensure cartridge is fully locked; check all plumbing connections for tightness. |
| No Water Flow | Water supply turned off; severely clogged filter. | Check water supply valve; replace filter cartridge. |
7. Specifications
| Attribute | Detail |
|---|---|
| Model Number | EV985850 |
| Manufacturer | Everpure |
| Product Dimensions | 38.1 x 8.13 x 8.13 cm (15 x 3.2 x 3.2 inches) |
| Item Weight | 590 g (1.3 lbs) |
| Capacity | 1,500 gallons (5,600 L) |
| Flow Rate | Controlled at 2.2 gpm (8.3 Lpm) |
| Temperature Range | 35-100°F (2-38°C) cold water use only |
| Pressure Range | 10-125 psi (0.7-8.6 bar) non-shock |
| Micron Rating | 0.5 micron |
| Material | Polycarbonate (PC) |
| Certifications | NSF/ANSI Standard 53 (for cyst reduction), ANSI |
| Country of Origin | USA |
| UPC | 054568593313 |

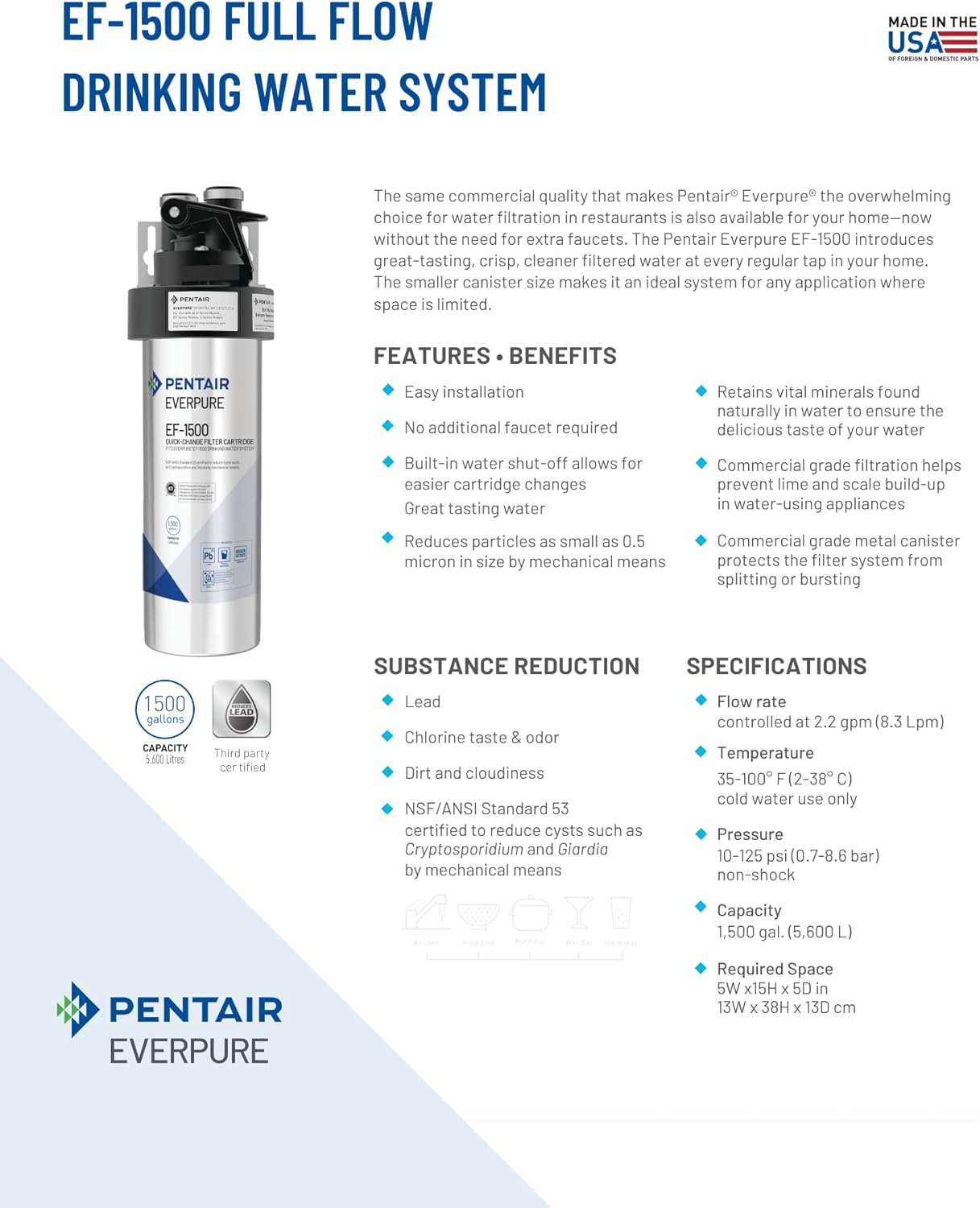

Image: A detailed overview of the EF-1500 system, including its features, benefits, and technical specifications.
8. Warranty Information
The Pentair Everpure EF-1500 Quick-Change Filter Cartridge comes with a 1 Year Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims.
For specific terms and conditions of the warranty, please refer to the official warranty documentation provided with your product or contact Everpure customer support.
9. Customer Support
If you have any questions regarding the installation, operation, maintenance, or troubleshooting of your Pentair Everpure EF-1500 filter cartridge or system, please contact Everpure customer support.
For the most up-to-date contact information and additional resources, please visit the official Everpure website. You may also find helpful information and FAQs on the product's support page.
Image: An informational flyer for the Everpure EF-Series, emphasizing the benefits of filtered water throughout the home.
