1. Introduction
This manual provides instructions for the setup, operation, maintenance, and troubleshooting of your new Infinity Instruments 13.5 inch Shatter Resistant Round Silent Wall Clock. This clock features a silent sweep movement, ensuring no ticking sound, and an easy-to-read dial with bold numbers. It is designed for indoor use in various settings such as offices, classrooms, and homes.

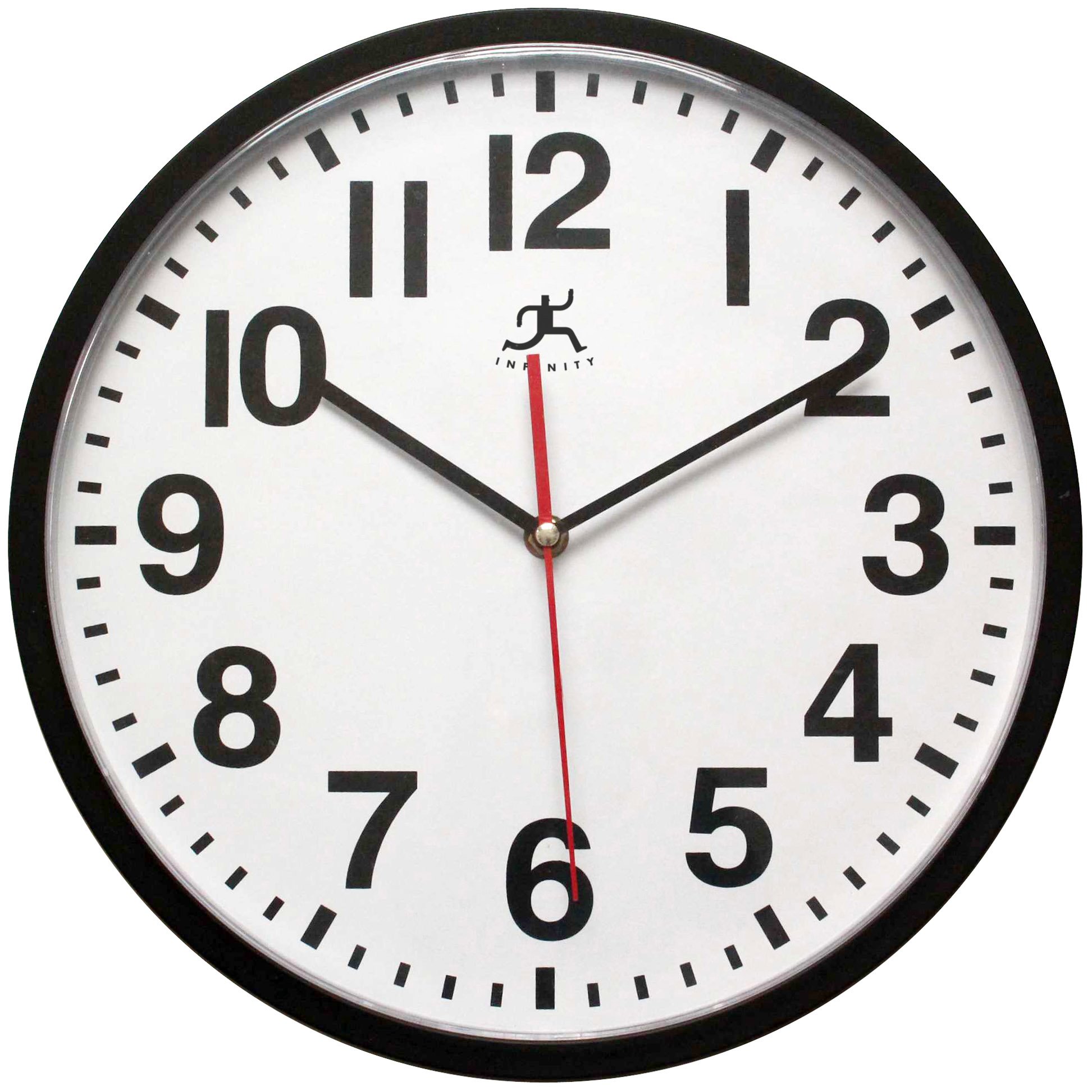

Figure 1: Front view of the Infinity Instruments 13.5 inch round wall clock.
2. Setup
2.1 Battery Installation
- Locate the battery compartment on the back of the clock.
- Insert one (1) AA battery (not included) into the compartment, ensuring the positive (+) and negative (-) terminals align correctly with the indicators.
- Close the battery compartment cover securely.
2.2 Setting the Time
- Turn the time setting knob, located on the back of the clock, in either direction until the hands display the correct time.
- Avoid forcing the hands directly. Always use the setting knob.
2.3 Mounting the Clock
- Choose a suitable location on a wall for mounting. Ensure the wall material can support the clock's weight (approximately 1.1 pounds).
- Use an appropriate wall anchor and screw (not included) for your wall type.
- Hang the clock using the integrated keyhole hanger on the back.
Figure 2: Side view of the clock, illustrating its dimensions and the typical location for battery and mounting features.
3. Operating Instructions
Once the battery is installed and the time is set, your Infinity Instruments wall clock will begin operating automatically. The silent sweep movement ensures that the second hand moves continuously without producing any ticking sounds, making it ideal for quiet environments.
4. Maintenance
4.1 Cleaning
- To clean the clock, gently wipe the surface with a soft, dry cloth.
- Do not use abrasive cleaners, solvents, or chemical sprays, as these may damage the finish or the shatter-resistant lens.
4.2 Battery Replacement
Replace the AA battery annually or when the clock begins to lose time or stop functioning. Follow the battery installation steps outlined in Section 2.1.
5. Troubleshooting
- Clock Not Running: Ensure the battery is inserted correctly with the proper polarity. Replace with a fresh AA battery if necessary.
- Clock Losing Time: This typically indicates a low battery. Replace the AA battery with a new one.
- Hands Getting Stuck: Check if the hands are bent or obstructed. Gently adjust them if possible, ensuring they do not touch each other or the clock face. If the issue persists after battery replacement, the internal mechanism may require professional inspection.
6. Specifications
| Feature | Detail |
|---|---|
| Brand | Infinity Instruments |
| Model Number | 15018BK-4017 |
| Product Dimensions | 13.5"W x 13.5"H |
| Item Weight | 1.1 Pounds |
| Color | Black |
| Display Type | Analog |
| Special Feature | Silent Clock |
| Power Source | Battery Powered |
| Number of Batteries | 1 AA batteries required (not included) |
| Room Type | Office |
| Indoor/Outdoor Usage | Indoor |
| Material | Resin |
| Mounting Type | Wall Mount |
| Operation Mode | Mechanical |
| Dial Color | White |
7. Warranty
This product comes with a 2-year limited warranty. For specific details regarding warranty coverage and claims, please refer to the warranty documentation included with your purchase or contact customer support.
8. Support
If you encounter any issues or have questions not covered in this manual, please contact Infinity Instruments customer support. Contact information can typically be found on the product packaging or the official Infinity Instruments website.
