Introduction
The ZEISS Batis 25mm f/2.0 lens is a versatile wide-angle lens designed for Sony E-mount mirrorless cameras. It offers outstanding image quality, robust construction, and innovative features for professional photographers. This manual provides essential information for setting up, operating, and maintaining your lens.
Product Overview
The ZEISS Batis 25mm f/2.0 lens is engineered to meet the highest requirements of mirrorless full-frame systems. Its compact design does not compromise on image quality, delivering impressive detail from foreground to horizon.
- Versatile Full-Frame Lens: Designed for Sony E-mount mirrorless cameras, fulfilling high requirements with a compact design and outstanding image quality.
- Excellent Resolution and High Contrast: Incorporates specially developed technologies to reduce stray light, resulting in richly saturated and vivid colors.
- Robust and Weatherproof Metal Construction: Built to resist dust and spray water, making it suitable for critical outdoor conditions and intensive use.
- Innovative OLED Display: Features an OLED display on the lens barrel for accurate reading of focus distance and depth of field, ensuring excellent readability even in poor light.
- Smooth and Reliable Autofocus: The focusing system ensures robust and smooth autofocus with optimal imaging performance.

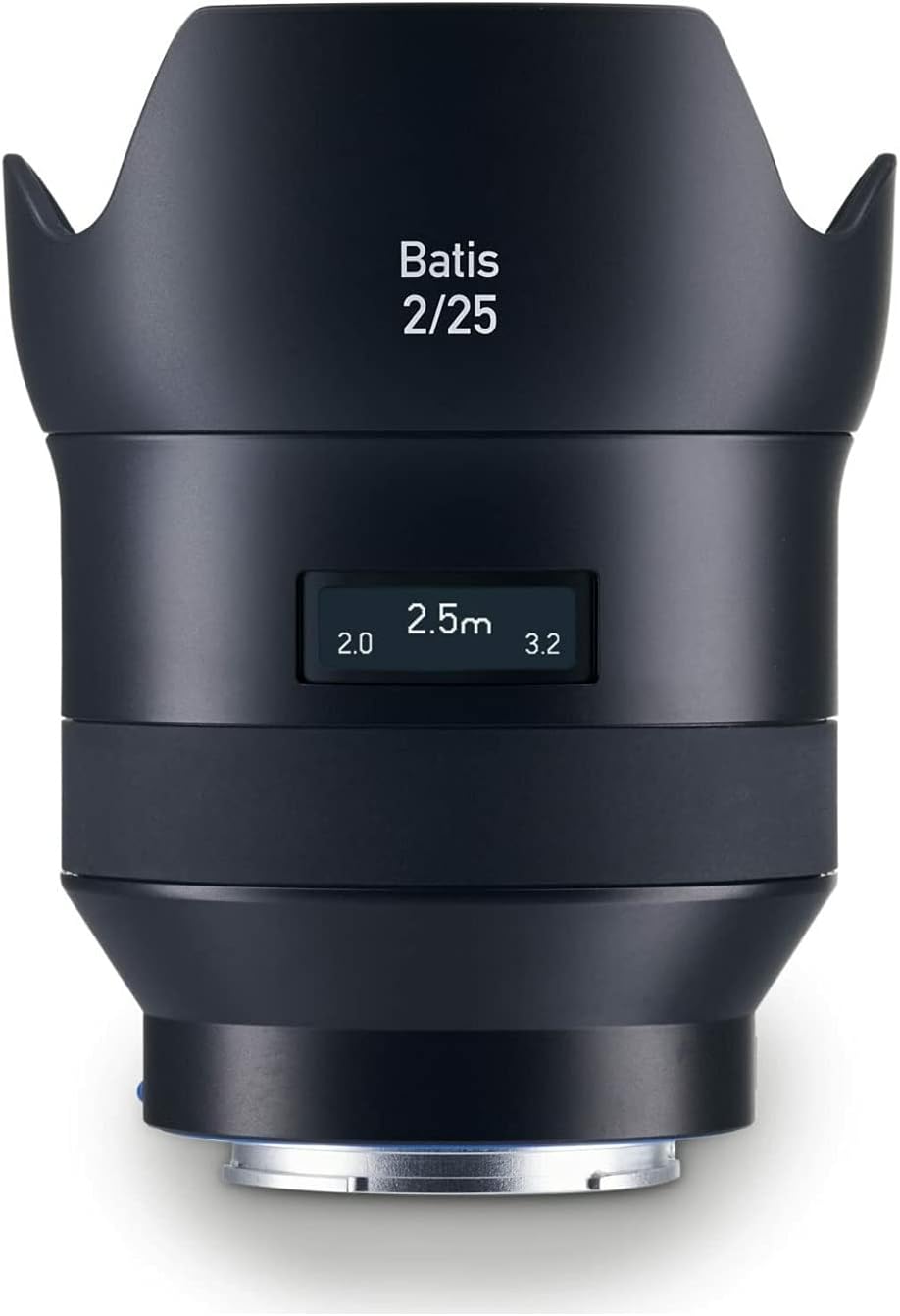

Image: The ZEISS Batis 25mm f/2.0 lens with its lens hood, highlighting the innovative OLED display showing focus distance.
What's in the Box
Upon unboxing your ZEISS Batis 25mm f/2.0 lens, you should find the following items:
- ZEISS Batis 2/25 Wide-angle Camera Lens for Sony E-mount Mirrorless Cameras
- Lens Shade (Lens Hood)
Specifications
| Feature | Detail |
|---|---|
| Product Dimensions | 3.1 x 3.2 x 3.2 inches |
| Item Weight | 11.8 ounces |
| Item Model Number | 000000-2103-750 |
| Brand | ZEISS |
| Focal Length | 25mm |
| Lens Type | Wide Angle |
| Compatible Mountings | Sony E |
| Manufacturer | ZEISS |
| First Available Date | June 18, 2015 |
Setup
- Attaching the Lens:
- Align the white index mark on the lens barrel with the corresponding white index mark on your Sony E-mount camera body.
- Rotate the lens clockwise until it clicks into place. Ensure it is securely locked.
- Remove the front and rear lens caps.
- Attaching the Lens Hood:
- Align the red dot on the lens hood with the red dot on the front of the lens.
- Twist the lens hood clockwise until it locks into position. The lens hood helps to block stray light and protect the front element.
Image: The ZEISS Batis 25mm f/2.0 lens without its hood, revealing the front element and mounting points.
Operating the Lens
- Autofocus (AF) / Manual Focus (MF) Switch:
Locate the AF/MF switch on the side of the lens barrel. Slide the switch to select between autofocus and manual focus modes. In AF mode, the camera will automatically focus on your subject. In MF mode, you can manually adjust the focus ring.
- Aperture Control:
The lens features an aperture ring for direct control over the aperture setting. Rotate the ring to select your desired f-stop (from f/2.0 to f/22). For video recording, the aperture ring can be de-clicked for smooth, silent transitions.
- OLED Display:
The integrated OLED display provides real-time information on the focus distance and depth of field. This feature is particularly useful in challenging lighting conditions, offering clear readability.
Image: Side view of the ZEISS Batis 25mm f/2.0 lens, highlighting the AF/MF switch and aperture ring for operational control.
Official Product Videos
ZEISS Batis 25mm f/2 for Sony Unboxing and Sample Photos
Video Description: An unboxing and sample photo review of the ZEISS Batis 25mm f/2 lens for Sony E-mount cameras, demonstrating its features and image capabilities.
Maintenance
- Cleaning the Lens: Use a soft, lint-free cloth and a specialized lens cleaning solution to gently wipe the front and rear elements. Avoid harsh chemicals or abrasive materials.
- Dust and Moisture Protection: The lens features a weatherproof construction. However, it is recommended to avoid prolonged exposure to heavy rain or dust. Always use lens caps when not in use.
- Storage: Store the lens in a dry, cool place away from direct sunlight and extreme temperatures. Use a protective pouch or case to prevent scratches and impacts.
Image: The ZEISS Batis 25mm f/2.0 lens, showcasing its weather-sealed design with water droplets on its surface, ideal for outdoor use.
Troubleshooting
- Autofocus Issues: Ensure the AF/MF switch is set to AF. Check camera settings for focus mode and area. Clean lens contacts on both the lens and camera body.
- Image Quality Concerns: Verify lens elements are clean and free from smudges or dust. Ensure proper aperture and shutter speed settings for the lighting conditions.
- Lens Not Mounting: Confirm correct alignment of index marks and ensure no obstructions are present on the mount. Apply gentle pressure and rotate until it clicks.
Warranty and Support
The ZEISS Batis 25mm f/2.0 lens comes with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your product or visit the official ZEISS website.
For technical support, service, or further inquiries, please contact ZEISS customer service through their official channels. Keep your purchase receipt and product serial number handy for faster assistance.
