1. Introduction
This manual provides comprehensive instructions for the installation, use, and maintenance of your Windhager Aluminum Insect Screen Fabric. Designed for durability and effective protection, this fabric helps keep out leaves, pests, and dirt, ensuring a cleaner and more comfortable environment.
Figure 1: Windhager Aluminum Insect Screen Fabric, rolled for storage or transport.
2. Product Features
- Robust Aluminum Fabric: Made from durable aluminum, ensuring resistance and longevity.
- Dual Usability: Specifically designed for use in cellar and roof areas.
- Effective Protection: Shields against leaves, pests, and dirt.
- Weather Resistant: Withstands various weather conditions effectively.
- Fine Mesh Size: Features a mesh size of 1.1 x 1.6 mm for optimal protection.

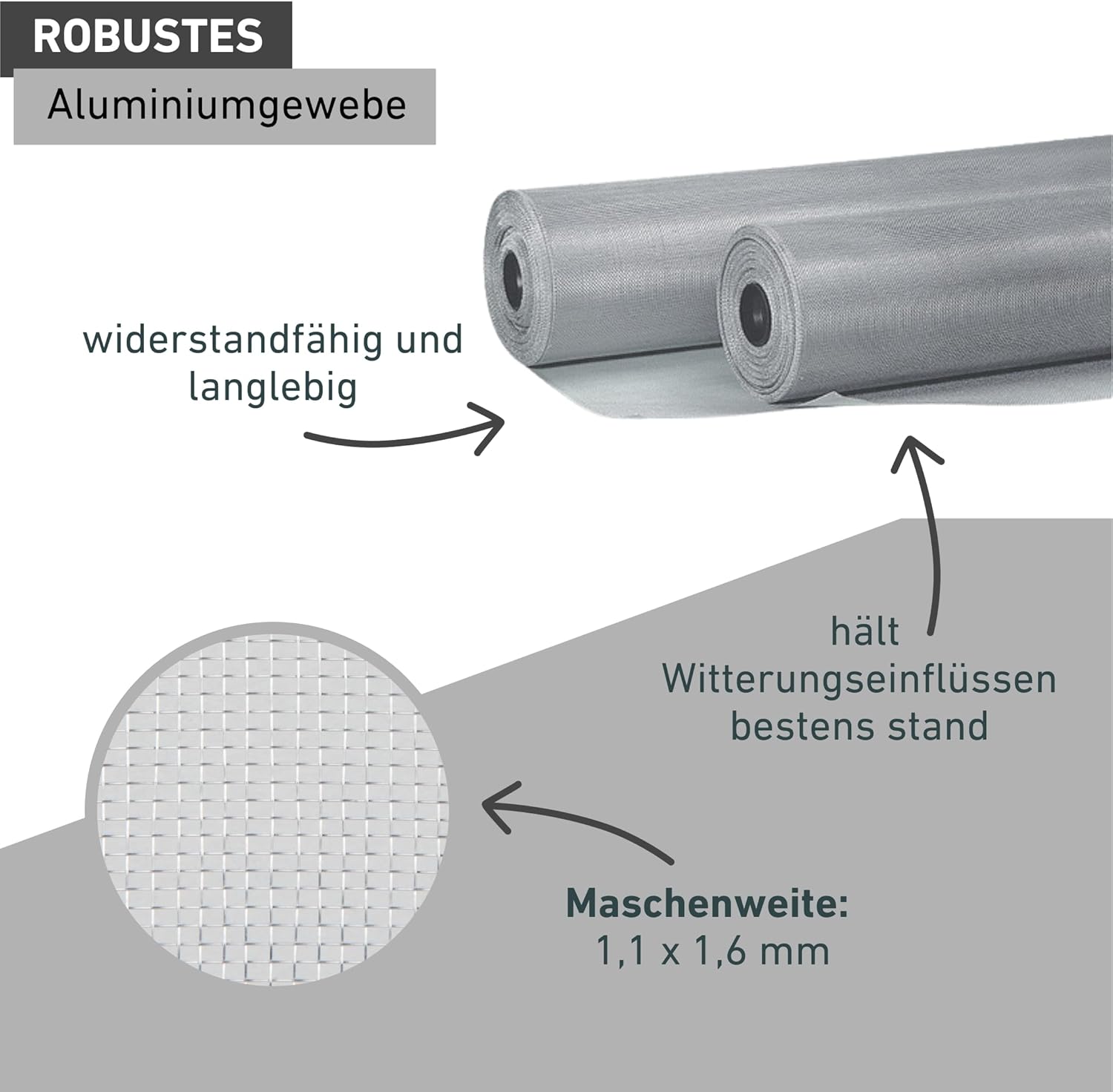

Figure 2: Illustration highlighting the robust aluminum fabric and its fine mesh structure (1.1 x 1.6 mm), designed for durability and weather resistance.
3. Safety Instructions
Please read and follow these safety instructions carefully to prevent injury and ensure proper handling of the product.
- Always wear appropriate protective gloves when handling and cutting the aluminum fabric to avoid cuts or abrasions.
- Keep the product out of reach of children.
- Ensure the work area is well-lit and clear of obstructions during installation.
- Dispose of any sharp off-cuts safely.
Figure 3: Safety reminder to wear gloves during installation to reduce the risk of injury.
4. Package Contents
The package contains the following item:
- 1 x Windhager Aluminum Insect Screen Fabric (100 x 250 cm)
Note: Additional accessories such as welting, fastening tape, and fastening clips are available separately and may be required for installation.
5. Installation Guide
The Windhager Aluminum Insect Screen Fabric is versatile and can be adapted to various applications, particularly for cellar and roof windows. The installation method will depend on your specific frame or opening.
5.1 Preparation
- Measure the exact dimensions of the opening where the insect screen will be installed.
- Ensure the surface around the opening is clean and dry.
- Gather necessary tools: measuring tape, sharp scissors or utility knife, protective gloves, and appropriate fastening materials (e.g., welting, fastening tape, or clips, sold separately).
5.2 Cutting the Fabric
- Lay the aluminum fabric flat on a clean, stable surface.
- Using your measurements, carefully mark the cutting lines on the fabric.
- Wearing protective gloves, cut the fabric to the required size using sharp scissors or a utility knife. Ensure cuts are straight and precise for a neat fit.
5.3 Fastening the Fabric
Depending on your chosen fastening method:
- Using Welting (Keder): If your frame has a groove, insert the welting around the edges of the cut fabric and press it firmly into the groove of the frame.
- Using Fastening Tape: Apply self-adhesive fastening tape (e.g., hook-and-loop tape) to the frame and the corresponding side to the edges of the fabric. Press firmly to secure.
- Using Fastening Clips: Position the fabric over the opening and secure it with fastening clips around the perimeter, ensuring even tension.
Ensure the fabric is taut and free of wrinkles for optimal performance.
Figure 4: The insect screen fabric is suitable for various applications, including cellar and roof windows, providing protection against leaves, pests, and dirt.
6. Usage
Once installed, the Windhager Aluminum Insect Screen Fabric provides continuous, passive protection. It allows for ventilation while preventing insects, leaves, and debris from entering your living spaces.
- Enjoy undisturbed sleep without mosquito bites.
- Cook, eat, and ventilate your home without unwanted pests.
- Maintain a cleaner environment by blocking dirt and leaves.
Figure 5: The insect screen protects your home from insects and crawling creatures, allowing for undisturbed living and peaceful sleep.
7. Care and Maintenance
To ensure the longevity and effectiveness of your Windhager Aluminum Insect Screen Fabric, follow these simple maintenance guidelines:
- Cleaning: Periodically clean the fabric with a soft brush or a damp cloth to remove dust, pollen, and light debris. For stubborn dirt, a mild soap solution can be used, followed by rinsing with clean water.
- Inspection: Regularly inspect the fabric for any signs of damage, such as tears or holes. Small damages can often be repaired with a patch kit designed for insect screens.
- Avoid Harsh Chemicals: Do not use abrasive cleaners, strong solvents, or stiff brushes, as these can damage the aluminum mesh.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Insects are still entering. | Gaps around the edges of the screen; tears or holes in the fabric. | Ensure the fabric is securely fastened around the entire perimeter. Inspect for damage and repair or replace if necessary. |
| Fabric appears loose or wrinkled. | Insufficient tension during installation; improper fastening. | Re-tension the fabric and re-secure the fastening points, ensuring even tension across the entire surface. |
| Fabric is difficult to cut or handle. | Dull cutting tools; not wearing gloves. | Use sharp scissors or a new utility knife blade. Always wear protective gloves. |
9. Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Windhager |
| Model Number | 03621 |
| Material | Aluminum |
| Color | Silver |
| Product Dimensions | 100 x 250 cm (approx. 100.5 x 4.5 x 4.5 cm packaged) |
| Item Weight | 319 g |
| Mesh Size | 1.1 x 1.6 mm |
| Form | Rectangular |
10. Warranty and Support
Windhager stands by the quality of its products. For specific warranty information, please refer to the terms and conditions provided at the point of purchase or on the official Windhager website.
For further assistance with assembly, detailed technical information, or step-by-step installation guides, please visit the Windhager online advisor. This resource offers comprehensive support to help you find the ideal insect protection solution for your needs.
You can find more information and support at the official Windhager store: Windhager Home & Garden Store
