G Green Drain Waterless Trap Seal GD3 - 3 Inch Instruction Manual

1. Product Overview

The G Green Drain Waterless Trap Seal GD3 is designed to prevent sewer gases, odors, and pests from entering living or working spaces through floor drains. It provides a reliable, waterless seal without relying on a traditional water trap, making it ideal for areas where drains may dry out.

Figure 1: G Green Drain Waterless Trap Seal GD3

Key Features:

• Designed for pipes measuring 68-80 mm (3 inches) in diameter.
• Features a 3-inch connection and 51 mm height.
• Provides a flow rate of 34 GPM.
• Prevents sewer gases and odors from entering the space.
• Acts as a barrier against pests.
• Eliminates the need for a water trap seal, reducing water evaporation issues.

Components:

The Green Drain Waterless Trap Seal consists of an outer anchoring ring, a high-quality ABS housing, and flexible silicone skirts that create the seal.

Figure 2: Exploded view showing outer anchoring, ABS housing, and silicone skirts.

2. Specifications

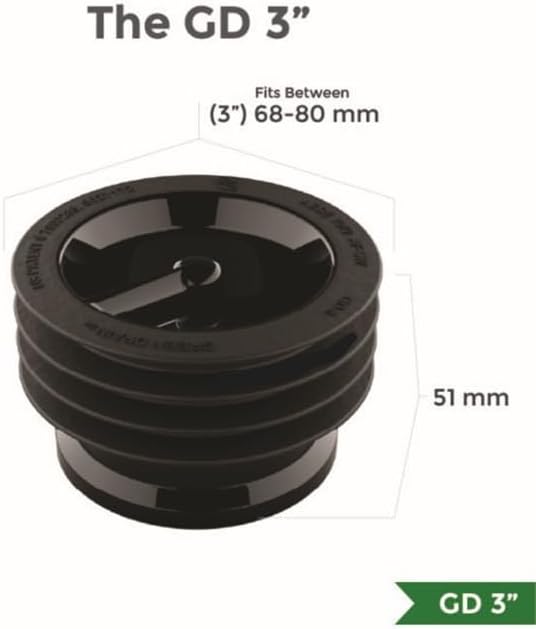

Figure 3: Green Drain GD3 showing 3-inch (68-80mm) diameter and 51mm height.

3. Installation

The G Green Drain Waterless Trap Seal is designed for simple installation without special tools. Ensure the drain pipe is clean and free of obstructions before installation.

1. Remove Grate: Carefully remove the existing drain grate from the floor drain.
2. Insert Green Drain: Insert the Green Drain into the pipe opening.
3. Recess into Pipe: Push the Green Drain 2-4 inches into the physical pipe. Use a screwdriver to gently push down through the center of the Green Drain to ensure the silicone skirt is properly seated and fully open within the drain.
4. Close Grate: Replace the drain grate.

Figure 4: Visual guide for Green Drain installation.

Installation Demonstration:

4. Operating Principles

The Green Drain Waterless Trap Seal operates on a simple, passive principle. Its flexible silicone skirts remain closed, forming a tight seal against gases and pests. When water flows into the drain, the pressure of the water pushes the skirts open, allowing drainage. Once the water has passed, the skirts return to their closed position, maintaining the seal.

Figure 5: Green Drain installed in a floor drain, illustrating its function.

Operation Demonstration:

5. Maintenance

The G Green Drain Waterless Trap Seal is designed to be a low-maintenance solution. Due to its waterless design, it eliminates issues related to trap primers or dried-out P-traps. Regular maintenance typically involves ensuring the drain area is clear of large debris that could obstruct the silicone skirts.

• Periodically check the drain opening for any accumulated hair, lint, or other debris that might prevent the silicone skirts from closing completely.
• If cleaning is necessary, carefully remove the drain grate and gently clean around the Green Drain with a brush or cloth. Avoid using harsh chemicals that could damage the silicone material.

6. Troubleshooting

Slow Drainage:

• Check for Obstructions: Ensure there is no debris (hair, lint, etc.) caught in the silicone skirts or the drain pipe itself. Remove the drain grate and inspect the Green Drain.
• Recess Depth: Verify that the Green Drain is recessed 2-4 inches into the drain pipe. If it is too shallow, it might restrict water flow.
• Pipe Condition: If the issue persists, the problem might be further down the plumbing system, unrelated to the Green Drain. Consult a plumber if necessary.

Persistent Odors:

• Proper Seating: Ensure the Green Drain is fully seated and the silicone skirts are not obstructed, allowing them to close completely. Push down gently with a screwdriver to confirm proper seating.
• Correct Size: Verify that the correct size Green Drain has been installed for your pipe diameter (68-80 mm for GD3). An incorrect size may lead to an incomplete seal.
• Other Odor Sources: If odors persist, investigate other potential sources of sewer gas leaks in the area, such as other drains, toilet seals, or plumbing vents.

Loose Fit:

• Verify Diameter: Double-check the inner diameter of your drain pipe against the specifications for the GD3 (68-80 mm). If the pipe is larger, a different size Green Drain may be required.
• Secure Installation: Ensure the Green Drain is pushed firmly into the pipe. The outer anchoring ribs are designed to create a snug fit.

7. Warranty Information

Specific warranty details for the G Green Drain Waterless Trap Seal GD3 are not provided in the product information. Please refer to the manufacturer's official website or contact their customer service for current warranty terms and conditions.

8. Support

For further assistance, technical support, or inquiries regarding the G Green Drain Waterless Trap Seal GD3, please visit the official G Green Drain website or contact their customer support channels. Contact information is typically available on the product packaging or the manufacturer's website.

Figure 6: Product packaging, which may contain additional support information.
