1. Introduction
This manual provides essential instructions for the safe and efficient installation, operation, and maintenance of the Emerson 7001616-J000 1400W Server Power Supply. This power supply unit (PSU) is designed for integration into server systems, providing stable and reliable power to critical components. Please read this manual thoroughly before proceeding with any installation or operation.
2. Safety Information
Always observe the following safety precautions to prevent injury and damage to the equipment:
- Ensure the server system is completely powered off and disconnected from the main power source before installing or removing the power supply.
- Do not open the power supply casing. There are no user-serviceable parts inside, and dangerous voltages are present.
- Handle the power supply with care to avoid dropping or physical damage.
- Install the power supply in a well-ventilated area to prevent overheating.
- Use only compatible power cables and connectors.
- If any smoke, unusual odors, or abnormal noises are detected, immediately disconnect power and contact qualified service personnel.
3. Setup and Installation
Follow these steps for proper installation of the Emerson 7001616-J000 Server Power Supply:
- Preparation: Power down the server completely and unplug all power cords from the wall outlet. Open the server chassis according to the server manufacturer's instructions.
- Locate PSU Bay: Identify the designated power supply bay within your server chassis. If replacing an existing PSU, carefully remove the old unit.
- Insert PSU: Gently slide the Emerson 7001616-J000 power supply into the bay. Ensure it is fully seated and aligned with the mounting points.
- Secure PSU: Secure the power supply using the screws or latching mechanisms provided by your server chassis.
- Connect Cables: Connect the necessary power cables from the PSU to the server's motherboard, hard drives, and other components. Refer to your server's manual for specific cable routing and connection points.
- Close Chassis: Once all connections are secure, close the server chassis.
- Connect AC Power: Plug the AC power cord into the power supply's input receptacle and then into a grounded electrical outlet.
4. Operating Instructions
Once installed, the Emerson 7001616-J000 power supply operates automatically when the server is powered on. It provides continuous and stable power to the server components.
- Power On: After connecting the AC power cord, press the power button on your server to initiate startup.
- Status Indicators: Some server systems or power supplies may feature LED indicators to show operational status (e.g., green for normal operation, amber for fault). Consult your server's documentation for specific indicator meanings.
- Power Off: To power off the server, follow the operating system's shutdown procedure, then press and hold the server's power button if necessary. For complete power disconnection, unplug the AC power cord from the wall outlet.
5. Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your power supply:
- Dust Removal: Periodically inspect the power supply's fan and ventilation grilles for dust accumulation. Use compressed air to gently clear dust from these areas. Ensure the server is powered off and unplugged before cleaning.
- Cable Inspection: Check all power cables connected to the PSU for any signs of wear, fraying, or loose connections. Replace damaged cables immediately.
- Environmental Conditions: Ensure the server operates within recommended temperature and humidity ranges. Excessive heat or moisture can degrade power supply performance and lifespan.
- Firmware Updates: While the PSU itself typically does not have user-updatable firmware, ensure your server's system firmware (BIOS/UEFI) is up to date, as it can affect power management.
6. Troubleshooting
If you encounter issues with your power supply, consider the following basic troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Server does not power on. | No AC power, loose connections, faulty PSU. | Verify AC power cord is securely plugged into both the PSU and a working wall outlet. Check all internal power connections. If problem persists, the PSU may be faulty. |
| Server powers on but shuts down unexpectedly. | Overheating, unstable power, faulty PSU. | Ensure adequate ventilation. Check for dust buildup. Verify stable AC power source. If issues continue, the PSU may be failing. |
| Unusual noises or smells from PSU. | Internal component failure. | Immediately power off the server and disconnect AC power. Do not attempt to repair. Contact qualified service personnel. |
If these steps do not resolve the issue, contact your server manufacturer or a qualified technician for further assistance.

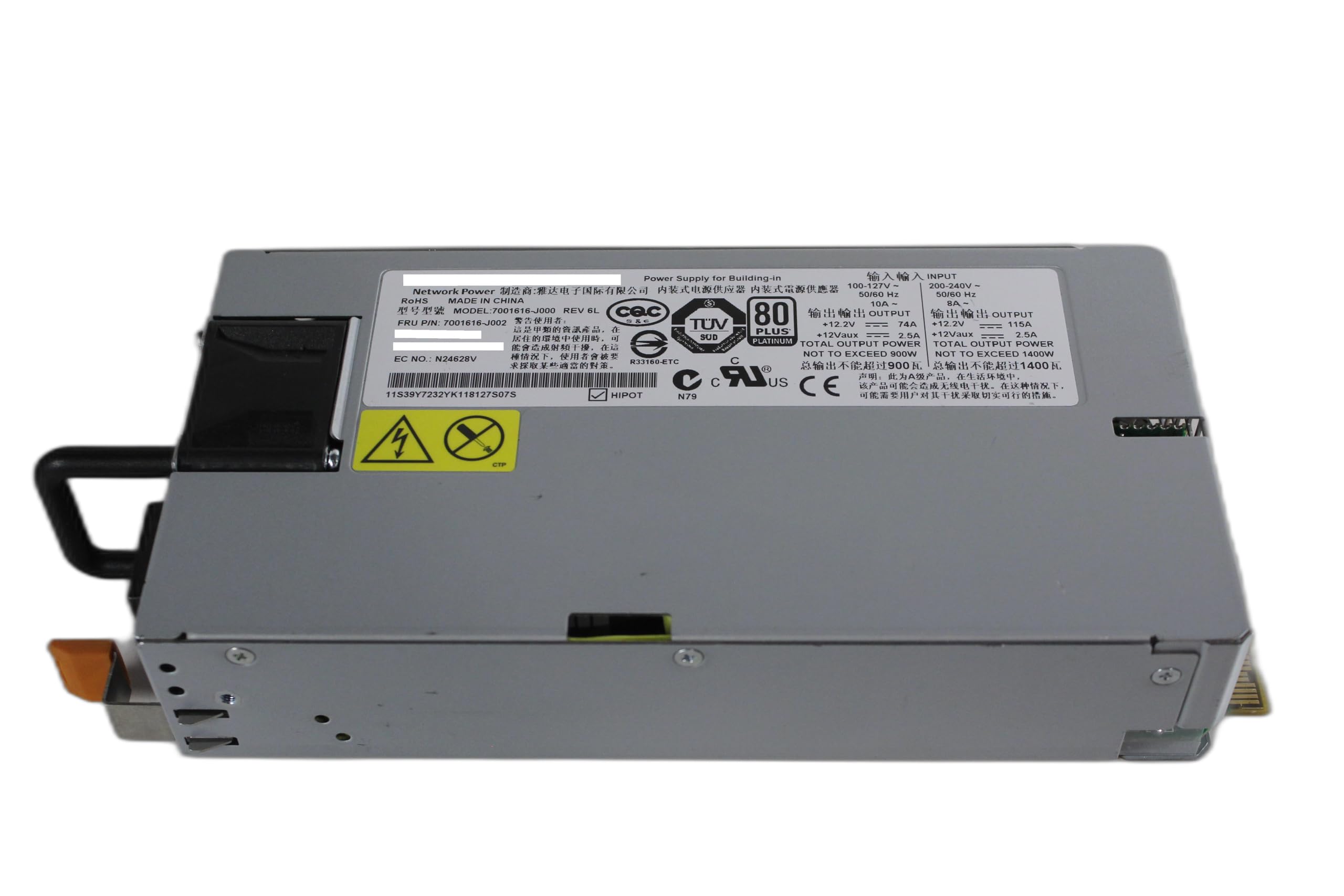

7. Specifications
The following table details the technical specifications for the Emerson 7001616-J000 1400W Server Power Supply:
| Feature | Detail |
|---|---|
| Model Number | 7001616-J000 |
| FRU P/N | 7001616-J002 |
| Part Numbers | 39Y7232, 39Y7233 |
| Brand | Emerson |
| Input Voltage Range 1 | 100-127V~, 50/60 Hz, 10A |
| Input Voltage Range 2 | 200-240V~, 50/60 Hz, 8A |
| Output Power (Total) | Up to 1400W (at 200-240V input) |
| Output Voltage +12.2V | 74A (at 100-127V input), 115A (at 200-240V input) |
| Output Voltage +12Vaux | 2.5A |
| Efficiency Rating | 80 PLUS Platinum |
| Item Weight | Approximately 1 pound |
| Manufacturer | IBM (as listed) |
| UPC | 791398644166 |
8. Warranty and Support
For warranty information and technical support, please refer to the documentation provided with your server system or contact the original seller or manufacturer. Keep your purchase receipt as proof of purchase.
