LUMEX Patriot US0208PL Semi-Electric Homecare Bed User Manual

1. Introduction

This manual provides essential information for the safe and effective use of your LUMEX Patriot US0208PL Semi-Electric Homecare Bed. Please read all instructions carefully before assembly, operation, or maintenance. Retain this manual for future reference.

The LUMEX Patriot Semi-Electric Bed is designed to provide comfort and support for individuals requiring homecare. It features a quiet motor for smooth operation and allows for independent adjustment of the head and foot sections.

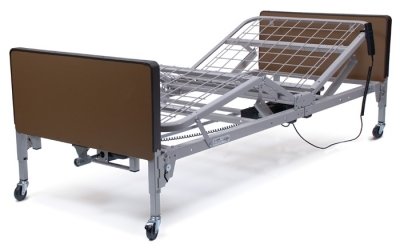

Figure 1: LUMEX Patriot Semi-Electric Homecare Bed with high-impact plastic bed ends. This image shows the overall structure of the bed, including the frame and the plastic head and foot boards.

2. Safety Information

WARNING: Failure to follow these safety instructions could result in serious injury or damage to the product.

• Always ensure the bed is on a level surface and the casters are locked when the bed is stationary.
• Do not exceed the maximum patient weight capacity of 350 lbs (158 kg). The bed's structural weight capacity is 450 lbs (204 kg).
• Keep hands and feet clear of moving parts during operation.
• Ensure all electrical cords are routed safely to prevent tripping hazards or damage.
• Do not operate the bed if any part is damaged or missing. Contact customer support for replacement parts.
• This bed is intended for indoor use only.
• Regularly inspect the bed for signs of wear, loose fasteners, or damage.

3. Setup and Assembly

The LUMEX Patriot Semi-Electric Bed is designed for easy assembly, typically requiring five main components. It is recommended that two people assemble the bed.

3.1 Unpacking

• Carefully remove all components from the packaging.
• Verify that all parts are present and undamaged. Refer to the packing list.
• Dispose of packaging materials responsibly.

3.2 Assembly Steps

1. Position the main bed frame in the desired location. Ensure adequate space around the bed for operation and access.
2. Attach the head section and foot section to the main frame. Ensure they are securely fastened according to the manufacturer's instructions.
3. Install the high-impact plastic bed ends onto the head and foot sections. These typically slide into place or attach with simple locking mechanisms.
4. Connect the motor unit to the bed frame and plug it into a standard electrical outlet. Ensure the power cord is not pinched or strained.
5. Connect the hand control unit to the motor unit.
6. Test all functions of the bed using the hand control before initial use.

4. Operating Instructions

The bed's head and foot sections can be adjusted using the hand control unit.

4.1 Hand Control Operation

• The hand control allows for simultaneous or independent adjustment of the head and foot sections.
• Press and hold the designated buttons on the hand control to raise or lower the head section.
• Press and hold the designated buttons on the hand control to raise or lower the foot section.
• Release the button to stop movement at the desired position.

4.2 Emergency Lowering During Power Failure

In the event of a power failure, the motor unit includes a feature to lower both the head and foot sections using a single standard 9-volt battery.

1. Locate the emergency lowering mechanism on the motor unit (refer to the motor unit's specific diagram if available).
2. Insert a fresh 9-volt battery into the designated compartment.
3. Activate the emergency lowering function as indicated on the motor unit or in its specific instructions. This will allow the head and foot sections to be lowered manually or via a temporary power supply from the battery.
4. Remove the 9-volt battery after use to prevent discharge.

5. Maintenance and Care

Proper maintenance ensures the longevity and safe operation of your bed.

5.1 Cleaning

• Regularly wipe down all surfaces with a dry cloth.
• For more thorough cleaning, use a mild, non-abrasive cleaner and a damp cloth, then dry thoroughly.
• Do not use harsh chemicals, solvents, or abrasive cleaning pads, as these can damage the finish or components.
• Ensure no liquids enter the motor unit or hand control.

5.2 Inspection

• Periodically check all fasteners (bolts, screws) to ensure they are tight. Do not overtighten.
• Inspect the power cord and hand control cable for any signs of damage, fraying, or cuts. If damaged, discontinue use and contact customer support.
• Ensure the casters roll freely and the locking mechanisms function correctly.
• Check for any unusual noises during operation, which may indicate a need for service.

6. Troubleshooting

If you encounter issues with your LUMEX Patriot Semi-Electric Bed, refer to the following common solutions:

If the problem persists after attempting these solutions, please contact LUMEX customer support.

7. Specifications

8. Warranty and Support

For warranty information, please refer to the documentation provided at the time of purchase or contact LUMEX customer service directly. LUMEX is committed to providing quality products and support.

If you have any questions, require assistance with assembly, operation, or troubleshooting, or need to order replacement parts, please contact LUMEX customer support:

• Manufacturer: Lumex
• Website: www.grahamfield.com (LUMEX is a Graham-Field brand)
• Contact Information: Refer to the official Graham-Field website for the most current contact details, including phone numbers and email support.
