Rizoma Zero 11 Alu LED Turn Signal User Manual

1. Introduction

Thank you for choosing the Rizoma Zero 11 Alu LED Turn Signal. This compact and high-quality indicator is designed to enhance the visibility and aesthetics of your motorcycle. Crafted from solid aluminum and featuring efficient 12V-13W LED lighting, this product ensures durability and optimal performance. This manual provides essential information for the safe installation, operation, and maintenance of your new turn signal.

2. Safety Information

Please read all safety instructions carefully before installation and use. Failure to follow these instructions may result in injury or damage to the product or motorcycle.

• Electrical Safety: Always disconnect the motorcycle's battery before performing any electrical work. Ensure all wiring connections are properly insulated to prevent short circuits and electrical hazards.
• Professional Installation: If you are unsure about any part of the installation process, it is recommended to seek assistance from a qualified motorcycle technician.
• Recycling of Bulbs: This product contains LED components. Refer to local regulations and guidelines for proper recycling information regarding electronic waste and lighting components.
• Cleaning of Bulbs: For information on how to clean and dispose of broken or damaged bulbs or LED units, consult relevant environmental and safety guidelines. Avoid direct contact with broken components.
• Secure Mounting: Ensure the turn signal is securely mounted and does not interfere with any moving parts of the motorcycle or obstruct the rider's view.

3. Package Contents

Please verify that all components are present and undamaged before proceeding with installation:

• Rizoma Zero 11 Alu LED Turn Signal unit
• Mounting hardware (e.g., nuts, washers, bolts - may vary by specific kit)
• Wiring (integrated with the unit)

4. Setup and Installation

This section outlines the general steps for installing the Rizoma Zero 11 Alu LED Turn Signal. Specific motorcycle models may require additional steps or specialized tools. Always refer to your motorcycle's service manual for detailed wiring diagrams and mounting points.

4.1. Tools Required

• Basic hand tools (e.g., screwdrivers, wrenches, wire strippers, crimping tool)
• Multimeter (optional, for verifying electrical connections)
• Electrical tape or heat shrink tubing

4.2. Installation Steps

1. Preparation: Ensure the motorcycle's ignition is turned off and the battery's negative terminal is disconnected to prevent accidental electrical shorts.
2. Remove Existing Turn Signal (if applicable): Carefully remove the old turn signal unit from its mounting point and disconnect its wiring.
3. Mounting the New Turn Signal: Securely attach the Rizoma Zero 11 Alu LED Turn Signal to the designated mounting point on your motorcycle. Use the provided mounting hardware and ensure it is firmly fixed and does not obstruct any moving parts or the rider's visibility.
4. Wiring Connections:
   • Identify the positive (+) and negative (-) wires from the turn signal unit.
   • Connect the turn signal's positive wire to the corresponding flasher relay output wire on your motorcycle.
   • Connect the turn signal's negative wire to a suitable ground point on the motorcycle's chassis or the motorcycle's ground wire.
   • Important Note for LED Turn Signals: Due to the low power consumption of LED turn signals, your motorcycle's original flasher relay may cause them to flash too quickly (hyper-flashing) or not at all. It may be necessary to install an LED-compatible flasher relay or inline load resistors (not included) to ensure proper flash rate. Consult a motorcycle electrical specialist if you encounter this issue.
   • Ensure all connections are clean, secure, and properly insulated using electrical tape or heat shrink tubing to protect against moisture and vibration.
5. Testing: Reconnect the motorcycle's battery. Turn on the ignition and test the turn signal functionality. Verify that it flashes correctly at the standard rate and is clearly visible from all angles.
6. Final Check: Double-check all mounting points and wiring connections to ensure everything is secure and tidy before riding.

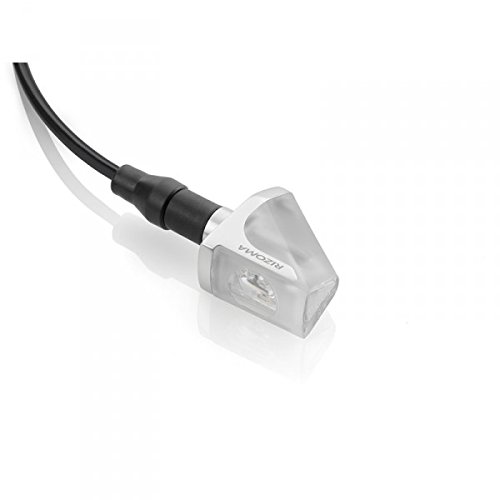

Figure 1: An angled view of the Rizoma Zero 11 Alu LED Turn Signal, showing its compact, angular design and the attached wiring. The housing appears to be made of brushed metal, and the lens is clear.

5. Operating Instructions

The Rizoma Zero 11 Alu LED Turn Signal operates in conjunction with your motorcycle's existing turn signal switch and flasher relay system.

• Activation: To activate the turn signal, simply move your motorcycle's turn signal switch to the desired left or right position. The LED unit will flash to indicate your intended direction.
• Deactivation: Return the turn signal switch to the neutral (off) position to deactivate the signal.
• Visibility: Always ensure your turn signals are clean and unobstructed for maximum visibility to other road users, especially in low light conditions or adverse weather.

6. Maintenance and Care

Proper maintenance will ensure the longevity and optimal performance of your Rizoma Zero 11 Alu LED Turn Signal.

• Cleaning: Clean the turn signal lens and aluminum housing regularly with a soft, damp cloth. For stubborn dirt, a mild soap solution can be used. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the lens or finish.
• Inspection: Periodically inspect the wiring connections for any signs of corrosion, fraying, or damage. Ensure the mounting hardware remains tight and secure. Vibrations from riding can sometimes loosen fasteners.
• LED Longevity: As this unit utilizes durable LED technology, traditional bulb replacement is generally not required under normal operating conditions. If the LED unit fails, the entire turn signal unit may need to be replaced.
• Environmental Exposure: While designed for outdoor use, prolonged exposure to extreme weather conditions (e.g., heavy rain, direct sunlight for extended periods) can affect the product's lifespan. Regular cleaning and inspection are recommended.

7. Troubleshooting

If you encounter issues with your Rizoma Zero 11 Alu LED Turn Signal, refer to the following common problems and solutions:

• Turn Signal Not Flashing or Not Lighting Up:
  • Check Wiring Connections: Ensure all wires are securely connected and properly insulated. Look for loose connections, corrosion, or damaged wires.
  • Verify Ground Connection: A poor ground connection can prevent the LED from lighting up. Ensure the negative wire is securely connected to a clean, unpainted metal part of the motorcycle chassis or the motorcycle's ground wire.
  • Check Flasher Relay: Standard thermal flasher relays may not work correctly with low-current LED turn signals, leading to no flash or hyper-flash. An LED-compatible flasher relay or load resistors may be required.
  • Inspect Fuses: Check the motorcycle's fuse box for any blown fuses related to the turn signal circuit.
  • Test Voltage: Use a multimeter to verify that 12V power is reaching the turn signal unit when activated.
• Turn Signal Flashing Too Fast (Hyper-Flashing):
  • This is a common issue when replacing incandescent bulbs with LEDs due to the lower electrical load. Install an LED-compatible flasher relay or inline load resistors (typically 6 Ohm, 50W) to correct the flash rate.
• Dim or Intermittent Flashing:
  • Poor Connections: Re-check all wiring connections for looseness or corrosion.
  • Insufficient Power: Ensure the motorcycle's electrical system is providing adequate voltage. Check battery charge and alternator output.
  • Internal Damage: If all external checks fail, there might be internal damage to the LED unit. In such cases, replacement may be necessary.

If you are unable to resolve the issue after following these steps, please contact Rizoma customer support or a qualified motorcycle technician.

8. Specifications

9. Warranty and Support

For detailed warranty information, product registration, and technical support, please refer to the official Rizoma website or contact Rizoma customer service directly. It is recommended to keep your purchase receipt as proof of purchase for any warranty claims.

Rizoma Official Website: www.rizoma.com
