1. Introduction
This manual provides essential information for the safe and effective operation, assembly, and maintenance of your TRUPER POMA-15 manual lawn mower. Please read these instructions carefully before using the product and retain them for future reference.
2. Safety Information
WARNING: Always follow basic safety precautions to reduce the risk of injury when using this product.
- Read all instructions before operating the lawn mower.
- Wear appropriate personal protective equipment, including sturdy footwear, long pants, and eye protection.
- Clear the mowing area of any objects such as rocks, sticks, wires, or toys that could be thrown by the blades.
- Keep children, pets, and bystanders away from the mowing area.
- Do not operate the mower on wet grass, as this can cause slipping and reduce cutting effectiveness.
- Inspect the mower before each use for loose parts, damage, or dull blades.
- Never attempt to clear jammed blades while the mower is in motion.
- Store the mower in a dry, secure location out of reach of children.
3. Product Overview
The TRUPER POMA-15 is a manual reel lawn mower designed for efficient and quiet lawn maintenance. Familiarize yourself with its main components:
- Handle: Vinyl-coated for comfortable grip.
- Blade Protection Cover: Metallic cover for blade safety.
- Rear Roller: Adjustable to 8 cutting height positions.
- Blades: 5 heat-treated steel blades for durability and clean cuts.
- Wheels: Solid aluminum and PVC wheels (241 mm).
Figure 1: Main components of the TRUPER POMA-15 Manual Lawn Mower.
4. Setup
The TRUPER POMA-15 requires some assembly before first use. It is recommended to have basic tool experience for assembly. Ensure all parts are present and undamaged before proceeding.
- Unpack Components: Carefully remove all parts from the packaging. Lay them out on a clean, flat surface.
- Handle Assembly: Attach the upper and lower handle sections. Secure them firmly using the provided bolts and nuts. Ensure all connections are tight to prevent loosening during operation.
- Attach Handle to Mower Body: Connect the assembled handle to the main mower body. Use the designated fasteners and tighten them securely.
- Initial Inspection: After assembly, check all nuts, bolts, and screws to ensure they are properly tightened. Loose fasteners can affect performance and safety.
5. Operating Instructions
- Prepare the Lawn: Before mowing, clear the area of any debris, stones, or objects that could damage the blades or be thrown.
- Adjust Cutting Height: The rear roller allows for 8 different cutting height positions. To adjust, locate the adjustment mechanism on the rear roller. Select the desired height by moving the roller to the appropriate notch. A higher setting is recommended for the first cut of the season or for very tall grass.

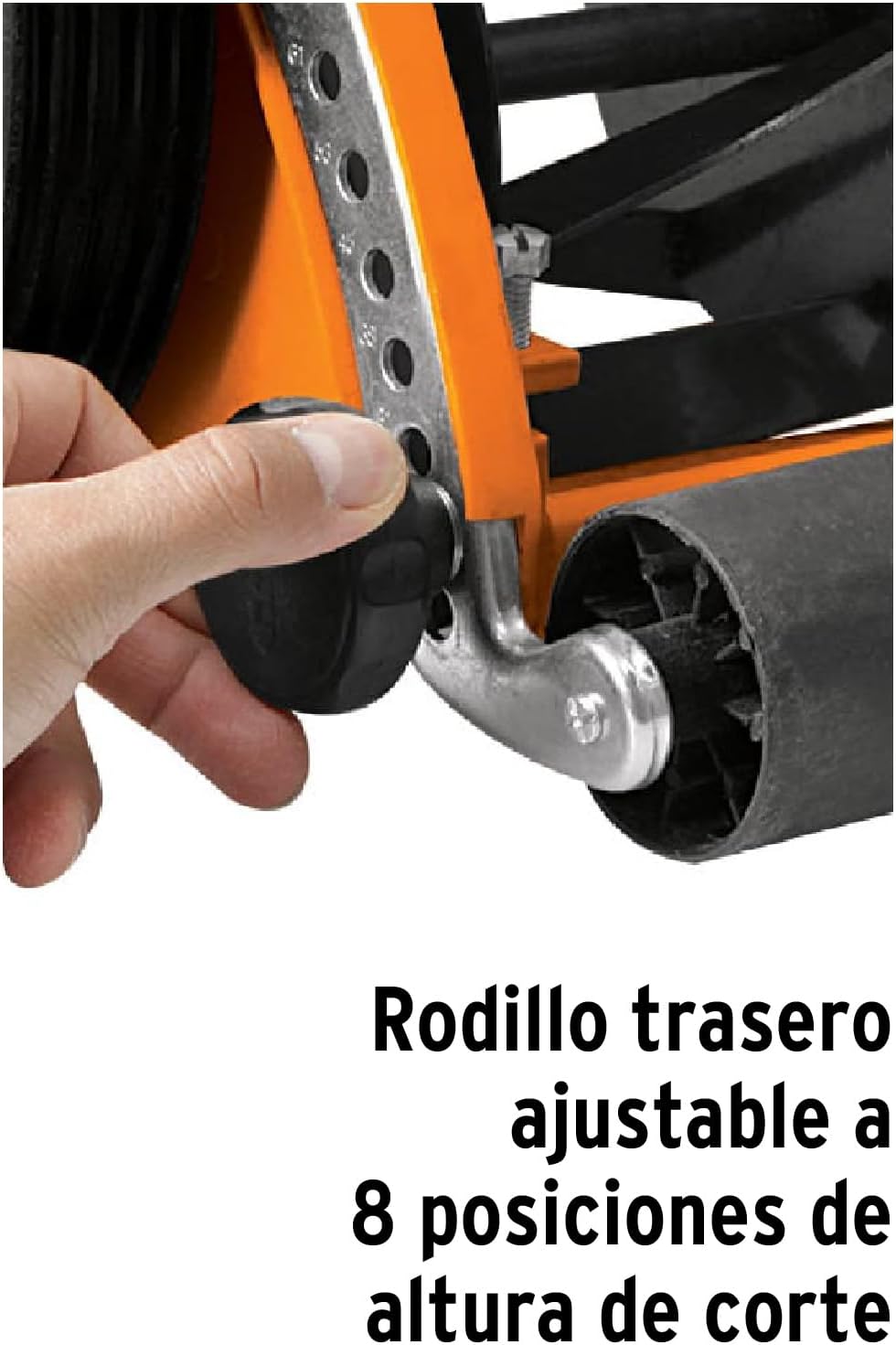

Figure 2: Adjusting the cutting height using the rear roller.
- Mowing Technique: Push the mower forward at a steady, comfortable pace. Overlap each pass slightly to ensure an even cut. For best results, mow when the grass is dry.
- Avoid Overloading: Do not attempt to cut excessively tall or dense grass in a single pass. If the grass is very long, raise the cutting height for the first pass and then lower it for a second pass.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your TRUPER POMA-15 lawn mower.
- Cleaning: After each use, clean grass clippings and debris from the blades, roller, and wheels. Use a stiff brush or cloth. Avoid using water directly on the blades to prevent rust.
- Blade Care: The 5 steel blades should be kept sharp for effective cutting. Inspect them regularly for dullness or damage. Sharpening should be done by a qualified professional or with appropriate tools.
- Lubrication: Periodically apply a light oil or silicone spray to moving parts, such as the wheel axles and blade cylinder bearings, to ensure smooth operation and prevent squeaking.
- Fastener Check: Regularly check all nuts, bolts, and screws for tightness. Re-tighten any loose fasteners to maintain structural integrity and safety.
- Storage: Store the mower in a clean, dry place, protected from the elements.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Mower not cutting effectively or leaving uneven patches. | Dull blades; incorrect cutting height; grass too tall or wet. | Sharpen blades; adjust cutting height; mow dry grass; make multiple passes on tall grass. |
| Difficulty pushing the mower. | Grass is too tall or dense; dull blades; wheels are stiff or jammed. | Raise cutting height; sharpen blades; clean and lubricate wheels/axles; clear any obstructions. |
| Squeaking noises during operation. | Lack of lubrication on moving parts (e.g., wheels, blade cylinder). | Apply a light oil or silicone spray to all moving metal-on-metal contact points. |
| Loose handle or components. | Fasteners have loosened over time. | Inspect and re-tighten all nuts, bolts, and screws. |
8. Specifications
- Model Number: POMA-15
- Brand: TRUPER
- Cutting Width: 15 inches (38 cm)
Figure 3: The TRUPER POMA-15 features a 15-inch cutting width.
- Blades: 5 heat-treated steel blades
- Cutting Height Positions: 8 (adjustable via rear roller)
- Power Source: Manual
- Materials: Vinyl (handle coating), Steel (blades, frame), Aluminum/PVC (wheels)
- Color: Orange
- Approximate Weight: 13.64 kg (30 lbs)
- Package Dimensions: 58.67 x 36.83 x 25.4 cm (23.1 x 14.5 x 10 inches)
9. Warranty and Support
For specific warranty details and customer support, please refer to the documentation provided with your purchase or contact TRUPER directly through their official website or authorized retailers. Protection plans may be available from third-party providers at the time of purchase.
For further assistance, you may visit the TRUPER store on Amazon.
