Introduction
This instruction manual provides detailed guidance for the assembly, operation, and maintenance of your Omega 2-Tier Black Starter Shelving Unit. Please read all instructions carefully before assembly and use to ensure safe and proper installation.
Safety Information
- Weight Capacity: Do not exceed the maximum weight capacity of 800 lbs (363 kg) per shelf. Overloading can cause structural failure and injury.
- Stable Surface: Always assemble and place the shelving unit on a flat, level, and stable surface to prevent tipping.
- Assembly: Ensure all components are securely fastened during assembly. Do not use power tools for tightening plastic clips as this may cause damage.
- Children: Keep children away from the shelving unit during assembly. Do not allow children to climb on or play with the unit.
- Maintenance: Regularly inspect the unit for loose parts or damage. Address any issues immediately.
Package Contents
Before beginning assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, contact Omega customer support.
- Shelf Posts (4)
- Wire Shelves (2)
- Shelf Clips (8 pairs, 16 individual pieces)
- Leveling Feet (4)
Figure 1: Leveling Foot. These adjustable feet ensure stability on uneven surfaces.
Setup and Assembly
This shelving unit is designed for tool-free assembly. Follow these steps carefully:
- Attach Leveling Feet: Screw the four leveling feet into the bottom of each shelf post. Tighten them securely.
- Mark Shelf Height: Determine the desired height for your first shelf. The posts have grooves at 1-inch intervals. Place a pair of shelf clips around each post at the desired height, ensuring the arrows on the clips point upwards and the clips snap together securely in a groove.
- Install First Shelf: Carefully slide one wire shelf down over the four posts, aligning the shelf collars with the installed shelf clips. Press down firmly on each corner of the shelf until it is securely seated over the clips. You may need to gently tap the shelf with a rubber mallet (not included) to ensure it is fully seated.
- Install Second Shelf: Repeat step 2 and 3 for the second shelf, positioning it at your desired height.
- Final Check: Once both shelves are installed, gently rock the unit to ensure stability. Adjust leveling feet if necessary to eliminate wobbling.

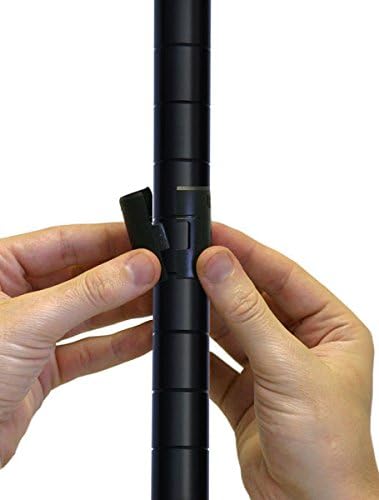

Figure 2: Attaching Shelf Clips. Ensure clips are fully seated in the post grooves.
Figure 3: Shelf Detail. The wire shelf rests securely on the plastic clips.
Operating Instructions
- Loading: Distribute weight evenly across each shelf. Avoid concentrating heavy items in one area.
- Capacity: Do not exceed the stated weight capacity of 800 lbs per shelf.
- Stability: For optimal stability, place heavier items on lower shelves.
- Adjusting Shelf Height: To adjust a shelf, remove all items from the shelf. Lift the shelf off the clips, remove the clips, reposition them at the new desired height, and then re-seat the shelf.
Maintenance
- Cleaning: Wipe the shelving unit with a dry cloth to remove dust and debris. For stubborn marks, use a damp cloth with mild soap and water, then dry thoroughly. Avoid abrasive cleaners.
- Inspection: Periodically check all shelf clips and leveling feet to ensure they are secure.
- Rust Prevention: While the unit has a durable finish, avoid prolonged exposure to excessive moisture to prevent rust.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Shelving unit is wobbly. | Uneven floor surface; leveling feet not adjusted; shelves not fully seated. | Adjust the leveling feet until the unit is stable. Ensure all shelves are pressed down firmly onto their clips. |
| Shelf does not sit level. | Shelf clips are not at the same height on all posts; clips not fully snapped into grooves. | Remove items from the shelf. Re-check and adjust the height of all four clips for that shelf, ensuring they are in the same groove number on each post. Ensure clips are fully snapped. |
| Difficulty installing a shelf. | Shelf clips not properly aligned or fully closed; posts are not perfectly vertical. | Ensure all clips are fully closed around the posts and aligned. Gently wiggle the shelf as you press down. Ensure posts are standing straight. |
Specifications
| Model Number | SU2-212436-B |
| Brand | Omega |
| Dimensions (D x W x H) | 21" x 24" x 36" (53.34 cm x 60.96 cm x 91.44 cm) |
| Number of Shelves | 2 |
| Weight Capacity per Shelf | 800 lbs (363 kg) |
| Material | Metal |
| Finish | Black |
| Item Weight | 21 lbs (9.53 kg) |
| Certifications | NSF Certified, ISO 9002 Registered Manufacturing |
Warranty and Support
For warranty information or technical support, please contact Omega Products Corporation directly. Refer to your purchase documentation for specific warranty terms and contact details.
Manufacturer: Omega Products Corporation
Website: Visit the Omega Store on Amazon
