1. Product Overview and Safety Information
The CMA Dishmachines 00200.70 is a replacement pump motor assembly designed for commercial dishwashers. This component is critical for the proper circulation of water within the dishwasher system. Installation should only be performed by qualified personnel familiar with commercial kitchen equipment and electrical systems.
Safety Precautions:
- Always disconnect power to the dishwasher before attempting any installation or maintenance.
- Ensure the replacement part matches the specifications of the original component.
- Wear appropriate personal protective equipment (PPE), such as gloves and eye protection.
- Verify all electrical connections are secure and correctly wired for 220V operation.
- Consult the main dishwasher manual for specific disassembly and reassembly procedures.
2. Installation Guide
This section outlines the general steps for installing the 00200.70 Pump Motor Assembly. Refer to your specific dishwasher model's service manual for detailed instructions and diagrams.
- Preparation: Ensure the dishwasher is completely drained and disconnected from all power sources. Turn off the water supply.
- Access the Pump: Depending on the dishwasher model, you may need to remove access panels or other components to reach the existing pump motor assembly.
- Disconnect Old Assembly: Carefully disconnect all electrical wiring and plumbing connections from the old pump motor assembly. Note the orientation and connection points for reassembly.
- Remove Old Assembly: Unmount and remove the old pump motor assembly from its housing.
- Install New Assembly: Position the new CMA Dishmachines 00200.70 Pump Motor Assembly into the designated location. Secure it using the appropriate mounting hardware.
- Reconnect Plumbing: Reattach all water inlet and outlet hoses to the new pump, ensuring all clamps and seals are secure to prevent leaks.
- Reconnect Electrical: Connect the electrical wiring to the new motor. Double-check that the 220V connections are correct and secure. Refer to the wiring diagram if available.
- Final Checks: Before restoring power, visually inspect all connections for security and proper alignment.

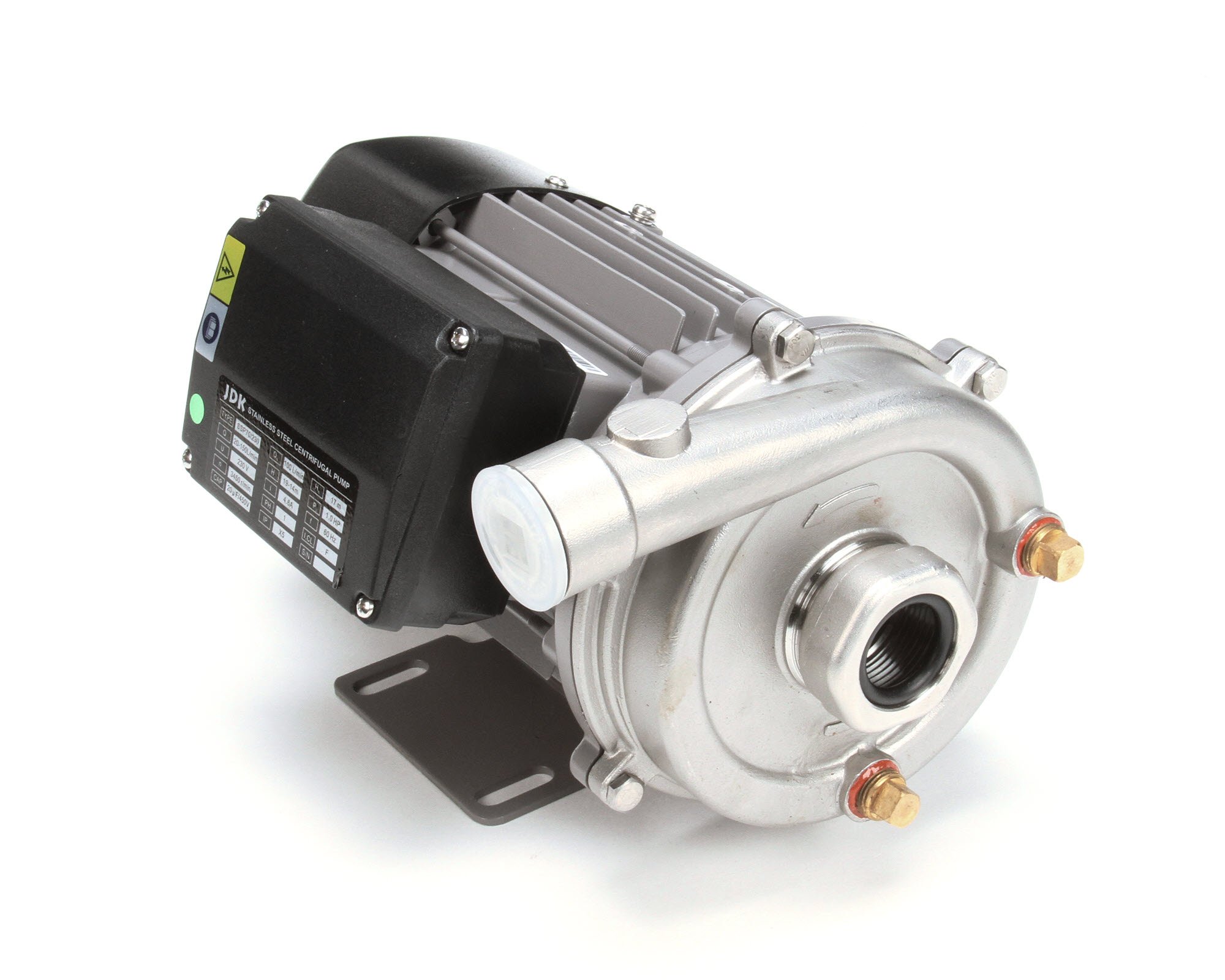

Image showing the CMA Dishmachines 00200.70 Stainless Steel Pump Motor Assembly. This assembly is designed for efficient water circulation in commercial dishwashers.
3. Functional Operation
The 00200.70 Pump Motor Assembly functions as the primary component for circulating wash and rinse water within the commercial dishwasher. Once installed and the dishwasher is powered on, the motor drives the pump impeller to draw water from the sump and distribute it through the spray arms.
Key Operational Aspects:
- Water Circulation: The pump ensures consistent water pressure and flow to effectively clean dishes.
- Motor Activation: The motor is activated by the dishwasher's control system during wash and rinse cycles.
- Voltage: Operates on a 220V electrical supply, as specified for commercial applications.
Proper operation of this assembly is crucial for the dishwasher's cleaning performance. Any unusual noises or reduced water pressure during cycles may indicate an issue with the pump motor.
4. Maintenance and Care
Regular maintenance helps extend the lifespan of the pump motor assembly and ensures optimal dishwasher performance. Always disconnect power before performing any maintenance.
- Regular Inspection: Periodically inspect the pump motor assembly for any signs of wear, corrosion, or damage. Check for loose connections or leaks around seals.
- Cleanliness: Ensure the area around the pump and sump is free from food debris and foreign objects that could obstruct the impeller or strain the motor.
- Electrical Connections: Verify that all electrical connections remain tight and free from corrosion.
- Seal Integrity: Check pump seals for any signs of leakage. Leaking seals can lead to motor damage.
- Ventilation: Ensure the motor has adequate ventilation if applicable, to prevent overheating.
5. Troubleshooting Common Issues
If the dishwasher is not performing as expected, the pump motor assembly may be a contributing factor. Consult this section for common issues and potential solutions. For complex problems, contact a qualified service technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump motor does not start | No power, faulty wiring, seized impeller, motor failure. | Check power supply and circuit breaker. Inspect wiring for damage. Check if impeller is obstructed. If motor is faulty, replacement may be necessary. |
| Unusual noises (grinding, humming) | Foreign object in pump, worn bearings, motor malfunction. | Disconnect power and inspect pump for obstructions. If bearings are worn, motor replacement may be required. |
| Reduced water pressure or poor cleaning | Clogged impeller, weak motor, air in pump, spray arm issues. | Inspect and clean pump impeller. Check for air leaks in plumbing. Ensure spray arms are not clogged. |
| Water leaks from pump area | Damaged seals, loose plumbing connections, cracked pump housing. | Inspect and replace damaged seals. Tighten all plumbing connections. If housing is cracked, the assembly needs replacement. |
6. Product Specifications
| Feature | Detail |
|---|---|
| Brand | CMA Dishmachines |
| Model Number | 00200.70 |
| Voltage | 220 Volts |
| Operating Frequency | 60 Hz |
| Material | Stainless Steel |
| Item Weight | 23.6 Pounds |
| Included Components | Pump |
| Recommended Use | Commercial dishwasher replacement part |
| Country Of Origin | China |
7. Warranty and Customer Support
For specific warranty information regarding the CMA Dishmachines 00200.70 Pump Motor Assembly, please refer to the documentation provided with your purchase or contact CMA Dishmachines directly. Warranty terms typically cover manufacturing defects.
If you require technical assistance, replacement parts, or have questions about the operation or maintenance of your CMA Dishmachines product, please contact CMA Dishmachines customer support through their official website or designated service channels.
Note: This manual provides general guidance. Always consult a qualified technician for complex repairs or installations.
